■ Structures
Material: Polypropylene film
Electrode: Metallized Vacuum Evaporated Layer
(With complexing jumbo-size Zinc and Aluminum )
Out Box: ABS/PBT Fire-proof plastic box(UL94 V-0)
Encapsulation: Fire-proof Epoxide Resin
Pin: With copper-clad steel leads or PVC Electronic Tread
■ Using area
Used for the Starting and Working of Single Phase
Motor with 50HZ/60HZ frequency AC in Power
Supplying.
■ Features:
Box type provides the identical outer appearance with good self=healing effect
Very low loss at high frequency,
With High insulation resistance
and Long life.
■ The file No. of UL:E305198
■ Outline Drawing
Pitch mm |
27.5 |
31.5 |
41.5 |
51.5 |
The Diameter of the Pin mm |
0.8 |
1.0 |
||
PVC Electronic Tread |
20#； 18#(UL94V-0) |
|||
Terminal |
Normal Type; 18#Single and Double Type; 250#Single and Double Type |
|||
■ Specifications
Climate Conditions |
-40--+70℃ |
Rated Voltage |
250VAC;350VAC;400VAC;450VAC |
Capacitance Range |
0.5µF--10µF |
Capacitance Tolerance |
（±5%）（±10%）(+10/-5)% |
Voltage Factor |
Between the Terminal and Terminal TV: 2.0UR （5S） |
Between the Terminal and Out Box TV: 2500VAC（5S） |
|

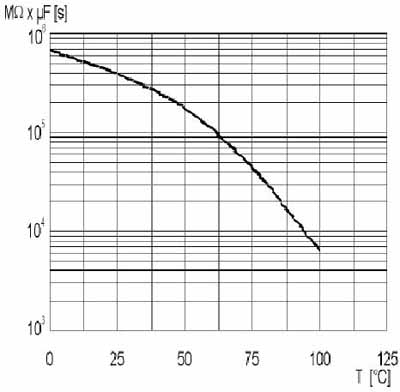

Insulation Resistance and Time Consistence |
IR≥4000S (MΩ.µF) At 100VDC |

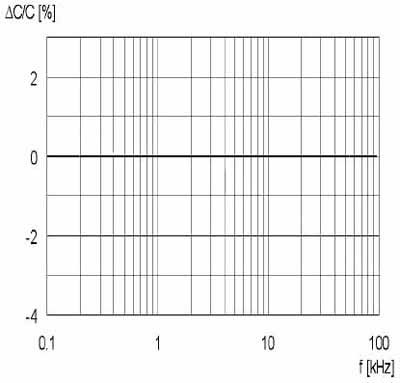

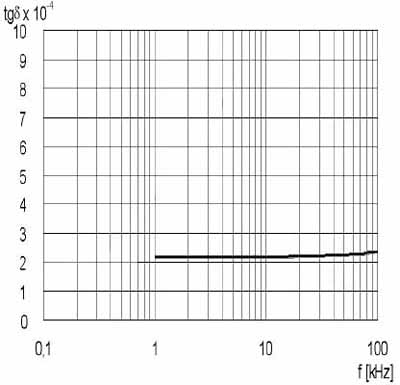

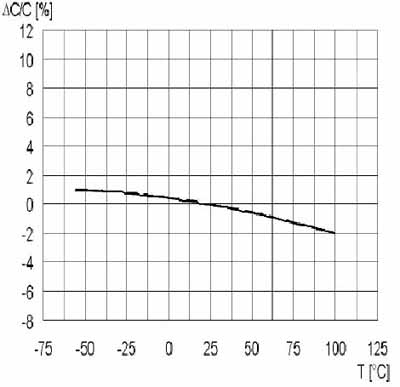

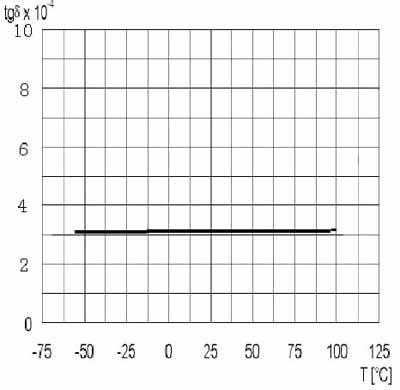

Dissipation Factor |
tgδ≤0.002 1KHz 20℃ |
Climate |
Temperature：40±2℃ |
Resistance |
+70℃，600Hr |
■ Outline Drawing
Explanation：
- Metallized Polypropylene Film
- Mental Spring Layer
- Copper-clad steel leads Or Electronic Thread
- Epoxide Resin
- Fire-proof plastic box
- ROHS Compliant
Products Type |
Items’ No. |
Dimensions
（mm） |
||||
µF Capacitance |
W±0.5 |
T ±0.5 |
H±0.5 |
P ±1.0 |
||
504 |
0.5 |
CB6504J(K)G3211200 |
32.0 | 11.0 | 20.0 | 27.5 |
105 |
1.0 |
CB6105J(K)G3211200 |
32.0 | 11.0 | 20.0 | 27.5 |
125 |
1.2 |
CB6125J(K)G3211200 |
32.0 | 11.0 | 20.0 | 27.5 |
155 |
1.5 |
CB6155J(K)G3211200 |
32.0 |
11.0 |
20.0 |
27.5 |
205 |
2.0 |
CB6205J(K)G3213230 |
32.0 |
13.0 |
23.0 |
27.5 |
225 |
2.2 |
CB6225J(K)G3213230 |
32.0 |
13.0 |
23.0 |
27.5 |
255 |
2.5 |
CB6255J(K)G3813220 |
38.0 |
13.0 |
22.0 |
31.0 |
305 |
3.0 |
CB6305J(K)G3814230 |
38.0 |
14.0 |
23.0 |
31.0 |
355 |
3.5 |
CB6355J(K)G3814230 |
38.0 |
14.0 |
23.0 |
31.0 |
405 |
4.0 |
CB6405J(K)G3816260 |
38.0 |
16.0 |
26.0 |
31.0 |
455 |
4.5 |
CB6455J(K)G3816260 |
38.0 |
16.0 |
26.0 |
31.0 |
505 |
5.0 |
CB6505J(K)G3818280 |
38.0 |
18.0 |
28.0 |
31.0 |
555 |
5.5 |
CB6555J(K)G3818280 |
38.0 |
18.0 |
28.0 |
31.0 |
605 |
6.0 |
CB6605J(K)G3818280 |
38.0 |
18.0 |
28.0 |
31.0 |
685 |
6.8 |
CB6685J(K)G3820300 |
38.0 |
20.0 |
30.0 |
31.0 |
705 |
7.0 |
CB6705J(K)G3820300 |
38.0 |
20.0 |
30.0 |
31.0 |
805 |
8.0 |
CB6805J(K)G3821310 |
38.0 |
21.0 |
31.0 |
31.0 |
905 |
9.0 |
CB6905J(K)G4820300 |
48.0 |
20.0 |
30.0 |
41.0 |
106 |
10.0 |
CB6106J(K)G4820300 |
48.0 |
20.0 |
30.0 |
41.0 |
350VAC |
||||||
504 |
0.5 |
CB6504J(K)H3211200 |
32.0 |
11.0 |
20.0 |
27.5 |
105 |
1.0 |
CB6105J(K)H3211200 |
32.0 |
11.0 |
20.0 |
27.5 |
125 |
1.2 |
CB6125J(K)H3212220 |
32.0 |
12.0 |
22.0 |
27.5 |
155 |
1.5 |
CB6155J(K)H3813220 |
38.0 |
13.0 |
22.0 |
31 |
205 |
2.0 |
CB6205J(K)H3814230 |
38.0 |
14.0 |
23.0 |
31 |
225 |
2.2 |
CB6225J(K)H3814230 |
38.0 |
14.0 |
23.0 |
31 |
255 |
2.5 |
CB6255J(K)H3815250 |
38.0 |
15.0 |
25.0 |
31 |
305 |
3.0 |
CB6305J(K)H3816260 |
38.0 |
16.0 |
26.0 |
31 |
355 |
3.5 |
CB6335J(K)H3818280 |
38.0 |
18.0 |
28.0 |
31 |
405 |
4.0 |
CB6405J(K)H3820300 |
38.0 |
20.0 |
30.0 |
31 |
455 |
4.5 |
CB6455J(K)H3821310 |
38.0 |
21.0 |
31.0 |
31 |
505 |
5.0 |
CB6505J(K)H3821310 |
38.0 |
21.0 |
31.0 |
31 |
555 |
5.5 |
CB6555J(K)H4820300 |
48.0 |
20.0 |
30.0 |
41 |
605 |
6.0 |
CB6605J(K)H4820300 |
48.0 |
20.0 |
30.0 |
41 |
705 |
7.0 |
CB6705J(K)H5022320 |
50.0 |
22.0 |
32.0 |
41 |
805 |
8.0 |
CB6805J(K)H5022320 |
50.0 |
22.0 |
32.0 |
41 |
905 |
9.0 |
CB6905J(K)H4825370 |
48.0 |
25.0 |
37.0 |
41 |
106 |
10 |
CB6106J(K)H4825370 |
48.0 |
25.0 |
37.0 |
41 |
400VAC/450VAC |
||||||
504 |
0.5 |
CB6504J(K)J3812220 |
38.0 |
12.0 |
22.0 |
31.0 |
105 |
1.0 |
CB6105J(K)J3814230 |
38.0 |
14.0 |
23.0 |
31.0 |
155 |
1.5 |
CB6155J(K)J3815250 |
38.0 |
15.0 |
25.0 |
31.0 |
205 |
2.0 |
CB6205J(K)J3818280 |
38.0 |
18.0 |
28.0 |
31.0 |
255 |
2.5 |
CB6255J(K)J3821310 |
38.0 |
21.0 |
31.0 |
31.0 |
305 |
3.0 |
CB6305J(K)J4820300 |
48.0 |
20.0 |
30.0 |
41.0 |
355 |
3.5 |
CB6355J(K)J4820300 |
48.0 |
20.0 |
30.0 |
41.0 |
405 |
4.0 |
CB6405J(K)J5022320 |
50.0 |
22.0 |
32.0 |
41.0 |
455 |
4.5 |
CB6455J(K)J5022320 |
50.0 |
22.0 |
32.0 |
41.0 |
505 |
5.0 |
CB6505J(K)J4825370 |
48.0 |
25.0 |
37.0 |
41.0 |
555 |
5.5 |
CB6555J(K)J4825370 |
48.0 |
25.0 |
37.0 |
41.0 |
605 |
6.0 |
CB6605J(K)J4825370 |
48.0 |
25.0 |
37.0 |
41.0 |
705 |
7.0 |
CB6705J(K)J5130400 |
51.0 |
30.0 |
40.0 |
41.0 |
755 |
7.5 |
CB6755J(K)J5130400 |
51.0 |
30.0 |
40.0 |
41.0 |
805 |
8.0 |
CB6805J(K)J5130400 |
51.0 |
30.0 |
40.0 |
41.0 |
905 |
9.0 |
CB6905J(K)J5828400 |
58.0 |
28.0 |
40.0 |
51.0 |
106 |
10 |
CB6106J(K)J5930420 |
59.0 |
30.0 |
42.0 |
51.0 |
Remark |
The rated voltage of 400VAC/450VACwith UL certification, the other voltage are in applying for the certification. |
|||||
P.S.:
All the dimensions above are for your reference, the real ones are according to our specification documents; Please contact with us if you have any other questions such as the Absolute Rating etc.
