UL1283
EN60384-14
GB/T14472-1998
■ Structures
Material: Polypropylene film
Electrode: Metallized Vacuum Evaporated Layer
Out Box: PBT Fire-proof plastic box(UL94 V-0)
Encapsulation: Fire-proof Epoxide Resin Pin: With copper-clad steel leads
■ Using area
Over line, to inhibit the Surge, fit for AC circuits etc
■ Features:
Small Size with good
self-healing effect .Have strong
moisture resistance and well
proof voltage.
■ Security Certifications
Authentication Mark |
Profile No. |
|
In Applying |
|
In Applying |
|
In Applying |
ENEC |
In Applying |
■ Structure

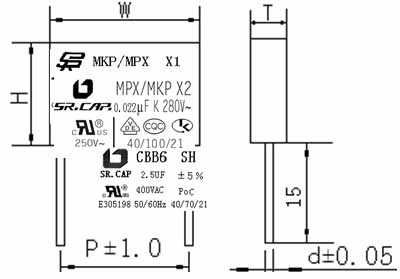

■ Outline Drawing
Pitch mm |
10 |
15 |
22.5 |
27.5 |
31.5 |
41.5 |
The Diameter of the Pin mm |
0.6 |
0.6/0.8 |
0.8 |
0.8 |
0.8 |
1.0 |
■ Specifications
Climate Conditions |
-40--+110℃ |
||||||||
Rated Voltage |
300VAC/440VAC |
||||||||
Capacitance Range |
0.0022µF--4.7µF |
||||||||
Capacitance Tolerance |
（±5%）；（±10%） |
||||||||
Voltage Proof |
2000VDC 5S |
||||||||
Insulation Resistance and Time Consistence |
≤0.33µF |
≥30000MΩ |
|||||||
＞0.33µF |
≥10000S（MΩ.µF） |
||||||||
Dissipation Factor |
＜1.0µF |
0.0015 10KHz |
20℃ |
||||||
≥1.0µF |
≤0.0010 1 KHz |
||||||||
Climate |
Temperature：40±2℃ |
There is no visible damage with the clearly mark. |
|||||||
Resistance |
+110℃，1000h |
||||||||
dv/dt（v/µs） |
Pitch |
10 |
15 |
22.5 |
27.5 |
31.5 |
41.5 |
||
dv/dt |
400 |
200 |
150 |
100 |
100 |
100 |
|||
■ Characteristic Graph

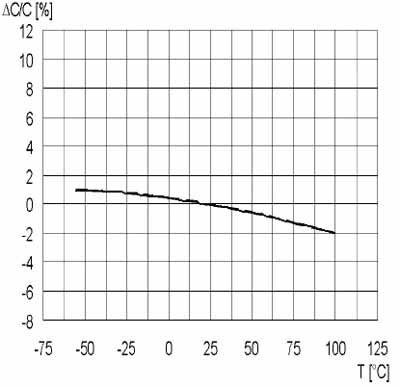

Capacitance and Temperature Graph

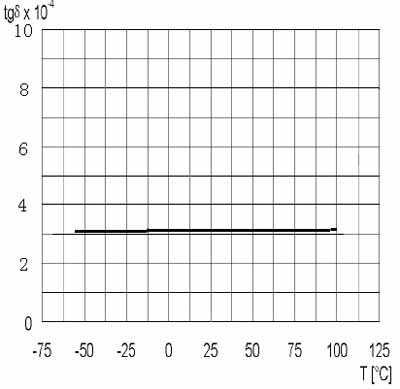

Dissipation Factor and Temperature Graph

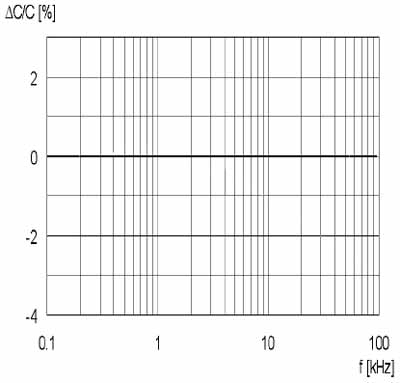

Capacitance and Frequency Graph

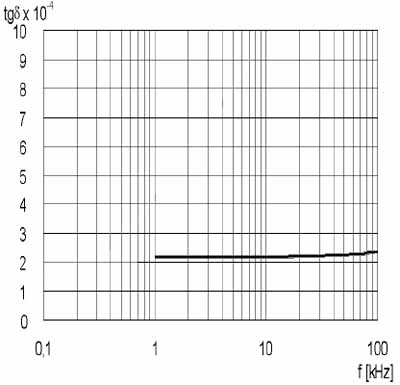

Dissipation Factor and Frequency Graph

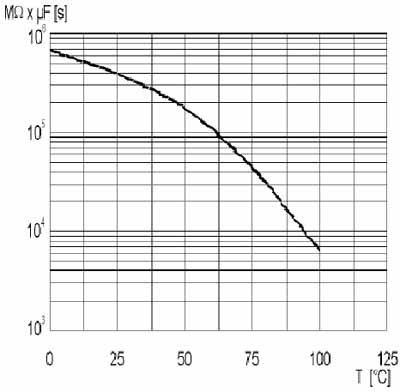

Insulation Resistance and Temperature Graph

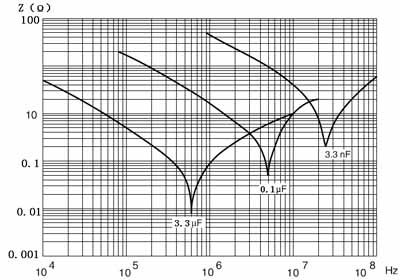

Impedance and Frequency Graph
MKP /MPX（X1）
Product Type |
Item’s No. |
Dimensions（mm） |
|||||
Capacitance µF |
W±0.5 |
H±0.5 |
T ±0.5 |
P ±1.0 |
d ±0.05 |
||
300VAC/440VAC |
|||||||
222 |
0.0022 |
|
18 |
11 |
5 |
15 |
0.6 |
272 |
0.0027 |
|
18 |
11 |
5 |
15 |
0.6 |
332 |
0.0033 |
|
18 |
11 |
5 |
15 |
0.6 |
392 |
0.0039 |
|
18 |
11 |
5 |
15 |
0.6 |
472 |
0.0047 |
|
18 |
11 |
5 |
15 |
0.6 |
562 |
0.0056 |
|
18 |
11 |
5 |
15 |
0.6 |
682 |
0.0068 |
|
18 |
11 |
5 |
15 |
0.6 |
822 |
0.0082 |
|
18 |
11 |
5 |
15 |
0.6 |
103 |
0.01 |
|
18 |
11 |
5 |
15 |
0.6 |
103 |
0.01 |
|
18 |
11 |
5 |
15 |
0.6 |
123 |
0.012 |
|
18 |
11 |
5 |
15 |
0.6 |
153 |
0.015 |
|
18 |
11 |
5 |
15 |
0.6 |
183 |
0.018 |
|
18 |
11 |
5 |
15 |
0.6 |
223 |
0.022 |
|
18 |
12 |
6 |
15 |
0.8 |
273 |
0.027 |
|
18 |
13.5 |
7.5 |
15 |
0.8 |
333 |
0.033 |
|
18 |
13.5 |
7.5 |
15 |
0.8 |
393 |
0.039 |
|
18 |
13.5 |
7.5 |
15 |
0.8 |
473 |
0.047 |
|
18 |
14.5 |
8.5 |
15 |
0.8 |
563 |
0.056 |
|
18 |
15.5 |
9.5 |
15 |
0.8 |
683 |
0.068 |
|
26.5 |
16.5 |
7 |
22.5 |
0.8 |
823 |
0.082 |
|
26.5 |
17 |
8.5 |
22.5 |
0.8 |
104 |
0.1 |
|
26.5 |
17 |
8.5 |
22.5 |
0.8 |
124 |
0.12 |
|
26.5 |
19 |
10 |
22.5 |
0.8 |
154 |
0.15 |
|
26.5 |
20 |
11 |
22.5 |
0.8 |
184 |
0.18 |
|
26.5 |
22 |
12 |
22.5 |
0.8 |
184 |
0.18 |
|
31.5 |
20 |
11 |
27.5 |
0.8 |
204 |
0.2 |
|
26.5 |
22 |
12 |
22.5 |
0.8 |
204 |
0.2 |
|
31.5 |
20 |
11 |
27.5 |
0.8 |
224 |
0.22 |
|
26.5 |
22 |
12 |
22.5 |
0.8 |
224 |
0.22 |
|
31.5 |
20 |
11 |
27.5 |
0.8 |
274 |
0.27 |
|
26.5 |
23 |
14 |
22.5 |
0.8 |
274 |
0.27 |
|
31.5 |
22 |
13 |
27.5 |
0.8 |
334 |
0.33 |
|
31.5 |
25 |
14 |
27.5 |
0.8 |
394 |
0.39 |
|
31.5 |
25 |
14 |
27.5 |
0.8 |
474 |
0.47 |
|
32 |
25.5 |
16 |
27.5 |
0.8 |
564 |
0.56 |
|
31 |
26 |
18 |
27.5 |
0.8 |
684 |
0.68 |
|
38 |
28 |
18 |
31.5 |
0.8 |
824 |
0.82 |
|
38 |
30 |
20 |
31.5 |
0.8 |
105 |
1 |
|
48 |
30 |
20 |
41 |
1.0 |
125 |
1.2 |
|
48 |
30 |
20 |
41 |
1.0 |
155 |
1.5 |
|
48 |
37 |
25 |
41 |
1.0 |
185 |
1.8 |
|
48 |
37 |
25 |
41 |
1.0 |
205 |
2 |
|
48 |
37 |
25 |
41 |
1.0 |
225 |
2.2 |
|
58 |
43 |
33 |
51 |
1.0 |
255 |
2.5 |
|
58 |
43 |
33 |
51 |
1.0 |
275 |
2.7 |
|
58 |
43 |
33 |
51 |
1.0 |
305 |
3 |
|
58 |
43 |
33 |
51 |
1.0 |
335 |
3.3 |
|
58 |
43 |
33 |
51 |
1.0 |
395 |
3.9 |
|
58 |
43 |
33 |
51 |
1.0 |
405 |
4 |
|
58 |
43 |
33 |
51 |
1.0 |
455 |
4.5 |
|
58 |
43 |
33 |
51 |
1.0 |
475 |
4.7 |
|
58 |
43 |
33 |
51 |
1.0 |
