CL233X

■ Reference Standard
GB/T7332-96（IEC384-2）

■ Structures
Material: Polyester film
Electrode: Metallized Vacuum Evaporated Layer
(Aluminum)
Enveloped with Fire-proof Epoxide Resin (UL94V-0) in the PBT
Fireproof plastic box.

■ Using area
DC and Low Pulse Circuit, widely using in Color
TV Set, programmemable exchanger and military completemachines etc.

■ Features:
Small Size with good self-healing effect.
Well outer looking with high reliable using

■ Specifications

Climate Conditions	-40--+85℃
VDC Rated Voltage	63V,100V;250V;400V
Capacitance Range	0.001µF-1.0µF
Capacitance Tolerance	±5% ±10%
Voltage Proof	1.6UR （5S）
Insulation Resistance and Time Consistence	≤0.33µF		UR＞100V	≥7500MΩ
			UR≤100V	≥3750 MΩ
	＞0.33µF		UR＞100V	2500S（MΩ.µF）
			UR≤100V	1250S（MΩ.µF）
Dissipation Factor	≤0.01 1kHz 20℃
Climate Category	Temperature：40±2℃ Humidity：93%RH Lasting Time：21 Days There is no visible damage with the clearly mark. Capacitance：△C/C≤5% Dissipation Factor（1KHz）：Increasing≤0.005 Insulation Resistance IR：≥50% of Rated Voltage
Resistance	+85℃，1000h Applying Voltage： 1.25*Rate Voltage Capacitance：△C/C≤5% Insulation Resistance IR：≥50% of Rated Voltage
dv/dt（v/µs）	Rated Voltage	63V		12
		250V		5
		400V		8

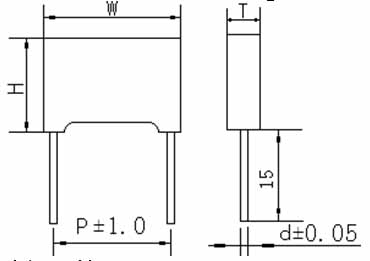

■ Outline Drawing

■ Structure

Explanation：

Metallized Polyester Film
Mental Spring Layer
Copper-clad steel leads
Epoxide Resin
PBT Fire-proof plastic box
ROHS Compliant

■ Characteristic Graph

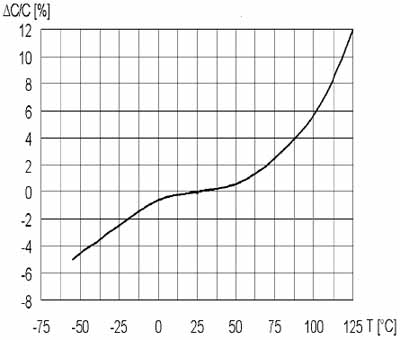

Capacitance and Temperature Graph

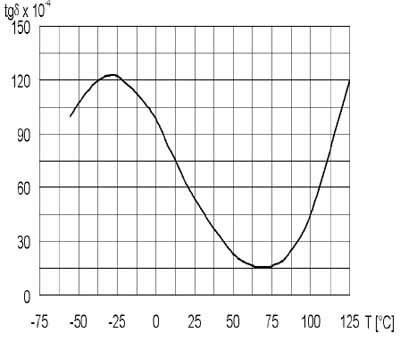

Dissipation Factor and Temperature Graph

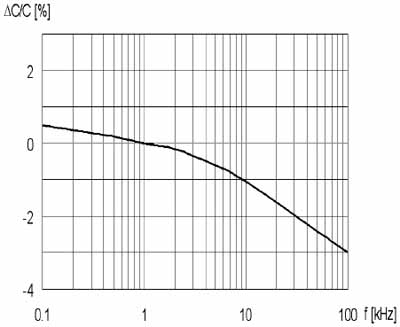

Capacitance and Frequency Graph

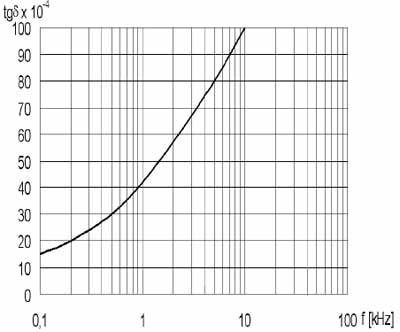

Dissipation Factor and Frequency Graph

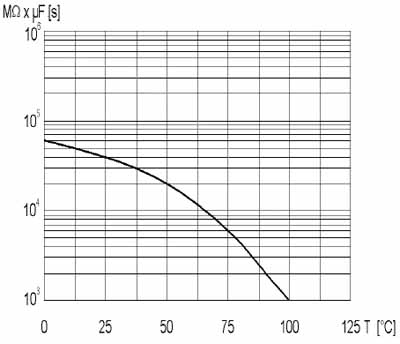

Insulation Resistance and Temperature Graph

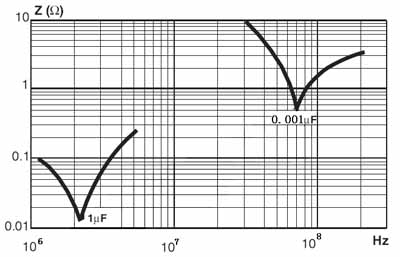

Impedance and Frequency Graph

■Dimension Lists
CL233X（MEM）

Product Type		Item’s No.	Dimensions（mm）
Capacitance µF		Item’s No.	WMax	T Max	H Max	P ±1.0
63VDC
102	0.001	MEM102J(K)0M10	7.2	2.5	6.5	5.0
122	0.0012	MEM122J(K)0M10	7.2	2.5	6.5	5.0
152	0.0015	MEM152J(K)0M10	7.2	2.5	6.5	5.0
182	0.0018	MEM182J(K)0M10	7.2	2.5	6.5	5.0
222	0.0022	MEM222J(K)0M10	7.2	2.5	6.5	5.0
272	0.0027	MEM272J(K)0M10	7.2	2.5	6.5	5.0
332	0.0033	MEM332J(K)0M10	7.2	2.5	6.5	5.0
392	0.0039	MEM392J(K)0M10	7.2	2.5	6.5	5.0
472	0.0047	MEM472J(K)0M10	7.2	2.5	6.5	5.0
562	0.0056	MEM562J(K)0M10	7.2	2.5	6.5	5.0
682	0.0068	MEM682J(K)0M10	7.2	2.5	6.5	5.0
822	0.0082	MEM822J(K)0M10	7.2	2.5	6.5	5.0
103	0.01	MEM103J(K)0M10	7.2	2.5	6.5	5.0
123	0.012	MEM123J(K)0M10	7.2	2.5	6.5	5.0
153	0.015	MEM153J(K)0M10	7.2	2.5	6.5	5.0
183	0.018	MEM183J(K)0M10	7.2	2.5	6.5	5.0
223	0.022	MEM223J(K)0M10	7.2	2.5	6.5	5.0
273	0.027	MEM273J(K)0M10	7.2	2.5	6.5	5.0
333	0.033	MEM333J(K)0M10	7.2	2.5	6.5	5.0
393	0.039	MEM393J(K)0M10	7.2	2.5	6.5	5.0
473	0.047	MEM473J(K)0M10	7.2	2.5	6.5	5.0
563	0.056	MEM563J(K)0M10	7.2	2.5	6.5	5.0
683	0.068	MEM683J(K)0M10	7.2	2.5	6.5	5.0
823	0.082	MEM823J(K)0M10	7.2	2.5	6.5	5.0
104	0.1	MEM104J(K)0M10	7.2	2.5	6.5	5.0
124	0.12	MEM124J(K)0M10	7.2	2.5	6.5	5.0
154	0.15	MEM154J(K)0M10	7.2	2.5	6.5	5.0
184	0.18	MEM184J(K)0M10	7.2	2.5	6.5	5.0
224	0.22	MEM224J(K)0M10	7.2	2.5	6.5	5.0
274	0.27	MEM274J(K)0M10	7.2	2.5	6.5	5.0
334	0.33	MEM334J(K)0M10	7.2	2.5	6.5	5.0
394	0.39	MEM394J(K)0M10	7.2	2.5	6.5	5.0
474	0.47	MEM474J(K)0M10	7.2	2.5	6.5	5.0
564	0.56	MEM564J(K)0M10	7.2	2.5	6.5	5.0
684	0.68	MEM684J(K)0M10	7.2	2.5	6.5	5.0
824	0.82	MEM824J(K)0M50	7.2	6.0	11.0	5.0
105	1.0	MEM105J(K)0M50	7.2	6.0	11.0	5.0

100VDC
102	0.001	MEM102J(K)1M10	7.2	2.5	6.5	5.0
122	0.0012	MEM122J(K)1M10	7.2	2.5	6.5	5.0
152	0.0015	MEM152J(K)1M10	7.2	2.5	6.5	5.0
182	0.0018	MEM182J(K)1M10	7.2	2.5	6.5	5.0
222	0.0022	MEM222J(K)1M10	7.2	2.5	6.5	5.0
272	0.0027	MEM272J(K)1M10	7.2	2.5	6.5	5.0
332	0.0033	MEM332J(K)1M10	7.2	2.5	6.5	5.0
392	0.0039	MEM392J(K)1M10	7.2	2.5	6.5	5.0
472	0.0047	MEM472J(K)1M10	7.2	2.5	6.5	5.0
562	0.0056	MEM562J(K)1M10	7.2	2.5	6.5	5.0
682	0.0068	MEM682J(K)1M10	7.2	2.5	6.5	5.0
822	0.0082	MEM822J(K)1M10	7.2	2.5	6.5	5.0
103	0.01	MEM103J(K)1M10	7.2	2.5	6.5	5.0
123	0.012	MEM123J(K)1M10	7.2	2.5	6.5	5.0
153	0.015	MEM153J(K)1M10	7.2	2.5	6.5	5.0
183	0.018	MEM183J(K)1M10	7.2	2.5	6.5	5.0
223	0.022	MEM223J(K)1M10	7.2	2.5	6.5	5.0
273	0.027	MEM273J(K)1M10	7.2	2.5	6.5	5.0
333	0.033	MEM333J(K)1M10	7.2	2.5	6.5	5.0
393	0.039	MEM393J(K)1M10	7.2	2.5	6.5	5.0
473	0.047	MEM473J(K)1M10	7.2	2.5	6.5	5.0
563	0.056	MEM563J(K)1M10	7.2	2.5	6.5	5.0
683	0.068	MEM683J(K)1M10	7.2	2.5	6.5	5.0
823	0.082	MEM823J(K)1M20	7.2	3.5	7.5	5.0
104	0.1	MEM104J(K)1M20	7.2	3.5	7.5	5.0
124	0.12	MEM124J(K)1M20	7.2	3.5	7.5	5.0
154	0.15	MEM154J(K)1M30	7.2	4.5	9.5	5.0
184	0.18	MEM184J(K)1M30	7.2	4.5	9.5	5.0
224	0.22	MEM224J(K)1M40	7.2	5.0	10.0	5.0
274	0.27	MEM274J(K)1M50	7.2	6.0	11.0	5.0
334	0.33	MEM334J(K)1M50	7.2	6.0	11.0	5.0
394	0.39	MEM394J(K)1M50	7.2	6.0	11.0	5.0
474	0.47	MEM474J(K)1M50	7.2	6.0	11.0	5.0
564	0.56	MEM564J(K)1M50	7.2	6.0	11.0	5.0
684	0.68	MEM684J(K)1M50	7.2	6.0	11.0	5.0
824	0.82	MEM824J(K)1M50	7.2	6.0	11.0	5.0
105	1.0	MEM105J(K)1M50	7.2	6.0	11.0	5.0

250VDC
102	0.001	MEM102J(K)2M10	7.2	2.5	6.5	5.0
122	0.0012	MEM122J(K)2M10	7.2	2.5	6.5	5.0
152	0.0015	MEM152J(K)2M10	7.2	2.5	6.5	5.0
182	0.0018	MEM182J(K)2M10	7.2	2.5	6.5	5.0
222	0.0022	MEM222J(K)2M10	7.2	2.5	6.5	5.0
272	0.0027	MEM272J(K)2M10	7.2	2.5	6.5	5.0
332	0.0033	MEM332J(K)2M10	7.2	2.5	6.5	5.0
392	0.0039	MEM392J(K)2M10	7.2	2.5	6.5	5.0
472	0.0047	MEM472J(K)2M10	7.2	2.5	6.5	5.0
562	0.0056	MEM562J(K)2M10	7.2	2.5	6.5	5.0
682	0.0068	MEM682J(K)2M10	7.2	2.5	6.5	5.0
822	0.0082	MEM822J(K)2M10	7.2	2.5	6.5	5.0
103	0.01	MEM103J(K)2M10	7.2	2.5	6.5	5.0
123	0.012	MEM123J(K)2M10	7.2	2.5	6.5	5.0
153	0.015	MEM153J(K)2M10	7.2	2.5	6.5	5.0
183	0.018	MEM183J(K)2M10	7.2	2.5	6.5	5.0
223	0.022	MEM223J(K)2M10	7.2	2.5	6.5	5.0
273	0.027	MEM273J(K)2M20	7.2	3.5	6.5	5.0
333	0.033	MEM333J(K)2M20	7.2	3.5	7.5	5.0
393	0.039	MEM393J(K)2M20	7.2	3.5	7.5	5.0
473	0.047	MEM473J(K)2M20	7.2	3.5	7.5	5.0
563	0.056	MEM563J(K)2M20	7.2	3.5	7.5	5.0
683	0.068	MEM683J(K)2M20	7.2	3.5	7.5	5.0
823	0.082	MEM823J(K)2M30	7.2	4.5	9.5	5.0
104	0.1	MEM104J(K)2M30	7.2	4.5	9.5	5.0
124	0.12	MEM124J(K)2M40	7.2	5.0	10.0	5.0
154	0.15	MEM154J(K)2M40	7.2	5.0	10.0	5.0
184	0.18	MEM184J(K)2M50	7.2	6.0	11.0	5.0
224	0.22	MEM224J(K)2M50	7.2	6.0	11.0	5.0
400VDC
102	0.001	MEM102J(K)4M10	7.2	2.5	6.5	5.0
122	0.0012	MEM122J(K)4M10	7.2	2.5	6.5	5.0
152	0.0015	MEM152J(K)4M10	7.2	2.5	6.5	5.0
182	0.0018	MEM182J(K)4M10	7.2	2.5	6.5	5.0
222	0.0022	MEM222J(K)4M10	7.2	2.5	6.5	5.0
272	0.0027	MEM272J(K)4M10	7.2	2.5	6.5	5.0
332	0.0033	MEM332J(K)4M10	7.2	2.5	6.5	5.0
392	0.0039	MEM392J(K)4M20	7.2	3.5	7.5	5.0
472	0.0047	MEM472J(K)4M20	7.2	3.5	7.5	5.0
562	0.0056	MEM562J(K)4M20	7.2	3.5	7.5	5.0
682	0.0068	MEM682J(K)4M20	7.2	3.5	7.5	5.0
822	0.0082	MEM822J(K)4M30	7.2	4.5	9.5	5.0
103	0.01	MEM103J(K)4M30	7.2	4.5	9.5	5.0
123	0.012	MEM123J(K)4M30	7.2	4.5	9.5	5.0
153	0.015	MEM153J(K)4M30	7.2	4.5	9.5	5.0
183	0.018	MEM183J(K)4M40	7.2	5.0	10.0	5.0
223	0.022	MEM223J(K)4M40	7.2	5.0	10.0	5.0
273	0.027	MEM273J(K)4M50	7.2	6.0	11.0	5.0
333	0.033	MEM333J(K)4M50	7.2	6.0	11.0	5.0
393	0.039	MEM393J(K)4M50	7.2	6.0	11.0	5.0
473	0.047	MEM473J(K)4M50	7.2	6.0	11.0	5.0

P.S.:
All the dimensions above are for your reference, the real ones are according to our specification documents; Please contact with us if you have any other questions such as the Absolute Rating etc.
