CL21X

■ Reference Standard
GB7332(IEC384-2)

■ Structures
Material: Polyester film
Electrode: Metallized Vacuum Evaporated Layer
（Aluminum））
Enveloped with Fire-proof Epoxide Resin (UL94V-0)

■ Using area
DC and Low Pulse Circuit.
E.g. Low Frequency Filter, Blocking of
DC , By-pass and coupling circuit

■ Features:
Small Size with good self-healing effect.
Well outer looking with high reliable using.

■ Specifications

Climate Conditions	-40--+85℃
VDC Rated Voltage	63V;100V
Capacitance Range	0.001µF-1.0µF
Capacitance Tolerance	±5% ±10%
Voltage Proof	1.6UR （5S）
Insulation Resistance and Time Consistence	≤0.33µF	≥3750MΩ
	＞0.33µF	≥1250S （MΩ.µF）
Dissipation Factor	≤0.01 1kHz 20℃
Climate Category	Temperature：40±2℃ Humidity：93%RH Lasting Time：21 Days There is no visible damage with the clearly mark. Capacitance：△C/C≤5% Dissipation Factor（（1KHz）：Increasing≤0.005 Insulation Resistance IR：≥50% of Rated Voltage
Resistance	+85℃，1000h Applying Voltage： 1.25*Rate Voltage Capacitance：△C/C≤5% Insulation Resistance：≥50% of Rated Voltage

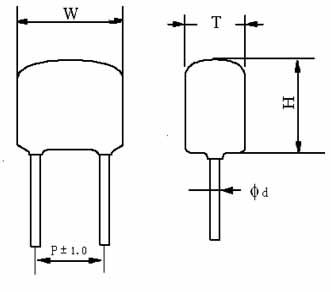

■ Outline Drawing

■ Structure

■ Characteristic Graph

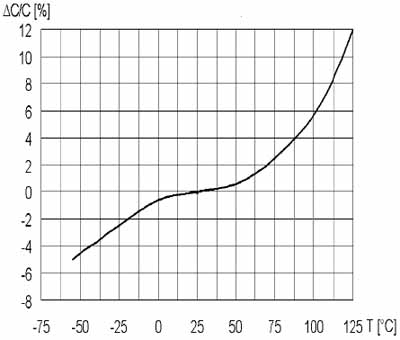

Capacitance and Temperature Graph

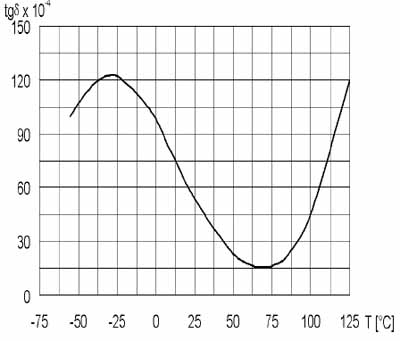

Dissipation Factor and Temperature Graph

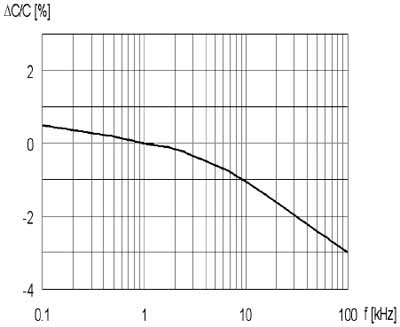

Capacitance and Frequency Graph

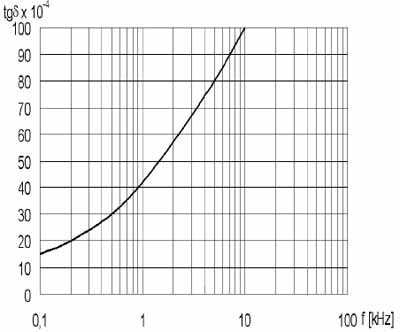

Dissipation Factor and Frequency Graph

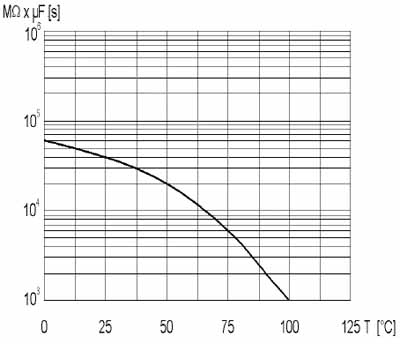

Insulation Resistance and Temperature Graph

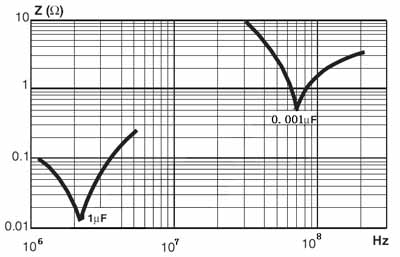

Impedance and Frequency Graph

■Dimension Lists
CL21X（MES）

Product Type		Item’s No.	Dimensions（mm）
Capacitance µF		Item’s No.	Wmax	T max		H max	P ±1.0
63VDC/100VDC
102	0.001	MES102J(K)10704070	7.3	4.0	7.0		5.0
122	0.0012	MES122J(K)10704070	7.3	4.0	7.0		5.0
152	0.0015	MES152J(K)10704070	7.3	4.0	7.0		5.0
182	0.0018	MES182J(K)10704070	7.3	4.0	7.0		5.0
222	0.0022	MES222J(K)10704070	7.3	4.0	7.0		5.0
272	0.0027	MES272J(K)10704070	7.3	4.0	7.0		5.0
332	0.0033	MES332J(K)10704070	7.3	4.0	7.0		5.0
392	0.0039	MES392J(K)10704070	7.3	4.0	7.0		5.0
472	0.0047	MES472J(K)10704070	7.3	4.0	7.0		5.0
562	0.0056	MES562J(K)10704070	7.3	4.0	7.0		5.0
682	0.0068	MES682J(K)10704070	7.3	4.0	7.0		5.0
822	0.0082	MES822J(K)10704070	7.3	4.0	7.0		5.0
103	0.01	MES103J(K)10704070	7.3	4.0	7.0		5.0
123	0.012	MES123J(K)10704070	7.3	4.0	7.0		5.0
153	0.015	MES153J(K)10704070	7.3	4.0	7.0		5.0
183	0.018	MES183J(K)10704070	7.3	4.0	7.0		5.0
223	0.022	MES223J(K)10704070	7.3	4.0	7.0		5.0
273	0.027	MES273J(K)10704070	7.3	4.0	7.0		5.0
333	0.033	MES333J(K)10704070	7.3	4.0	7.5		5.0
393	0.039	MES393J(K)10705080	7.3	4.5	7.5		5.0
473	0.047	MES473J(K)10705080	7.3	4.5	7.5		5.0
563	0.056	MES563J(K)10705080	7.3	4.5	8.0		5.0
683	0.068	MES683J(K)10705080	7.3	4.5	8.0		5.0
823	0.082	MES823J(K)10705080	7.3	4.5	8.0		5.0
104	0.1	MES104J(K)10705100	7.3	4.5	9.5		5.0
124	0.12	MES124J(K)11005080	10.2	4.5	8.0		7.5
154	0.15	MES154J(K)11005090	10.2	4.5	9.0		7.5
184	0.18	MES184J(K)11005090	10.2	4.5	9.0		7.5
224	0.22	MES224J(K)11005100	10.2	5.0	9.5		7.5
274	0.27	MES274J(K)11006100	10.2	5.5	10.0		7.5
334	0.33	MES334J(K)11005080	10.2	5.0	8.0		7.5
394	0.39	MES394J(K)11005090	10.2	5.0	8.5		7.5
474	0.47	MES474J(K)11006100	10.2	6.0	10.2		7.5
564	0.56	MES564J(K)11006090	10.2	6.0	9.0		7.5
684	0.68	MES684J(K)11007090	10.2	6.5	9.0		7.5
824	0.82	MES824J(K)11007100	10.2	7.0	10.0		7.5
105	1	MES105J(K)11008110	10.2	7.5	11.0		7.5

P.S.:
All the dimensions above are for your reference, the real ones are according to our specification documents; Please contact with us if you have any other questions such as the Absolute Rating etc.
