GB7332(IEC384-2)
■ Structures
Material: Polyester film
Electrode: Metallized Vacuum Evaporated Layer
(With complexing jumbo-size Zinc and Aluminum )
Enveloped with Fire-proof Epoxide Resin (UL94V-0)
■ Using area
DC and Low Pulse Circuit.
E.g. Low Frequency Filter, Blocking of DC and By-pass.
Please do not use in the AC, filtering, Oscillation and high frequency circuits.
■ Features:
Small Size with good self-healing effect.
Impulse Strength with high impact.
■ Please Choosing the CBB21 if the rated voltage is higher than 250V.
■ Specifications
Climate Conditions |
-40--+100℃ |
||||||
VDC |
100V、250V、400V、630V |
||||||
Capacitance Range |
0.0022µF-10µF |
||||||
Capacitance Tolerance |
±5% ±10% |
||||||
Voltage Proof |
1.6UR （5S） |
||||||
Insulation Resistance and Time Consistence |
≤0.33µF |
≥7500MΩ |
|||||
＞0.33µF |
≥2500S （MΩ.µF） |
||||||
Dissipation Factor |
≤0.01 1kHz 20℃ |
||||||
Climate |
Temperature：40±2℃ |
||||||
Resistance |
+85℃，1000h |
||||||
dv/dt（v/µs） |
Pitch |
10 |
15 |
20 |
25 |
31 |
|
250V |
20 |
10 |
8 |
5 |
5 |
||
400V |
50 |
20 |
10 |
8 |
8 |
||
630V |
150 |
60 |
25 |
12 |
12 |
||
■ The exchanging of VAC and VDC
Direct Current |
100VDC |
250VDC |
400VDC |
630VDC |
Alternate Current |
63VAC |
160VAC |
200VAC |
220VAC |
■ The Relationship of AC Voltage Proof and Frequency
100VDC/63VAC 250VDC/160VAC
400VDC/200VAC 630VDC/220VAC

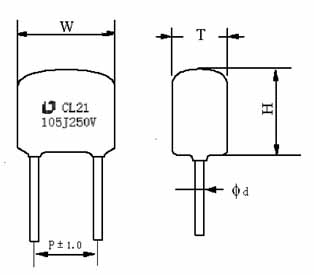

■ Outline Drawing
脚距mm |
10 |
15 |
22.5 |
27.5 |
31 |
引线直径mm |
0.6 |
0.6/0.8 |
0.8 |
0.8 |
0.8 |
■ Structure
■ Characteristic Graph

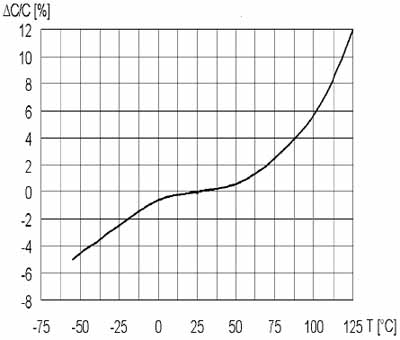

Capacitance and Temperature Graph

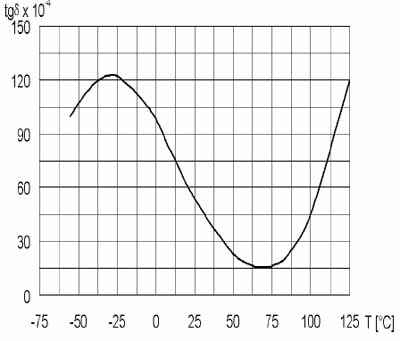

Dissipation Factor and Temperature Graph

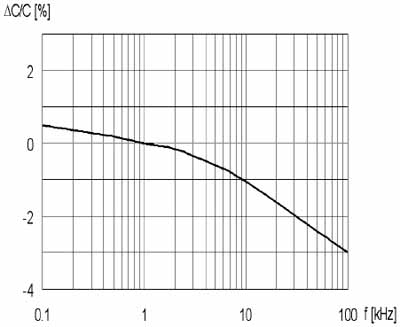

Capacitance and Frequency Graph

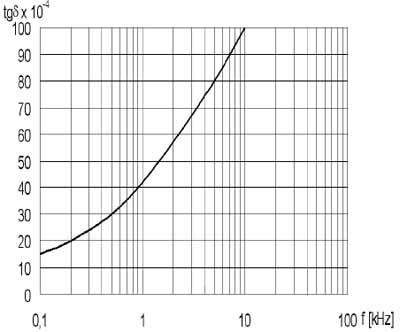

Dissipation Factor and Frequency Graph

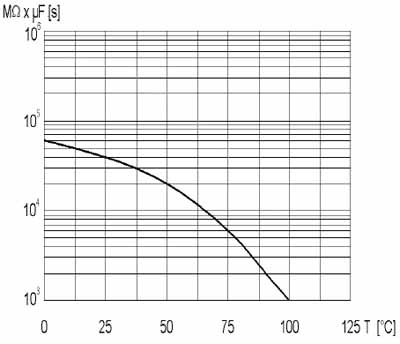

Insulation Resistance and Temperature Graph

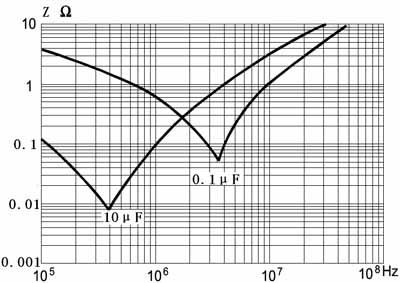

Impedance and Frequency Graph
CL21（MEF）
Product Type |
Item’s No. |
Dimensions（mm） |
||||
Capacitance µF |
Wmax |
T max |
H max |
P ±1.0 |
d ±0.05 |
|
100VDC |
|||||||
104 |
0.1 |
MEF104K(J)11003070 |
10.0 |
3.5 |
7.0 |
7.5 |
0.6 |
124 |
0.12 |
MEF124K(J)11004080 |
10.0 |
3.5 |
8.0 |
7.5 |
0.6 |
154 |
0.15 |
MEF154K(J)11004080 |
10.0 |
4.0 |
8.0 |
7.5 |
0.6 |
184 |
0.18 |
MEF184K(J)11004090 |
10.0 |
4.5 |
8.5 |
7.5 |
0.6 |
224 |
0.22 |
MEF224K(J)11005090 |
10.0 |
5.0 |
9.5 |
7.5 |
0.6 |
274 |
0.27 |
MEF274K(J)11005100 |
10.0 |
5.0 |
10.5 |
7.5 |
0.6 |
224 |
0.22 |
MEF224K(J)11304090 |
13.0 |
4.0 |
9.0 |
10.0 |
0.6 |
334 |
0.33 |
MEF334K(J)11305100 |
13.0 |
5.0 |
10.0 |
10.0 |
0.6 |
394 |
0.39 |
MEF394K(J)11305100 |
13.0 |
5.5 |
10.5 |
10.0 |
0.6 |
474 |
0.47 |
MEF474K(J)11306110 |
13.0 |
6.0 |
11.0 |
10.0 |
0.6 |
474 |
0.47 |
MEF474K(J)11904090 |
19.0 |
4.5 |
9.5 |
15.0 |
0.6 |
564 |
0.56 |
MEF564K(J)11905100 |
19.0 |
5.0 |
10.0 |
15.0 |
0.8 |
684 |
0.68 |
MEF684K(J)11905100 |
19.0 |
5.5 |
10.5 |
15.0 |
0.8 |
824 |
0.82 |
MEF824K(J)11906110 |
19.0 |
6.0 |
11.0 |
15.0 |
0.8 |
105 |
1.0 |
MEF105K(J)11906110 |
19.0 |
6.5 |
11.5 |
15.0 |
0.8 |
125 |
1.2 |
MEF125K(J)11906130 |
19.0 |
6.5 |
13.0 |
15.0 |
0.8 |
155 |
1.5 |
MEF155K(J)11907140 |
19.0 |
7.5 |
14.5 |
15.0 |
0.8 |
185 |
1.8 |
MEF185K(J)11908150 |
19.0 |
8.0 |
15.0 |
15.0 |
0.8 |
225 |
2.2 |
MEF225K(J)11910160 |
19.0 |
9.5 |
16.5 |
15.0 |
0.8 |
155 |
1.5 |
MEF155K(J)12406130 |
24.0 |
6.0 |
12.5 |
20.0 |
0.8 |
185 |
1.8 |
MEF185K(J)12407130 |
24.0 |
6.5 |
13.5 |
20.0 |
0.8 |
225 |
2.2 |
MEF225K(J)12407140 |
24.0 |
7.5 |
14.5 |
20.0 |
0.8 |
275 |
2.7 |
MEF275K(J)12408160 |
24.0 |
8.0 |
16.5 |
20.0 |
0.8 |
335 |
3.3 |
MEF335K(J)12409170 |
24.0 |
8.5 |
17.5 |
20.0 |
0.8 |
335 |
3.3 |
MEF335K(J)12908160 |
29.0 |
7.5 |
16.5 |
25.0 |
0.8 |
395 |
3.9 |
MEF395K(J)12908170 |
29.0 |
8.5 |
17.0 |
25.0 |
0.8 |
475 |
4.7 |
MEF475K(J)12910180 |
29.0 |
10.0 |
18.0 |
25.0 |
0.8 |
565 |
5.6 |
MEF565K(J)12911190 |
29.0 |
11.0 |
19.0 |
25.0 |
0.8 |
685 |
6.8 |
MEF685K(J)12912200 |
29.0 |
12.0 |
20.5 |
25.0 |
0.8 |
825 |
8.2 |
MEF825K(J)12913220 |
29.0 |
13.5 |
21.5 |
25.0 |
0.8 |
106 |
10.0 |
MEF106K(J)12915230 |
29.0 |
15.0 |
23.0 |
25.0 |
0.8 |
126 |
12.0 |
MEF126K(J)12916250 |
29.0 |
16.5 |
24.5 |
25.0 |
0.8 |
250VDC |
|||||||
563 |
0.056 |
MEF563K(J)21003070 |
10.0 |
3.5 |
6.5 |
7.5 |
0.6 |
683 |
0.068 |
MEF683K(J)21003070 |
10.0 |
3.5 |
7.5 |
7.5 |
0.6 |
823 |
0.082 |
MEF823K(J)21003080 |
10.0 |
3.5 |
8.5 |
7.5 |
0.6 |
104 |
0.1 |
MEF104K(J)21004090 |
10.0 |
4.0 |
9.0 |
7.5 |
0.6 |
124 |
0.12 |
MEF124K(J)21004090 |
10.0 |
4.5 |
9.5 |
7.5 |
0.6 |
104 |
0.1 |
MEF104K(J)21303080 |
13.0 |
3.5 |
8.5 |
10.0 |
0.6 |
124 |
0.12 |
MEF124K(J)21304090 |
13.0 |
4.0 |
9.0 |
10.0 |
0.6 |
154 |
0.15 |
MEF154K(J)21304090 |
13.0 |
4.0 |
9.0 |
10.0 |
0.6 |
184 |
0.18 |
MEF184K(J)21305100 |
13.0 |
4.5 |
9.5 |
10.0 |
0.6 |
224 |
0.22 |
MEF224K(J)21305100 |
13.0 |
5.0 |
10.5 |
10.0 |
0.6 |
274 |
0.27 |
MEF274K(J)21306110 |
13.0 |
6.0 |
11.0 |
10.0 |
0.6 |
334 |
0.33 |
MEF334K(J)21306110 |
13.0 |
6.5 |
11.5 |
10.0 |
0.6 |
334 |
0.33 |
MEF334K(J)21905100 |
19.0 |
5.0 |
10.0 |
15.0 |
0.8 |
394 |
0.39 |
MEF394K(J)21905120 |
19.0 |
5.0 |
11.5 |
15.0 |
0.8 |
474 |
0.47 |
MEF474K(J)21905120 |
19.0 |
5.5 |
12.0 |
15.0 |
0.8 |
564 |
0.56 |
MEF564K(J)21906130 |
19.0 |
6.0 |
12.5 |
15.0 |
0.8 |
684 |
0.68 |
MEF684K(J)21907130 |
19.0 |
6.5 |
13.0 |
15.0 |
0.8 |
684 |
0.68 |
MEF684K(J)22406110 |
24.0 |
6.0 |
11.0 |
20.0 |
0.8 |
824 |
0.82 |
MEF824K(J)22406130 |
24.0 |
6.0 |
12.5 |
20.0 |
0.8 |
105 |
1.0 |
MEF105K(J)22406130 |
24.0 |
6.5 |
13.0 |
20.0 |
0.8 |
125 |
1.2 |
MEF125K(J)22407140 |
24.0 |
7.5 |
14.5 |
20.0 |
0.8 |
155 |
1.5 |
MEF155K(J)22408160 |
24.0 |
7.5 |
16.5 |
20.0 |
0.8 |
185 |
1.8 |
MEF185K(J)22408170 |
24.0 |
8.5 |
17.0 |
20.0 |
0.8 |
225 |
2.2 |
MEF225K(J)22410180 |
24.0 |
10.0 |
18.5 |
20.0 |
0.8 |
275 |
2.7 |
MEF275K(J)22910180 |
31.0 |
9.5 |
18.0 |
25.5 |
0.8 |
335 |
3.3 |
MEF335K(J)22911190 |
31.0 |
10.5 |
19.0 |
25.5 |
0.8 |
395 |
3.9 |
MEF395K(J)22912200 |
29.0 |
11.5 |
20.0 |
25.5 |
0.8 |
475 |
4.7 |
MEF475K(J)22913210 |
29.0 |
13.0 |
21.0 |
25.5 |
0.8 |
565 |
5.6 |
MEF565K(J)23512210 |
29.0 |
12.5 |
20.5 |
31.5 |
0.8 |
685 |
6.8 |
MEF685K(J)23514220 |
29.0 |
13.5 |
22.0 |
31.5 |
0.8 |
400VDC |
|||||||
473 |
0.047 |
MEF473K(J)41004090 |
10.0 |
3.5 |
8.5 |
7.5 |
0.6 |
563 |
0.056 |
MEF563K(J)41004090 |
10.0 |
4.0 |
9.0 |
7.5 |
0.6 |
683 |
0.068 |
MEF683K(J)41004090 |
10.0 |
4.5 |
9.5 |
7.5 |
0.6 |
473 |
0.047 |
MEF473K(J)41303080 |
13.0 |
3.5 |
8.5 |
10.0 |
0.6 |
563 |
0.056 |
MEF563K(J)41304090 |
13.0 |
3.5 |
9.0 |
10.0 |
0.6 |
683 |
0.068 |
MEF683K(J)41304090 |
13.0 |
4.0 |
9.0 |
10.0 |
0.6 |
823 |
0.082 |
MEF823K(J)41304090 |
13.0 |
4.5 |
9.5 |
10.0 |
0.6 |
104 |
0.1 |
MEF104K(J)41305100 |
13.0 |
5.0 |
10.0 |
10.0 |
0.6 |
124 |
0.12 |
MEF124K(J)41306110 |
13.0 |
5.5 |
10.5 |
10.0 |
0.6 |
154 |
0.15 |
MEF154K(J)41306110 |
13.0 |
6.5 |
11.5 |
10.0 |
0.6 |
184 |
0.18 |
MEF184K(J)41905100 |
19.0 |
5.0 |
10.0 |
15.0 |
0.8 |
224 |
0.22 |
MEF224K(J)41905100 |
19.0 |
5.5 |
10.5 |
15.0 |
0.8 |
274 |
0.27 |
MEF274K(J)41906110 |
19.0 |
6.0 |
11.0 |
15.0 |
0.8 |
334 |
0.33 |
MEF334K(J)41906130 |
19.0 |
6.0 |
13.0 |
15.0 |
0.8 |
394 |
0.39 |
MEF394K(J)41907130 |
19.0 |
6.5 |
13.5 |
15.0 |
0.8 |
474 |
0.47 |
MEF474K(J)41907140 |
19.0 |
7.5 |
14.5 |
15.0 |
0.8 |
564 |
0.56 |
MEF564K(J)41908150 |
19.0 |
8.0 |
15.0 |
15.0 |
0.8 |
394 |
0.39 |
MEF394K(J)42405120 |
24.0 |
5.5 |
12.0 |
20.0 |
0.8 |
474 |
0.47 |
MEF474K(J)42406130 |
24.0 |
6.0 |
12.5 |
20.0 |
0.8 |
564 |
0.56 |
MEF564K(J)42406130 |
24.0 |
6.5 |
13.0 |
20.0 |
0.8 |
684 |
0.68 |
MEF684K(J)42407140 |
24.0 |
7.5 |
14.5 |
20.0 |
0.8 |
824 |
0.82 |
MEF824K(J)42408150 |
24.0 |
8.0 |
15.0 |
20.0 |
0.8 |
105 |
1.0 |
MEF105K(J)42408170 |
24.0 |
8.5 |
17.0 |
20.0 |
0.8 |
125 |
1.2 |
MEF125K(J)42410180 |
24.0 |
10.0 |
18.0 |
20.0 |
0.8 |
155 |
1.5 |
MEF155K(J)42411190 |
24.0 |
11.0 |
19.5 |
20.0 |
0.8 |
185 |
1.8 |
MEF185K(J)42412210 |
24.0 |
12.0 |
20.5 |
20.0 |
0.8 |
225 |
2.2 |
MEF225K(J)42912200 |
29.0 |
11.5 |
20.0 |
25.0 |
0.8 |
275 |
2.7 |
MEF275K(J)42913210 |
29.0 |
13.0 |
21.5 |
25.0 |
0.8 |
335 |
3.3 |
MEF335K(J)42914230 |
29.0 |
14.5 |
23.0 |
25.0 |
0.8 |
395 |
3.9 |
MEF395K(J)42916240 |
29.0 |
16.0 |
24.0 |
25.0 |
0.8 |
475 |
4.7 |
MEF475K(J)42917260 |
29.0 |
17.5 |
26.0 |
25.0 |
0.8 |
630VDC |
|||||||
682 |
0.0068 |
MEF682K(J)61304070 |
13.0 |
4.0 |
7.5 |
10.0 |
0.6 |
822 |
0.0082 |
MEF822K(J)61303070 |
13.0 |
3.0 |
7.5 |
10.0 |
0.6 |
103 |
0.01 |
MEF103K(J)61304080 |
13.0 |
4.0 |
8.0 |
10.0 |
0.6 |
123 |
0.012 |
MEF123K(J)61304080 |
13.0 |
4.0 |
8.0 |
10.0 |
0.6 |
153 |
0.015 |
MEF153K(J)61304090 |
13.0 |
4.5 |
8.5 |
10.0 |
0.6 |
183 |
0.018 |
MEF183K(J)61304080 |
13.0 |
4.0 |
8.0 |
10.0 |
0.6 |
223 |
0.022 |
MEF223K(J)61303080 |
13.0 |
3.5 |
7.5 |
10.0 |
0.6 |
273 |
0.027 |
MEF273K(J)61304090 |
13.0 |
3.5 |
8.5 |
10.0 |
0.6 |
333 |
0.033 |
MEF333K(J)61304090 |
13.0 |
4.0 |
9.0 |
10.0 |
0.6 |
393 |
0.039 |
MEF393K(J)61304090 |
13.0 |
4.5 |
9.5 |
10.0 |
0.6 |
473 |
0.047 |
MEF473K(J)61305100 |
13.0 |
5.0 |
10.0 |
10.0 |
0.6 |
563 |
0.056 |
MEF563K(J)61305100 |
13.0 |
5.5 |
10.5 |
10.0 |
0.6 |
683 |
0.068 |
MEF683K(J)61306110 |
13.0 |
6.0 |
11.0 |
10.0 |
0.6 |
823 |
0.082 |
MEF823K(J)61306110 |
13.0 |
6.5 |
11.5 |
10.0 |
0.6 |
104 |
0.1 |
MEF104K(J)61306130 |
13.0 |
6.5 |
13.0 |
10.0 |
0.6 |
563 |
0.056 |
MEF563K(J)61905090 |
19.0 |
5.0 |
9.5 |
15.0 |
0.8 |
683 |
0.068 |
MEF683K(J)61905100 |
19.0 |
5.5 |
10.5 |
15.0 |
0.8 |
823 |
0.082 |
MEF823K(J)61904090 |
19.0 |
4.5 |
9.5 |
15.0 |
0.8 |
104 |
0.1 |
MEF104K(J)61905100 |
19.0 |
5.0 |
10.0 |
15.0 |
0.8 |
124 |
0.12 |
MEF124K(J)61905120 |
19.0 |
5.0 |
11.5 |
15.0 |
0.8 |
154 |
0.15 |
MEF154K(J)61906120 |
19.0 |
5.5 |
12.5 |
15.0 |
0.8 |
184 |
0.18 |
MEF184K(J)61906130 |
19.0 |
6.0 |
13.0 |
15.0 |
0.8 |
224 |
0.22 |
MEF224K(J)61907130 |
19.0 |
7.0 |
13.5 |
15.0 |
0.8 |
274 |
0.27 |
MEF274K(J)61908150 |
19.0 |
8.0 |
14.5 |
15.0 |
0.8 |
334 |
0.33 |
MEF334K(J)61909160 |
19.0 |
8.5 |
15.5 |
15.0 |
0.8 |
394 |
0.39 |
MEF394K(J)62408150 |
24.0 |
7.5 |
14.5 |
20.0 |
0.8 |
474 |
0.47 |
MEF474K(J)62408160 |
24.0 |
8.0 |
16.5 |
20.0 |
0.8 |
564 |
0.56 |
MEF564K(J)62409170 |
24.0 |
8.5 |
17.0 |
20.0 |
0.8 |
684 |
0.68 |
MEF684K(J)62410180 |
24.0 |
10.0 |
18.5 |
20.0 |
0.8 |
824 |
0.82 |
MEF824K(J)62411190 |
24.0 |
11.0 |
19.5 |
20.0 |
0.8 |
105 |
1.0 |
MEF105K(J)62911190 |
31.0 |
10.5 |
19.0 |
25.0 |
0.8 |
125 |
1.2 |
MEF125K(J)62912200 |
31.0 |
11.5 |
20.0 |
25.0 |
0.8 |
155 |
1.5 |
MEF155K(J)62913210 |
31.0 |
13.0 |
21.5 |
25.0 |
0.8 |
185 |
1.8 |
MEF185K(J)62914230 |
31.0 |
14.5 |
23.0 |
25.0 |
0.8 |
225 |
2.2 |
MEF225K(J)62916240 |
31.0 |
16.0 |
24.5 |
25.0 |
0.8 |
Remark: Please Choosing the CBB21 if the rated voltage is higher than 250V.
P.S.:
All the dimensions above are for your reference, the real ones are according to our specification documents; Please contact with us if you have any other questions such as the Absolute Rating etc.
