GB7332（IEC384-2）
■ Structures
Material: Polyester film
Electrode: Metallized Vacuum Evaporated Layer
Encapsulation: Wrap up with PET tape and
Encapsulated with Fire-proof Epoxide Resin(UL94V-0)
Shape: Cylinder or Elliptic
Pin: With copper-clad steel leads or PVC Electronic Tread
■ Using area
DC and Low Pulse Circuit .
E.g. Low Frequency Filter, Blocking of DC and By-pass.
Could be used in all the CL21 compliant conditions.
Please do not use in the AC, filtering, Oscillation and high frequency circuits.
■ Features:
Small Size with good self-healing effect, high reliability.
■ Specifications
Climate Conditions |
-40--+85℃ |
||||||
Rated Voltage vdc |
100V、250V、400V、630V |
||||||
Capacitance Range |
0.01µF-40µF |
||||||
Capacitance Tolerance |
±5% ±10% |
||||||
Voltage Proof |
1.6UR （5S） |
||||||
Insulation Resistance and Time Consistence |
≤0.33µF |
≥7500 |
|||||
＞0.33µF |
≥2500S （MΩ.μF） |
||||||
Dissipation Factor |
≤0.01 1kHz 20℃ |
||||||
Climate |
Temperature：40±2℃ |
||||||
Resistance |
+85℃，1000h |
||||||
dv/dt（v/µs） |
Length |
15 |
20 |
25 |
30 |
35 |
|
100/250V |
20 |
10 |
8 |
5 |
5 |
||
400V |
50 |
20 |
10 |
8 |
8 |
||
630V |
150 |
60 |
25 |
12 |
12 |
||
■ The exchanging of VAC and VDC
Direct Current |
100VDC |
250VDC |
400VDC |
630VDC |
Alternate Current |
63VAC |
160VAC |
200VAC |
220VAC |
■ The Relationship of AC Voltage Proof and Frequency
250VDC/160VAC 400VDC/200VAC
630VDC/220VAC

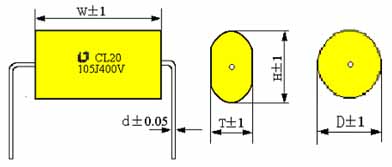

■ Outline Drawing
Length mm |
15 |
20 |
25 |
30 |
40 |
45 |
The Diameter of the Pin mm |
0.6 |
0.8 |
0.8 |
0.8 |
1.0 |
1.2 |
PVC Electronic Tread |
22# |
22# |
22# |
20# |
18# |
12# |
■ Structure
■ Characteristic Graph

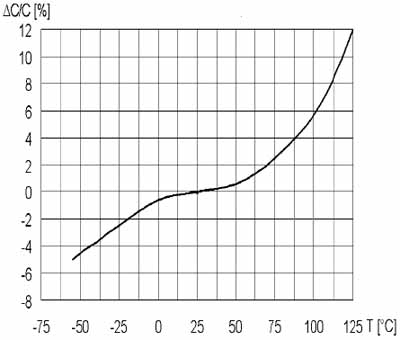

Capacitance and Temperature Graph

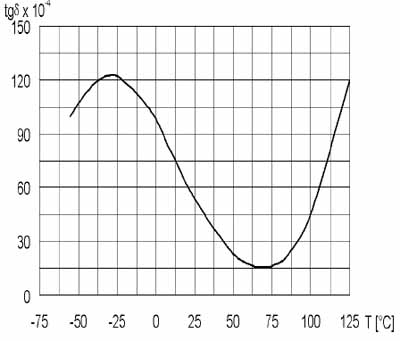

Dissipation Factor and Temperature Graph

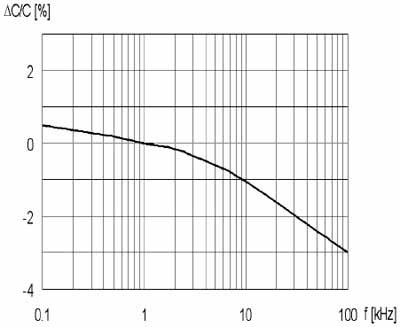

Capacitance and Frequency Graph

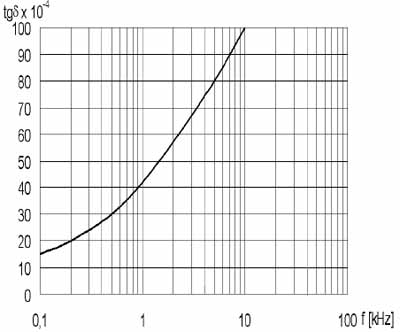

Dissipation Factor and Frequency Graph

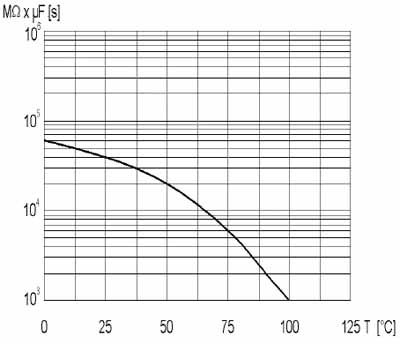

Insulation Resistance and Temperature Graph

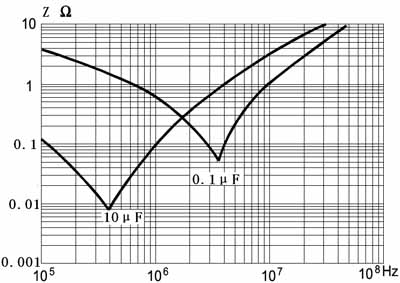

Impedance and Frequency Graph
CL20（MEA）Elliptic Types
Products Type |
Item No. |
Dimensions（mm） |
|||
Capacitance µF |
W±1.0 |
T ±1.0 |
H±1.0 |
d ±0.05 |
|
100VDC |
||||||
105 |
1.0 |
MEA105K(J)12005100 |
20.0 |
5.5 |
10.0 |
0.6 |
125 |
1.2 |
MEA125K(J)12006110 |
20.0 |
6.0 |
11.0 |
0.6 |
155 |
1.5 |
MEA155K(J)12007120 |
20.0 |
7.0 |
11.5 |
0.6 |
185 |
1.8 |
MEA185K(J)12007130 |
20.0 |
7.0 |
13.5 |
0.8 |
225 |
2.2 |
MEA225K(J)12008140 |
20.0 |
8.0 |
14.0 |
0.8 |
275 |
2.7 |
MEA275K(J)12506140 |
25.0 |
6.5 |
14.5 |
0.8 |
335 |
3.3 |
MEA335K(J)12507150 |
25.0 |
7.5 |
15.5 |
0.8 |
395 |
3.9 |
MEA395K(J)12508160 |
25.0 |
8.5 |
16.0 |
0.8 |
475 |
4.7 |
MEA475K(J)12509170 |
25.0 |
9.5 |
17.5 |
0.8 |
565 |
5.6 |
MEA565K(J)12510180 |
25.0 |
10.5 |
18.5 |
0.8 |
475 |
4.7 |
MEA475K(J)13008160 |
30.0 |
8.0 |
16.0 |
0.8 |
565 |
5.6 |
MEA565K(J)13009170 |
30.0 |
9.0 |
16.5 |
0.8 |
685 |
6.8 |
MEA685K(J)13010180 |
30.0 |
10.0 |
18.0 |
0.8 |
825 |
8.2 |
MEA825K(J)13011190 |
30.0 |
11.0 |
19.0 |
0.8 |
106 |
10.0 |
MEA106K(J)13013200 |
30.0 |
12.5 |
20.5 |
0.8 |
126 |
12.0 |
MEA126K(J)13014220 |
30.0 |
14.0 |
22.0 |
0.8 |
156 |
15.0 |
MEA156K(J)13016240 |
30.0 |
16.0 |
24.0 |
1.0 |
186 |
18.0 |
MEA186K(J)14513210 |
45.0 |
13.0 |
20.5 |
1.0 |
206 |
20.0 |
MEA206K(J)14514220 |
45.0 |
13.5 |
21.5 |
1.0 |
226 |
22.0 |
MEA226K(J)14514220 |
45.0 |
14.5 |
22.5 |
1.0 |
336 |
33.0 |
MEA336K(J)14518260 |
45.0 |
18.5 |
26.5 |
1.0 |
250VDC |
||||||
334 |
0.33 |
MEA334K(J)21505100 |
15.0 |
5.5 |
10.0 |
0.6 |
394 |
0.39 |
MEA394K(J)21506110 |
15.0 |
6.0 |
10.5 |
0.6 |
474 |
0.47 |
MEA474K(J)21506110 |
15.0 |
6.5 |
11.5 |
0.6 |
564 |
0.56 |
MEA564K(J)21507120 |
15.0 |
7.5 |
12.0 |
0.6 |
274 |
0.27 |
MEA274K(J)22003080 |
20.0 |
3.5 |
8.5 |
0.6 |
334 |
0.33 |
MEA334K(J)22004090 |
20.0 |
4.0 |
8.5 |
0.6 |
394 |
0.39 |
MEA394K(J)22004090 |
20.0 |
4.5 |
9.0 |
0.6 |
474 |
0.47 |
MEA474K(J)22005100 |
20.0 |
5.0 |
9.5 |
0.6 |
564 |
0.56 |
MEA564K(J)22005100 |
20.0 |
5.5 |
10.0 |
0.6 |
684 |
0.68 |
MEA684K(J)22006110 |
20.0 |
6.0 |
11.0 |
0.6 |
824 |
0.82 |
MEA824K(J)22007120 |
20.0 |
7.0 |
11.5 |
0.6 |
105 |
1.0 |
MEA105K(J)22506110 |
25.0 |
6.0 |
11.0 |
0.8 |
125 |
1.2 |
MEA125K(J)22507110 |
25.0 |
6.5 |
11.5 |
0.8 |
155 |
1.5 |
MEA155K(J)22507130 |
25.0 |
7.0 |
13.5 |
0.8 |
185 |
1.8 |
MEA185K(J)22508140 |
25.0 |
8.0 |
14.0 |
0.8 |
225 |
2.2 |
MEA225K(J)23007140 |
30.0 |
7.5 |
14.0 |
0.8 |
275 |
2.7 |
MEA275K(J)23008150 |
30.0 |
8.5 |
15.0 |
0.8 |
335 |
3.3 |
MEA335K(J)23009170 |
30.0 |
9.0 |
17.0 |
0.8 |
475 |
4.7 |
MEA475K(J)23509170 |
35.0 |
9.5 |
17.5 |
0.8 |
565 |
5.6 |
MEA565K(J)23510180 |
35.0 |
10.5 |
18.5 |
0.8 |
685 |
6.8 |
MEA685K(J)23512200 |
35.0 |
12.0 |
20.0 |
0.8 |
825 |
8.2 |
MEA825K(J)23513210 |
35.0 |
13.5 |
21.5 |
0.8 |
106 |
10.0 |
MEA106K(J)23515230 |
35.0 |
15.0 |
23.0 |
1.0 |
126 |
12.0 |
MEA126K(J)24514220 |
45.0 |
14.0 |
21.5 |
1.0 |
156 |
15.0 |
MEA156K(J)24516240 |
45.0 |
16.0 |
23.5 |
1.0 |
186 |
18.0 |
MEA186K(J)24518250 |
45.0 |
17.5 |
25.5 |
1.0 |
226 |
22.0 |
MEA226K(J)24520280 |
45.0 |
20.0 |
27.5 |
1.0 |
400VDC |
||||||
334 |
0.33 |
MEA334K(J)42005100 |
20.0 |
5.5 |
10.5 |
0.6 |
394 |
0.39 |
MEA394K(J)42006110 |
20.0 |
6.0 |
11.0 |
0.6 |
474 |
0.47 |
MEA474K(J)42007120 |
20.0 |
7.0 |
11.5 |
0.6 |
564 |
0.56 |
MEA564K(J)42008120 |
20.0 |
7.5 |
12.5 |
0.8 |
684 |
0.68 |
MEA684K(J)42008130 |
20.0 |
8.5 |
13.5 |
0.8 |
824 |
0.82 |
MEA824K(J)42009140 |
20.0 |
9.5 |
14.5 |
0.8 |
105 |
1.0 |
MEA105K(J)42010160 |
20.0 |
10.0 |
16.5 |
0.8 |
125 |
1.2 |
MEA125K(J)42509150 |
25.0 |
8.5 |
15.0 |
0.8 |
155 |
1.5 |
MEA155K(J)42510160 |
25.0 |
10.0 |
16.5 |
0.8 |
185 |
1.8 |
MEA185K(J)42510180 |
25.0 |
10.5 |
18.5 |
0.8 |
225 |
2.2 |
MEA225K(J)43010180 |
30.0 |
10.0 |
18.0 |
0.8 |
275 |
2.7 |
MEA275K(J)43011190 |
30.0 |
11.0 |
19.0 |
0.8 |
335 |
3.3 |
MEA335K(J)43511190 |
35.0 |
11.0 |
19.0 |
0.8 |
395 |
3.9 |
MEA395K(J)43512200 |
35.0 |
12.0 |
20.0 |
0.8 |
475 |
4.7 |
MEA475K(J)43513210 |
35.0 |
13.5 |
21.5 |
0.8 |
565 |
5.6 |
MEA565K(J)43515230 |
35.0 |
15.0 |
23.0 |
0.8 |
685 |
6.8 |
MEA685K(J)43517250 |
35.0 |
17.0 |
25.0 |
1.0 |
825 |
8.2 |
MEA825K(J)43519270 |
35.0 |
19.0 |
26.5 |
1.0 |
630VDC |
||||||
823 |
0.082 |
MEA823K(J)61505100 |
15.0 |
5.0 |
10.0 |
0.6 |
104 |
0.1 |
MEA104K(J)61506110 |
15.0 |
6.0 |
10.5 |
0.6 |
124 |
0.12 |
MEA124K(J)61506110 |
15.0 |
6.5 |
11.5 |
0.6 |
154 |
0.15 |
MEA154K(J)61507120 |
15.0 |
7.5 |
12.5 |
0.6 |
184 |
0.18 |
MEA184K(J)62006100 |
20.0 |
5.5 |
10.5 |
0.6 |
224 |
0.22 |
MEA224K(J)62006110 |
20.0 |
6.5 |
11.0 |
0.6 |
274 |
0.27 |
MEA274K(J)62007120 |
20.0 |
7.0 |
12.0 |
0.6 |
334 |
0.33 |
MEA334K(J)62008130 |
20.0 |
8.0 |
12.5 |
0.8 |
394 |
0.39 |
MEA394K(J)62009140 |
20.0 |
9.0 |
13.5 |
0.8 |
474 |
0.47 |
MEA474K(J)62010150 |
20.0 |
10.0 |
14.5 |
0.8 |
564 |
0.56 |
MEA564K(J)62509130 |
25.0 |
8.5 |
13.5 |
0.8 |
684 |
0.68 |
MEA684K(J)62509150 |
25.0 |
9.0 |
15.5 |
0.8 |
824 |
0.82 |
MEA824K(J)63008150 |
30.0 |
8.5 |
15.0 |
0.8 |
105 |
1.0 |
MEA105K(J)63009170 |
30.0 |
9.0 |
16.5 |
0.8 |
125 |
1.2 |
MEA125K(J)63010180 |
30.0 |
10.0 |
18.0 |
0.8 |
155 |
1.5 |
MEA155K(J)63011190 |
30.0 |
11.5 |
19.5 |
0.8 |
185 |
1.8 |
MEA185K(J)63511190 |
35.0 |
11.0 |
18.5 |
0.8 |
225 |
2.2 |
MEA225K(J)63512200 |
35.0 |
12.0 |
20.0 |
0.8 |
275 |
2.7 |
MEA275K(J)63514220 |
35.0 |
14.0 |
21.5 |
0.8 |
335 |
3.3 |
MEA335K(J)63515230 |
35.0 |
15.5 |
23.5 |
1.0 |
395 |
3.9 |
MEA395K(J)63517250 |
35.0 |
17.0 |
25.0 |
1.0 |
475 |
4.7 |
MEA475K(J)63519270 |
35.0 |
19.0 |
27.0 |
1.0 |
CL20（MET）Cylinder
Product Type |
Item’s No |
Dimensions（mm） |
|||
Capacitance µF |
W±1.0 |
ΦD±1.0 |
d ±0.05 |
||
100VDC |
|||||
474 |
0.47 |
MET474K(J)120060 |
20.0 |
6.5 |
0.6 |
564 |
0.56 |
MET564K(J)120070 |
20.0 |
7.0 |
0.6 |
684 |
0.68 |
MET684K(J)120070 |
20.0 |
7.5 |
0.6 |
824 |
0.82 |
MET824K(J)120080 |
20.0 |
8.0 |
0.6 |
105 |
1.0 |
MET105K(J)120080 |
20.0 |
8.5 |
0.6 |
125 |
1.2 |
MET125K(J)120090 |
20.0 |
9.0 |
0.6 |
155 |
1.5 |
MET155K(J)120100 |
20.0 |
10.0 |
0.6 |
185 |
1.8 |
MET185K(J)120110 |
20.0 |
10.5 |
0.8 |
225 |
2.2 |
MET225K(J)120120 |
20.0 |
11.5 |
0.8 |
275 |
2.7 |
MET275K(J)125110 |
25.0 |
11.0 |
0.8 |
335 |
3.3 |
MET335K(J)125120 |
25.0 |
12.0 |
0.8 |
395 |
3.9 |
MET395K(J)125130 |
25.0 |
12.5 |
0.8 |
475 |
4.7 |
MET475K(J)125140 |
25.0 |
14.0 |
0.8 |
565 |
5.6 |
MET565K(J)125150 |
25.0 |
15.0 |
0.8 |
475 |
4.7 |
MET475K(J)130120 |
30.0 |
12.5 |
0.8 |
565 |
5.6 |
MET565K(J)130130 |
30.0 |
13.0 |
0.8 |
685 |
6.8 |
MET685K(J)130140 |
30.0 |
14.5 |
0.8 |
825 |
8.2 |
MET825K(J)130160 |
30.0 |
15.5 |
0.8 |
106 |
10.0 |
MET106K(J)130170 |
30.0 |
17.5 |
0.8 |
126 |
12.0 |
MET126K(J)130190 |
30.0 |
19.0 |
0.8 |
156 |
15.0 |
MET156K(J)130210 |
30.0 |
21.0 |
1.0 |
186 |
18.0 |
MET186K(J)145180 |
45.0 |
17.5 |
1.0 |
206 |
20.0 |
MET206K(J)145180 |
45.0 |
18.5 |
1.0 |
226 |
22.0 |
MET226K(J)145190 |
45.0 |
19.5 |
1.0 |
336 |
33.0 |
MET336K(J)145230 |
45.0 |
23.5 |
1.0 |
250VDC |
|||||
104 |
0.1 |
MET104K(J)215050 |
15.0 |
5.5 |
0.6 |
124 |
0.12 |
MET124K(J)215060 |
15.0 |
5.5 |
0.6 |
154 |
0.15 |
MET154K(J)215060 |
15.0 |
6.0 |
0.6 |
184 |
0.18 |
MET184K(J)215060 |
15.0 |
6.5 |
0.6 |
224 |
0.22 |
MET224K(J)215070 |
15.0 |
7.0 |
0.6 |
274 |
0.27 |
MET274K(J)215080 |
15.0 |
7.5 |
0.6 |
334 |
0.33 |
MET334K(J)215080 |
15.0 |
8.0 |
0.6 |
394 |
0.39 |
MET394K(J)215090 |
15.0 |
9.0 |
0.6 |
474 |
0.47 |
MET474K(J)215090 |
15.0 |
9.5 |
0.6 |
564 |
0.56 |
MET564K(J)215100 |
15.0 |
10.0 |
0.6 |
274 |
0.27 |
MET274K(J)220070 |
20.0 |
6.5 |
0.6 |
334 |
0.33 |
MET334K(J)220070 |
20.0 |
7.0 |
0.6 |
394 |
0.39 |
MET394K(J)220070 |
20.0 |
7.5 |
0.6 |
684 |
0.68 |
MET684K(J)220090 |
20.0 |
9.0 |
0.6 |
824 |
0.82 |
MET824K(J)220100 |
20.0 |
10.0 |
0.6 |
105 |
1.0 |
MET105K(J)225090 |
25.0 |
9.0 |
0.6 |
125 |
1.2 |
MET125K(J)225100 |
25.0 |
10.0 |
0.6 |
155 |
1.5 |
MET155K(J)225110 |
25.0 |
10.5 |
0.8 |
185 |
1.8 |
MET185K(J)225120 |
25.0 |
11.5 |
0.8 |
225 |
2.2 |
MET225K(J)230110 |
30.0 |
11.0 |
0.8 |
275 |
2.7 |
MET275K(J)230120 |
30.0 |
12.0 |
0.8 |
335 |
3.3 |
MET335K(J)330130 |
30.0 |
13.5 |
0.8 |
475 |
4.7 |
MET475K(J)235140 |
35.0 |
14.0 |
0.8 |
565 |
5.6 |
MET565K(J)235150 |
35.0 |
15.0 |
0.8 |
685 |
6.8 |
MET685K(J)235160 |
35.0 |
16.5 |
0.8 |
825 |
8.2 |
MET825K(J)335180 |
35.0 |
18.0 |
0.8 |
106 |
10.0 |
MET106K(J)235200 |
35.0 |
19.5 |
0.8 |
126 |
12.0 |
MET126K(J)245180 |
45.0 |
18.5 |
0.8 |
156 |
15.0 |
MET156K(J)245200 |
45.0 |
20.5 |
1.0 |
186 |
18.0 |
MET186K(J)345220 |
45.0 |
22.5 |
1.0 |
226 |
22.0 |
MET226K(J)245240 |
45.0 |
24.5 |
1.0 |
400VDC |
|||||
563 |
0.056 |
MET563K(J)415060 |
15.0 |
5.5 |
0.6 |
683 |
0.068 |
MET683K(J)415060 |
15.0 |
6.0 |
0.6 |
823 |
0.082 |
MET823K(J)415060 |
15.0 |
6.5 |
0.6 |
104 |
0.1 |
MET104K(J)415070 |
15.0 |
7.0 |
0.6 |
124 |
0.12 |
MET124K(J)415070 |
15.0 |
7.5 |
0.6 |
184 |
0.18 |
MET184K(J)415090 |
15.0 |
8.5 |
0.6 |
224 |
0.22 |
MET224K(J)415090 |
15.0 |
9.5 |
0.6 |
184 |
0.18 |
MET184K(J)420070 |
20.0 |
6.5 |
0.6 |
224 |
0.22 |
MET224K(J)420070 |
20.0 |
7.0 |
0.6 |
274 |
0.27 |
MET274K(J)420080 |
20.0 |
8.0 |
0.6 |
334 |
0.33 |
MET334K(J)420080 |
20.0 |
8.5 |
0.6 |
394 |
0.39 |
MET394K(J)420090 |
20.0 |
9.0 |
0.6 |
474 |
0.47 |
MET474K(J)420100 |
20.0 |
10.0 |
0.6 |
564 |
0.56 |
MET564K(J)420110 |
20.0 |
10.5 |
0.8 |
684 |
0.68 |
MET684K(J)420120 |
20.0 |
11.5 |
0.8 |
824 |
0.82 |
MET824K(J)420130 |
20.0 |
12.5 |
0.8 |
105 |
1.0 |
MET105K(J)420140 |
20.0 |
14.0 |
0.8 |
125 |
1.2 |
MET125K(J)425130 |
25.0 |
13.0 |
0.8 |
155 |
1.5 |
MET155K(J)425140 |
25.0 |
14.0 |
0.8 |
185 |
1.8 |
MET185K(J)425150 |
25.0 |
15.0 |
0.8 |
225 |
2.2 |
MET225K(J)430150 |
30.0 |
14.5 |
0.8 |
275 |
2.7 |
MET275K(J)430160 |
30.0 |
16.0 |
0.8 |
335 |
3.3 |
MET335K(J)435160 |
35.0 |
15.5 |
0.8 |
395 |
3.9 |
MET395K(J)435170 |
35.0 |
17.0 |
0.8 |
475 |
4.7 |
MET475K(J)435180 |
35.0 |
18.5 |
0.8 |
565 |
5.6 |
MET565K(J)435200 |
35.0 |
20.0 |
0.8 |
685 |
6.8 |
MET685K(J)435220 |
35.0 |
21.5 |
1.0 |
825 |
8.2 |
MET825K(J)435240 |
35.0 |
23.5 |
1.0 |
630VDC |
|||||
153 |
0.015 |
MET153K(J)615060 |
15.0 |
6.0 |
0.6 |
183 |
0.018 |
MET183K(J)615060 |
15.0 |
6.5 |
0.6 |
223 |
0.022 |
MET223K(J)615070 |
15.0 |
7.0 |
0.6 |
273 |
0.027 |
MET273K(J)615060 |
15.0 |
6.5 |
0.6 |
333 |
0.033 |
MET333K(J)615070 |
15.0 |
7.0 |
0.6 |
393 |
0.039 |
MET393K(J)615070 |
15.0 |
7.5 |
0.6 |
473 |
0.047 |
MET473K(J)615070 |
15.0 |
6.5 |
0.6 |
563 |
0.056 |
MET563K(J)615070 |
15.0 |
7.0 |
0.6 |
683 |
0.068 |
MET683K(J)615080 |
15.0 |
7.5 |
0.6 |
823 |
0.082 |
MET823K(J)615080 |
15.0 |
8.0 |
0.6 |
104 |
0.1 |
MET104K(J)615090 |
15.0 |
9.0 |
0.6 |
124 |
0.12 |
MET124K(J)620090 |
20.0 |
9.0 |
0.6 |
154 |
0.15 |
MET154K(J)620080 |
20.0 |
8.0 |
0.6 |
184 |
0.18 |
MET184K(J)620090 |
20.0 |
8.5 |
0.6 |
224 |
0.22 |
MET224K(J)620090 |
20.0 |
9.5 |
0.6 |
274 |
0.27 |
MET274K(J)620100 |
20.0 |
10.0 |
0.6 |
334 |
0.33 |
MET334K(J)620110 |
20.0 |
11.0 |
0.8 |
394 |
0.39 |
MET394K(J)620120 |
20.0 |
12.0 |
0.8 |
474 |
0.47 |
MET474K(J)620130 |
20.0 |
13.0 |
0.8 |
564 |
0.56 |
MET564K(J)625120 |
25.0 |
11.5 |
0.8 |
684 |
0.68 |
MET684K(J)625130 |
25.0 |
12.5 |
0.8 |
824 |
0.82 |
MET824K(J)630120 |
30.0 |
12.0 |
0.8 |
105 |
1.0 |
MET105K(J)630130 |
30.0 |
13.5 |
0.8 |
125 |
1.2 |
MET125K(J)630140 |
30.0 |
14.5 |
0.8 |
155 |
1.5 |
MET155K(J)630160 |
30.0 |
16.0 |
0.8 |
185 |
1.8 |
MET185K(J)635150 |
35.0 |
15.5 |
0.8 |
225 |
2.2 |
MET225K(J)635170 |
35.0 |
17.0 |
0.8 |
275 |
2.7 |
MET275K(J)635190 |
35.0 |
18.5 |
0.8 |
335 |
3.3 |
MET335K(J)635200 |
35.0 |
20.5 |
1.0 |
395 |
3.9 |
MET395K(J)635220 |
35.0 |
22.0 |
1.0 |
475 |
4.7 |
MET475K(J)635240 |
35.0 |
24.0 |
1.0 |
Please Choosing the CBB21 if the rated voltage is higher than 250V
P.S.:
All the dimensions above are for your reference, the real ones are according to our specification documents; Please contact with us if you have any other questions such as the Absolute Rating etc.
