GB6349-86(IEC384-11)
■ Structures
Material：Polyester Film
Material: Polypropylene film
Electrode: Aluminum Foil
Enveloped with Fire-proof Epoxide Resin (UL94 V-0)
Pin: With copper-clad steel leads or Copper wire.
■ Using area
DC and Low pulse circuit.
E.G.Low frequency filter,block DC and by-pass Etc.
Please do not use in the AC, filtering, Oscillation and high frequency circuits.
■ Features:
Small size with high stability and reliability
■ Specifications
Climate Conditions |
-40--+85℃ |
|
Rated Voltage vdc |
100V、250V、400V、630V、1000V |
|
Capacitance Tolerance |
0.001µF-0.47µF |
|
Capacitance Tolerance |
±5% ±10% |
|
Voltage Proof |
2.0UR （5S） |
|
Insulation Resistance and Time Consistence |
≤0.1µF |
≥30000MΩ |
＞0.1µF |
≥10000S （MΩ.µF） |
|
Dissipation Factor |
≤0.01 1kHz 20℃ |
|
Climate |
Temperature：40±2℃ |
|
Resistance |
+85℃，1000h |
|
■ Explanation to the voltage code
Code |
1H |
1J |
2A |
2E |
2G |
2H |
2J |
3A |
Voltage V |
50 |
63 |
100 |
250 |
400 |
500 |
630 |
1000 |
■ The exchanging of VAC and VDC
直流电压 |
100VDC |
250VDC |
400VDC |
630VDC |
1000V |
交流电压 |
63VAC |
160VAC |
200VAC |
220VAC |
250VAC |
■ The Relationship of AC Voltage Proof and Frequency
100VDC/63VAC 250VDC/160VAC
400VDC/200VAC 630VDC/220VAC

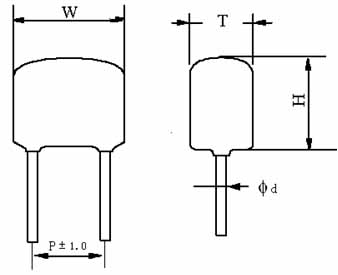

■ Outline Drawing
■ Structure
■ Characteristic Graph

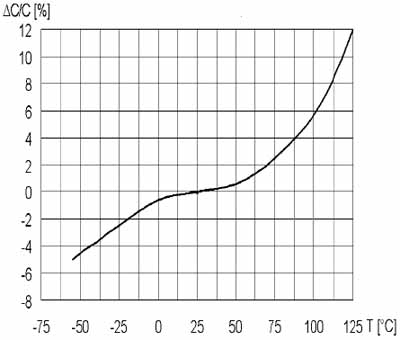

Capacitance and Temperature Graph

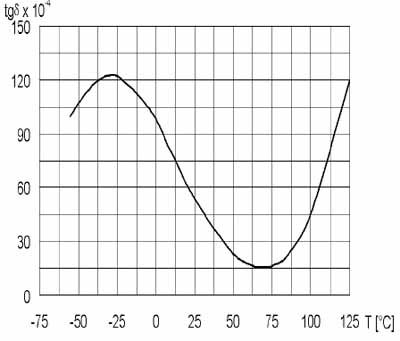

Dissipation Factor and Temperature Graph

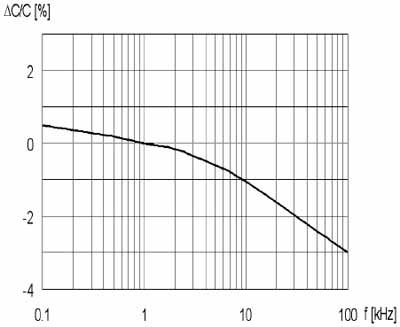

Capacitance and Frequency Graph

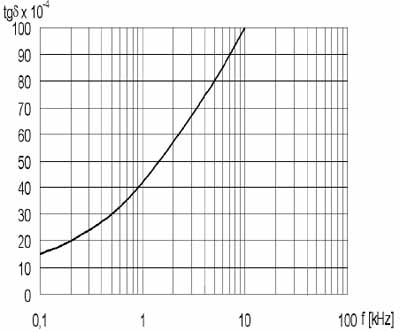

Dissipation Factor and Frequency Graph

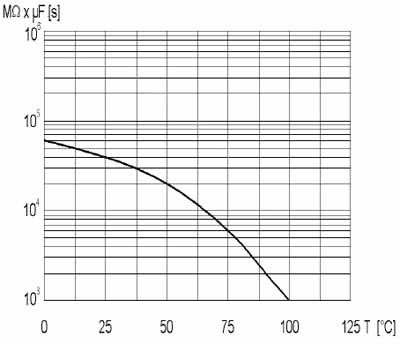

Insulation Resistance and Temperature Graph

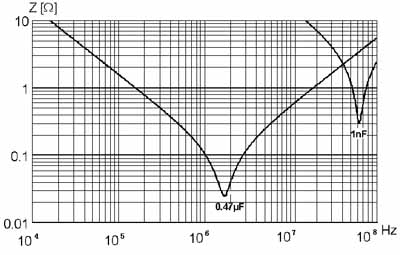

Impedance and Frequency Graph
CL11（PEI）
Products Type |
Item’s No. |
Dimensions（mm） |
|||
Capacitance µF |
Wmax |
T max |
H max |
P ±1.0 |
|
50VDC/100VDC |
||||||
102 |
0.001 |
PEI102J(K)10604110 |
6.0 |
3.5 |
10.5 |
3.5 |
122 |
0.0012 |
PEI122J(K)10604110 |
6.0 |
3.5 |
10.5 |
3.5 |
152 |
0.0015 |
PEI152J(K)10604110 |
6.0 |
3.5 |
10.5 |
3.5 |
182 |
0.0018 |
PEI182J(K)10604110 |
6.0 |
3.5 |
10.5 |
3.5 |
222 |
0.0022 |
PEI222J(K)10604110 |
6.0 |
3.5 |
10.5 |
3.5 |
272 |
0.0027 |
PEI272J(K)10604110 |
6.0 |
3.5 |
10.5 |
3.5 |
332 |
0.0033 |
PEI332J(K)10604110 |
6.0 |
3.5 |
10.5 |
3.5 |
392 |
0.0039 |
PEI392J(K)10604110 |
6.0 |
3.5 |
10.5 |
3.5 |
472 |
0.0047 |
PEI472J(K)10604110 |
6.0 |
3.5 |
10.5 |
3.5 |
562 |
0.0056 |
PEI562J(K)10604110 |
6.0 |
3.5 |
10.5 |
3.5 |
682 |
0.0068 |
PEI682J(K)10604120 |
6.0 |
4.0 |
11.5 |
5.0 |
822 |
0.0082 |
PEI822J(K)10704120 |
6.5 |
4.0 |
11.5 |
5.0 |
103 |
0.01 |
PEI103J(K)10704120 |
6.5 |
4.0 |
11.5 |
5.0 |
123 |
0.012 |
PEI123J(K)10704120 |
6.5 |
4.0 |
11.5 |
5.0 |
153 |
0.015 |
PEI153J(K)10804120 |
7.3 |
4.0 |
12.0 |
5.0 |
183 |
0.018 |
PEI183J(K)10804120 |
7.5 |
4.0 |
12.0 |
5.0 |
223 |
0.022 |
PEI223J(K)10805120 |
8.0 |
4.5 |
12.0 |
5.0 |
273 |
0.027 |
PEI273J(K)10805120 |
8.0 |
5.0 |
12.0 |
5.0 |
333 |
0.033 |
PEI333J(K)11005120 |
9.5 |
5.0 |
12.0 |
5.0 |
393 |
0.039 |
PEI393J(K)11005120 |
9.5 |
5.0 |
12.0 |
5.0 |
473 |
0.047 |
PEI473J(K)11005120 |
9.5 |
5.0 |
12.0 |
5.0 |
563 |
0.056 |
PEI563J(K)11006130 |
10.0 |
5.5 |
12.5 |
7.5 |
683 |
0.068 |
PEI683J(K)11006130 |
10.0 |
5.5 |
12.5 |
7.5 |
823 |
0.082 |
PEI823J(K)11107130 |
11.0 |
6.5 |
12.5 |
7.5 |
104 |
0.1 |
PEI104J(K)11207150 |
11.5 |
6.5 |
14.5 |
7.5 |
124 |
0.12 |
PEI124J(K)11307170 |
12.5 |
7.0 |
16.5 |
8.0 |
154 |
0.15 |
PEI154J(K)11307170 |
12.5 |
7.0 |
16.5 |
8.0 |
184 |
0.18 |
PEI184J(K)11308170 |
13.0 |
7.5 |
16.5 |
8.0 |
224 |
0.22 |
PEI224J(K)11408180 |
14.0 |
8.0 |
17.5 |
9.0 |
334 |
0.33 |
PEI334J(K)11609200 |
16.0 |
8.5 |
19.5 |
10.1 |
394 |
0.39 |
PEI394J(K)11610220 |
16.0 |
10.0 |
21.5 |
10.0 |
474 |
0.47 |
PEI474J(K)11610220 |
16.0 |
10.0 |
21.5 |
10.0 |
250V |
||||||
102 |
0.001 |
PEI102J(K)20704110 |
6.5 |
4.0 |
11.0 |
3.5 |
122 |
0.0012 |
PEI122J(K)20704110 |
6.5 |
4.0 |
11.0 |
3.5 |
152 |
0.0015 |
PEI152J(K)20704110 |
6.5 |
4.0 |
11.0 |
3.5 |
182 |
0.0018 |
PEI182J(K)20704110 |
6.5 |
4.0 |
11.0 |
3.5 |
222 |
0.0022 |
PEI222J(K)20704110 |
6.5 |
4.0 |
11.0 |
3.5 |
272 |
0.0027 |
PEI272J(K)20704110 |
6.5 |
4.0 |
11.0 |
3.5 |
332 |
0.0033 |
PEI332J(K)20704110 |
6.5 |
4.0 |
11.0 |
3.5 |
392 |
0.0039 |
PEI392J(K)20704110 |
6.5 |
4.0 |
11.0 |
3.5 |
472 |
0.0047 |
PEI472J(K)20704110 |
6.5 |
4.0 |
11.0 |
3.5 |
562 |
0.0056 |
PEI562J(K)20704110 |
7.0 |
4.0 |
11.0 |
5.0 |
682 |
0.0068 |
PEI682J(K)20704110 |
7.0 |
4.0 |
11.0 |
5.0 |
822 |
0.0082 |
PEI822J(K)20804130 |
8.0 |
4.0 |
13.0 |
5.0 |
103 |
0.01 |
PEI103J(K)20804130 |
8.0 |
4.0 |
13.0 |
5.0 |
123 |
0.012 |
PEI123J(K)20905140 |
8.5 |
5.0 |
13.5 |
5.0 |
153 |
0.015 |
PEI153J(K)20905140 |
8.5 |
5.0 |
13.5 |
5.0 |
183 |
0.018 |
PEI183J(K)20906140 |
9.0 |
5.7 |
14.0 |
5.0 |
223 |
0.022 |
PEI223J(K)20906140 |
9.0 |
6.0 |
14.0 |
6.5 |
273 |
0.027 |
PEI273J(K)21006150 |
10.0 |
6.0 |
15.0 |
6.5 |
333 |
0.033 |
PEI333J(K)21007150 |
10.0 |
6.5 |
15.0 |
6.5 |
393 |
0.039 |
PEI393J(K)21207160 |
11.5 |
7.0 |
15.5 |
6.5 |
473 |
0.047 |
PEI473J(K)21309180 |
12.5 |
8.5 |
17.5 |
6.5 |
563 |
0.056 |
PEI563J(K)21409210 |
14.0 |
8.5 |
21.0 |
7.5 |
683 |
0.068 |
PEI683J(K)21409210 |
14.0 |
8.5 |
21.0 |
7.5 |
823 |
0.082 |
PEI823J(K)21610220 |
16.0 |
9.5 |
22.0 |
8.5 |
104 |
0.1 |
PEI104J(K)21710220 |
16.5 |
9.5 |
22.0 |
8.5 |
124 |
0.12 |
PEI124J(K)21711220 |
17.0 |
11 |
22 |
9.0 |
154 |
0.15 |
PEI154J(K)21711220 |
17.0 |
11.0 |
22.0 |
10.5 |
400V |
||||||
102 |
0.001 |
PEI102J(K)40704120 |
7.0 |
4.0 |
12.0 |
4.0 |
122 |
0.0012 |
PEI122J(K)40704120 |
7.0 |
4.0 |
12.0 |
4.0 |
152 |
0.0015 |
PEI152J(K)40804130 |
7.5 |
4.0 |
12.5 |
4.0 |
182 |
0.0018 |
PEI182J(K)40805130 |
7.5 |
5.0 |
12.5 |
4.0 |
222 |
0.0022 |
PEI222J(K)40805130 |
7.5 |
5.0 |
12.5 |
4.0 |
272 |
0.0027 |
PEI272J(K)40805140 |
8.0 |
5.0 |
13.5 |
6.0 |
332 |
0.0033 |
PEI332J(K)40805140 |
8.0 |
5.0 |
13.5 |
6.0 |
393 |
0.0039 |
PEI392J(K)40906140 |
9.0 |
6.0 |
14.0 |
6.0 |
472 |
0.0047 |
PEI472J(K)40906140 |
9.0 |
6.0 |
14.0 |
6.0 |
562 |
0.0056 |
PEI562J(K)41006140 |
9.5 |
6.0 |
14.0 |
6.0 |
682 |
0.0068 |
PEI682J(K)41006140 |
9.5 |
6.0 |
14.0 |
6.0 |
822 |
0.0082 |
PEI822J(K)41107150 |
10.5 |
6.5 |
15.0 |
7.0 |
103 |
0.01 |
PEI103J(K)41107150 |
10.5 |
6.5 |
15.0 |
7.0 |
123 |
0.012 |
PEI123J(K)41208160 |
12.0 |
8.0 |
15.5 |
7.0 |
153 |
0.015 |
PEI153J(K)41208160 |
12.0 |
8.0 |
15.5 |
7.0 |
183 |
0.018 |
PEI183J(K)41209190 |
12.0 |
8.5 |
18.5 |
7.0 |
223 |
0.022 |
PEI223J(K)41209190 |
12.0 |
8.5 |
18.5 |
7.0 |
273 |
0.027 |
PEI273J(K)41409210 |
13.5 |
8.5 |
21.0 |
9.0 |
333 |
0.033 |
PEI333J(K)41409210 |
13.5 |
8.5 |
21.0 |
9.0 |
393 |
0.039 |
PEI393J(K)41610220 |
15.5 |
9.5 |
22.0 |
9.0 |
473 |
0.047 |
PEI473J(K)41610220 |
15.5 |
9.5 |
22.0 |
9.0 |
563 |
0.056 |
PEI563J(K)41812240 |
17.5 |
11.5 |
23.5 |
9.0 |
683 |
0.068 |
PEI683J(K)41812240 |
17.5 |
11.5 |
23.5 |
9.0 |
823 |
0.082 |
PEI823J(K)41911250 |
19.0 |
11.0 |
24.5 |
12 |
104 |
0.1 |
PEI104J(K)41911250 |
19.0 |
12.0 |
24.5 |
12 |
630V |
||||||
102 |
0.001 |
PEI102J(K)60805130 |
7.5 |
4.5 |
12.5 |
5.0 |
122 |
0.0012 |
PEI122J(K)60805130 |
7.5 |
4.5 |
12.5 |
5.0 |
152 |
0.0015 |
PEI152J(K)60805130 |
7.5 |
4.5 |
12.5 |
5.0 |
182 |
0.0018 |
PEI182J(K)60805130 |
7.5 |
4.5 |
12.5 |
5.0 |
222 |
0.0022 |
PEI222J(K)60905130 |
8.5 |
5.0 |
13.0 |
5.0 |
272 |
0.0027 |
PEI272J(K)60905140 |
9.0 |
5.0 |
13.5 |
5.0 |
332 |
0.0033 |
PEI332J(K)60905140 |
9.0 |
5.0 |
13.5 |
5.0 |
392 |
0.0039 |
PEI392J(K)60905140 |
9.0 |
5.0 |
13.5 |
5.0 |
472 |
0.0047 |
PEI472J(K)61006140 |
10.0 |
5.5 |
14.0 |
7.0 |
562 |
0.0056 |
PEI562J(K)61006150 |
10.0 |
6.0 |
15.0 |
7.0 |
682 |
0.0068 |
PEI682J(K)61106150 |
11.0 |
6.0 |
15.0 |
7.0 |
822 |
0.0082 |
PEI822J(K)61107150 |
11.0 |
6.5 |
15.0 |
7.0 |
103 |
0.01 |
PEI103J(K)61108160 |
11.0 |
7.5 |
15.5 |
7.0 |
123 |
0.012 |
PEI123J(K)61108160 |
11.0 |
7.5 |
15.5 |
7.0 |
153 |
0.015 |
PEI153J(K)61408180 |
13.5 |
8.0 |
18.0 |
9.0 |
183 |
0.018 |
PEI183J(K)61408180 |
13.5 |
8.0 |
18.0 |
9.0 |
223 |
0.022 |
PEI223J(K)61509190 |
14.5 |
8.5 |
18.5 |
9.0 |
273 |
0.027 |
PEI273J(K)61509190 |
14.5 |
8.5 |
18.5 |
9.0 |
333 |
0.033 |
PEI333J(K)61509190 |
15.0 |
9.0 |
19.0 |
9.5 |
393 |
0.039 |
PEI393J(K)61509190 |
15.0 |
9.0 |
19.0 |
9.5 |
473 |
0.047 |
PEI473J(K)61509190 |
15.0 |
9.0 |
19.0 |
9.5 |
1000V |
||||||
102 |
0.001 |
PEI102J(K)A0604120 |
5.5 |
3.5 |
11.5 |
4.0 |
122 |
0.0012 |
PEI122J(K)A0604120 |
5.5 |
3.5 |
11.5 |
4.0 |
152 |
0.0015 |
PEI152J(K)A0604120 |
5.5 |
3.5 |
11.5 |
4.0 |
182 |
0.0018 |
PEI182J(K)A0604120 |
5.5 |
3.5 |
11.5 |
4.0 |
222 |
0.0022 |
PEI222J(K)A0604120 |
6.0 |
3.5 |
11.5 |
4.0 |
272 |
0.0027 |
PEI272J(K)A0604130 |
7.0 |
4.0 |
12.5 |
5.0 |
332 |
0.0033 |
PEI332J(K)A0704130 |
7.0 |
4.0 |
12.5 |
5.0 |
392 |
0.0039 |
PEI392J(K)A0806140 |
8.0 |
5.5 |
13.5 |
5.5 |
472 |
0.0047 |
PEI472J(K)A0806140 |
8.0 |
5.5 |
13.5 |
5.5 |
562 |
0.0056 |
PEI562J(K)A0806150 |
8.0 |
6.0 |
14.5 |
5.5 |
682 |
0.0068 |
PEI682J(K)A09006150 |
9.0 |
5.5 |
14.5 |
5.5 |
822 |
0.0082 |
PEI822J(K)A0906150 |
9.0 |
5.5 |
15.0 |
5.5 |
103 |
0.01 |
PEI103J(K)A1208190 |
11.5 |
7.5 |
18.5 |
7.5 |
P.S.:
All the dimensions above are for your reference, the real ones are according to our specification documents; Please contact with us if you have any other questions such as the Absolute Rating etc.
