GB10188(IEC384-13)
■ Structures
Material: Polypropylene film
Metallized Vacuum Evaporated Layer and Aluminum Foil
Enveloped with Fire-proof Epoxide Resin (UL94 V-0)
■ Using area
Fit for high impulse and Heavy current circuit ,e.g. monitor,electronic
ballast and energy saving lamps
■ Features:
With good self-healing effective and low loss in circuit
Have well voltage proof features under the high frequency AC current.
It is series Capacitors with
high rated voltage
■ Specifications
Climate Conditions |
-40--+85℃/110℃ |
|
Rated Voltage Vdc |
1000V、1250V、1600V、2000V |
|
Capacitance Tolerance |
0.001µF-0.47µF |
|
Capacitance Tolerance |
(±2%) (±5%) (±10%) |
|
Voltage Proof |
2.0U （5S） |
|
Insulation Resistance and Time Consistence |
≤0.1µF |
≥30000MΩ |
＞0.1µF |
≥3000S（MΩ.µF） |
|
Dissipation Factor |
≤0.0010 10KHz 20℃ |
|
Climate |
There is no visible damage with the clearly mark. |
|
Resistance |
+85℃/110℃，1000h |
|
■ The exchanging of VAC and VDC
Direct Current |
1000VDC |
1250VDC |
1600VDC |
2000VDC |
Alternate Current |
400VAC |
450VAC |
500VAC |
600VAC |
■ The Relationship of AC Voltage Proof and Frequency
1000VDC/400VAC 1250VDC/450VAC
1600VDC/500VAC 2000VDC/600VAC

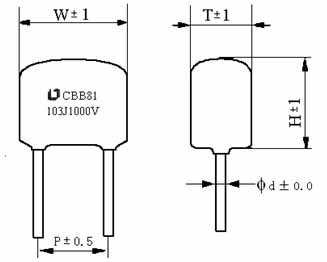

■ Outline Drawing
Pitch mm |
10 |
15 |
20 |
25 |
30 |
The Diameter of the Pin mm |
0.6 |
0.8 |
|||

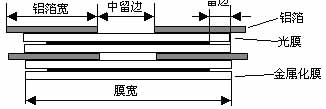

■ Structure
■ Characteristic Graph

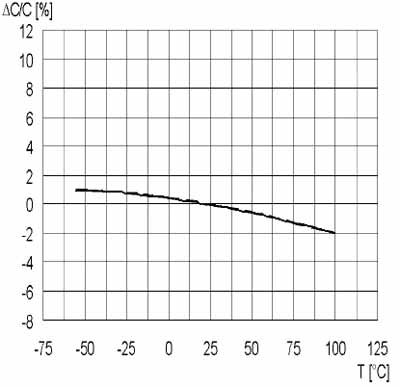

Capacitance and Temperature Graph

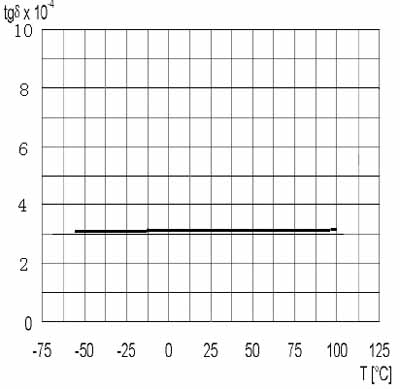

Dissipation Factor and Temperature Graph

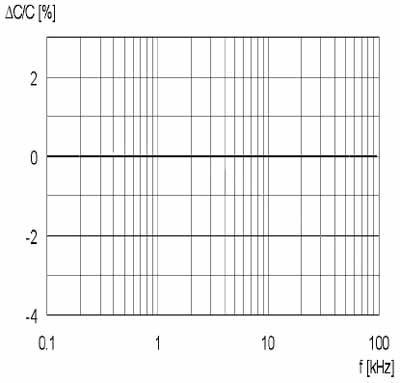

Capacitance and Frequency Graph

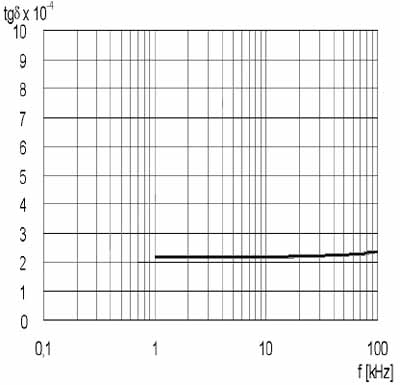

Dissipation Factor and Frequency Graph

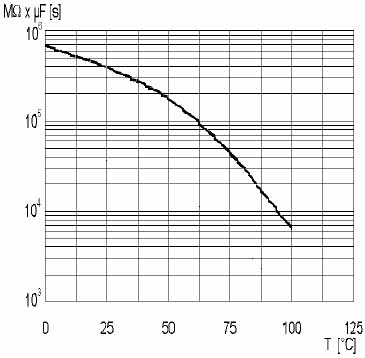

Insulation Resistance and Temperature Graph

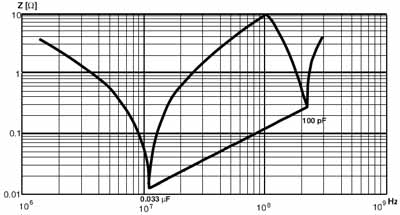

Impedance and Frequency Graph
CBB81（PPS）
1000VDC |
||||||
Products Type |
Item’s No. |
Dimensions（mm） |
||||
Capacitance µF |
Wmax |
T max |
H max |
P ±1.0 |
d ±0.05 |
|
152 |
0.0015 |
PPS152K(J)A1304070 |
13.0 |
4.0 |
7.5 |
10.0 |
0.6 |
182 |
0.0018 |
PPS182K(J)A1304080 |
13.0 |
4.0 |
7.5 |
10.0 |
0.6 |
222 |
0.0022 |
PPS222K(J)A1304080 |
13.0 |
4.5 |
8.0 |
10.0 |
0.6 |
272 |
0.0027 |
PPS272K(J)A1305090 |
13.0 |
5.0 |
9.0 |
10.0 |
0.6 |
332 |
0.0033 |
PPS332K(J)A1305100 |
13.0 |
5.0 |
10.0 |
10.0 |
0.6 |
392 |
0.0039 |
PPS392K(J)A1305100 |
13.0 |
5.5 |
10.5 |
10.0 |
0.6 |
472 |
0.0047 |
PPS472K(J)A1306110 |
13.0 |
6.0 |
11.0 |
10.0 |
0.6 |
562 |
0.0056 |
PPS562K(J)A1306110 |
13.0 |
6.5 |
11.5 |
10.0 |
0.6 |
682 |
0.0068 |
PPS682K(J)A1305100 |
13.0 |
5.5 |
10.5 |
10.0 |
0.6 |
822 |
0.0082 |
PPS822K(J)A1306110 |
13.0 |
6.0 |
11.0 |
10.0 |
0.6 |
103 |
0.01 |
PPS103K(J)A1306110 |
13.0 |
6.5 |
11.5 |
10.0 |
0.6 |
1000VDC/1250VDC |
|||||||
102 |
0.001 |
PPS102K(J)B1905100 |
19.0 |
6.0 |
10.0 |
15.0 |
0.8 |
122 |
0.0012 |
PPS122K(J)B1905100 |
19.0 |
6.0 |
10.5 |
15.0 |
0.8 |
152 |
0.0015 |
PPS152K(J)B1906110 |
19.0 |
6.0 |
11.0 |
15.0 |
0.8 |
182 |
0.0018 |
PPS182K(J)B1906110 |
19.0 |
6.5 |
11.5 |
15.0 |
0.8 |
222 |
0.0022 |
PPS222K(J)B1907120 |
19.0 |
7.0 |
12.5 |
15.0 |
0.8 |
272 |
0.0027 |
PPS272K(J)B1908130 |
19.0 |
8.0 |
13.0 |
15.0 |
0.8 |
332 |
0.0033 |
PPS332K(J)B1909140 |
19.0 |
8.5 |
14.0 |
15.0 |
0.8 |
392 |
0.0039 |
PPS392K(J)B1909160 |
19.0 |
8.5 |
15.5 |
15.0 |
0.8 |
472 |
0.0047 |
PPS472K(J)B1910170 |
19.0 |
10.0 |
17.0 |
15.0 |
0.8 |
562 |
0.0056 |
PPS562K(J)B1911180 |
19.0 |
11.0 |
17.5 |
15.0 |
0.8 |
562 |
0.0056 |
PPS562K(J)B2407130 |
24.0 |
7.5 |
13.0 |
20.0 |
0.8 |
682 |
0.0068 |
PPS682K(J)B1907130 |
19.0 |
7.0 |
12.5 |
15.0 |
0.8 |
682 |
0.0068 |
PPS682K(J)B2408150 |
24.0 |
8.0 |
15.0 |
20.0 |
0.8 |
822 |
0.0082 |
PPS822K(J)B1908130 |
19.0 |
8.0 |
13.5 |
15.0 |
0.8 |
822 |
0.0082 |
PPS822K(J)B2409160 |
24.0 |
8.6 |
15.6 |
20.0 |
0.8 |
103 |
0.01 |
PPS103K(J)B1908150 |
19.0 |
8.0 |
15.0 |
15.0 |
0.8 |
103 |
0.01 |
PPS103K(J)B2410160 |
24.0 |
9.5 |
16.5 |
20.0 |
0.8 |
123 |
0.012 |
PPS123K(J)B2411170 |
24.0 |
10.5 |
17.5 |
20.0 |
0.8 |
153 |
0.015 |
PPS153K(J)B2412190 |
24.0 |
12.0 |
18.5 |
20.0 |
0.8 |
183 |
0.018 |
PPS183K(J)B2412210 |
24.0 |
12.5 |
20.5 |
20.0 |
0.8 |
223 |
0.022 |
PPS223K(J)B2414220 |
24.0 |
13.5 |
22.0 |
20.0 |
0.8 |
273 |
0.027 |
PPS273K(J)B2415230 |
24.0 |
15.0 |
23.5 |
20.0 |
0.8 |
183 |
0.018 |
PPS183K(J)B2909170 |
29.0 |
9.0 |
17.5 |
25.0 |
0.8 |
223 |
0.022 |
PPS223K(J)B2910190 |
29.0 |
10.5 |
19.0 |
25.0 |
0.8 |
273 |
0.027 |
PPS273K(J)B2909180 |
29.0 |
9.5 |
18.0 |
25.0 |
0.8 |
333 |
0.033 |
PPS333K(J)B2910190 |
29.0 |
10.5 |
19.0 |
25.0 |
0.8 |
393 |
0.039 |
PPS393K(J)B2911200 |
29.0 |
11.5 |
20.0 |
25.0 |
0.8 |
473 |
0.047 |
PPS473K(J)B2913210 |
29.0 |
12.5 |
21.0 |
25.0 |
0.8 |
563 |
0.056 |
PPS563K(J)B2914220 |
29.0 |
14.0 |
22.0 |
25.0 |
0.8 |
683 |
0.068 |
PPS683K(J)B2915240 |
29.0 |
15.1 |
23.5 |
25.0 |
0.8 |
823 |
0.082 |
PPS823K(J)B2917250 |
29.0 |
17.0 |
25.5 |
25.0 |
0.8 |
104 |
0.1 |
PPS104K(J)B3412200 |
35.0 |
11.5 |
20.0 |
30.0 |
0.8 |
124 |
0.12 |
PPS124K(J)B3413210 |
35.0 |
13.0 |
21.0 |
30.0 |
0.8 |
154 |
0.15 |
PPS154K(J)B3414230 |
35.0 |
14.5 |
23.0 |
30.0 |
0.8 |
184 |
0.18 |
PPS184K(J)B3415250 |
35.0 |
15.0 |
25.0 |
30.0 |
0.8 |
224 |
0.22 |
PPS224K(J)B3417270 |
35.0 |
17.0 |
27.0 |
30.0 |
0.8 |
274 |
0.27 |
PPS274K(J)B3419290 |
35.0 |
19.0 |
29.0 |
30.0 |
0.8 |
334 |
0.33 |
PPS334K(J)B3421310 |
35.0 |
21.0 |
31.0 |
30.0 |
0.8 |
394 |
0.39 |
PPS394K(J)B3423330 |
35.0 |
23.0 |
33.0 |
30.0 |
0.8 |
474 |
0.47 |
PPS474K(J)B3426350 |
35.0 |
25.5 |
35.5 |
30.0 |
0.8 |
1600VDC |
|||||||
102 |
0.001 |
PPS102K(J)C1906110 |
19.0 |
6.5 |
11.5 |
15.0 |
0.8 |
122 |
0.0012 |
PPS152K(J)C1907120 |
19.0 |
7.0 |
12.5 |
15.0 |
0.8 |
152 |
0.0015 |
PPS152K(J)C1906110 |
19.0 |
6.0 |
11.0 |
15.0 |
0.8 |
182 |
0.0018 |
PPS182K(J)C1906110 |
19.0 |
6.5 |
11.5 |
15.0 |
0.8 |
222 |
0.0022 |
PPS222K(J)C1907120 |
19.0 |
7.0 |
12.5 |
15..0 |
0.8 |
272 |
0.0027 |
PPS272K(J)C1908130 |
19.0 |
7.6 |
13.0 |
15.0 |
0.8 |
332 |
0.0033 |
PPS332K(J)C1908150 |
19.0 |
7.7 |
15.0 |
15.0 |
0.8 |
392 |
0.0039 |
PPS392K(J)C1909160 |
19.0 |
8.5 |
15.5 |
15.0 |
0.8 |
472 |
0.0047 |
PPS472K(J)C1910170 |
19.0 |
10.0 |
17.0 |
15.0 |
0.8 |
562 |
0.0056 |
PPS562K(J)C2407140 |
24.0 |
7.5 |
14.5 |
20.0 |
0.8 |
682 |
0.0068 |
PPS682K(J)C2408150 |
24.0 |
8.0 |
15.0 |
20.0 |
0.8 |
822 |
0.0082 |
PPS822K(J)C2409160 |
24.0 |
9.0 |
16.0 |
20.0 |
0.8 |
103 |
0.01 |
PPS103K(J)C2410160 |
24.0 |
9.5 |
16.5 |
20.0 |
0.8 |
123 |
0.012 |
PPS123K(J)C2411170 |
24.0 |
10.5 |
17.5 |
20.0 |
0.8 |
153 |
0.015 |
PPS153K(J)C2412190 |
24.0 |
12.0 |
18.5 |
20.0 |
0.8 |
183 |
0.018 |
PPS183K(J)C2412210 |
24.0 |
12.1 |
20.4 |
20.0 |
0.8 |
223 |
0.022 |
PPS223K(J)C2414220 |
24.0 |
13.4 |
21.8 |
20.0 |
0.8 |
153 |
0.015 |
PPS153K(J)C2908170 |
29.0 |
8.0 |
16.5 |
25.0 |
0.8 |
183 |
0.018 |
PPS183K(J)C2909170 |
29.0 |
9.0 |
17.5 |
25.0 |
0.8 |
223 |
0.022 |
PPS223K(J)C2910190 |
29.0 |
10.5 |
19.0 |
25.0 |
0.8 |
273 |
0.027 |
PPS273K(J)C2912200 |
29.0 |
11.5 |
20.0 |
25.0 |
0.8 |
333 |
0.033 |
PPS333K(J)C2913210 |
29.0 |
13.0 |
21.0 |
25.0 |
0.8 |
393 |
0.039 |
PPS393K(J)C2914220 |
29.0 |
14.0 |
22.5 |
25.0 |
0.8 |
473 |
0.047 |
PPS473K(J)C2915250 |
29.0 |
15.0 |
24.5 |
25.0 |
0.8 |
563 |
0.056 |
PPS563K(J)C2916260 |
29.0 |
16.5 |
26.0 |
25.0 |
0.8 |
683 |
0.068 |
PPS683K(J)C2918280 |
29.0 |
18.0 |
28.0 |
25.0 |
0.8 |
823 |
0.082 |
PPS823K(J)C3517250 |
35.0 |
17.0 |
25.5 |
30.0 |
0.8 |
104 |
0.1 |
PPS104K(J)C3519270 |
35.0 |
19.0 |
27.5 |
30.0 |
0.8 |
2000VDC |
|||||||
561 |
0.00056 |
PPS561K(J)D1906120 |
19.0 |
6.3 |
11.5 |
15.0 |
0.8 |
681 |
0.00068 |
PPS681K(J)D1907130 |
19.0 |
7.2 |
12.6 |
15.0 |
0.8 |
821 |
0.00082 |
PPS821K(J)D1908130 |
19.0 |
7.8 |
13.2 |
15.0 |
0.8 |
102 |
0.001 |
PPS102K(J)D1908150 |
19.0 |
8.0 |
15.0 |
15.0 |
0.8 |
122 |
0.0012 |
PPS122K(J)D1908150 |
19.0 |
7.9 |
14.9 |
15.0 |
0.8 |
152 |
0.0015 |
PPS152K(J)D1910160 |
19.0 |
9.4 |
16.2 |
15.0 |
0.8 |
182 |
0.0018 |
PPS182K(J)D1910170 |
19.0 |
10.3 |
17.0 |
15.0 |
0.8 |
222 |
0.0022 |
PPS222K(J)D1911160 |
19.0 |
10.5 |
15.7 |
15.0 |
0.8 |
272 |
0.0027 |
PPS272K(J)D1910170 |
19.0 |
10.0 |
16.8 |
15.0 |
0.8 |
332 |
0.0033 |
PPS332K(J)D1911180 |
19.0 |
11.1 |
17.9 |
15.0 |
0.8 |
222 |
0.0022 |
PPS222K(J)D2408150 |
24.0 |
7.9 |
14.9 |
20.0 |
0.8 |
272 |
0.0027 |
PPS272K(J)D2409160 |
24.0 |
8.8 |
15.7 |
20.0 |
0.8 |
332 |
0.0033 |
PPS332K(J)D2409160 |
24.0 |
8.8 |
15.8 |
20.0 |
0.8 |
392 |
0.0039 |
PPS392K(J)D2410170 |
24.0 |
10.1 |
16.9 |
20.0 |
0.8 |
472 |
0.0047 |
PPS472K(J)D2411180 |
24.0 |
11.0 |
17.8 |
20.0 |
0.8 |
562 |
0.0056 |
PPS562K(J)D2411170 |
24.0 |
10.4 |
17.2 |
20.0 |
0.8 |
682 |
0.0068 |
PPS682K(J)D2411190 |
24.0 |
10.8 |
19.2 |
20.0 |
0.8 |
822 |
0.0082 |
PPS822K(J)D2412200 |
24.0 |
11.9 |
20.3 |
20.0 |
0.8 |
103 |
0.01 |
PPS103K(J)D2412210 |
24.0 |
12.2 |
20.5 |
20.0 |
0.8 |
123 |
0.012 |
PPS123K(J)D2414220 |
24.0 |
13.4 |
21.7 |
20.0 |
0.8 |
472 |
0.0047 |
PPS472K(J)D2909170 |
28.0 |
8.4 |
16.9 |
25.0 |
0.8 |
562 |
0.0056 |
PPS562K(J)D2910180 |
29.0 |
9.7 |
18.0 |
25.0 |
0.8 |
682 |
0.0068 |
PPS682K(J)D2911190 |
29.0 |
10.7 |
19.0 |
25.0 |
0.8 |
822 |
0.0082 |
PPS822K(J)D2911190 |
29.0 |
10.7 |
19.0 |
25.0 |
0.8 |
P.S.:
All the dimensions above are for your reference, the real ones are according to our specification documents; Please contact with us if you have any other questions such as the Absolute Rating etc.
