■ Reference Standard
GB10190（ IEC384-16）
■ Structures
Material: Polypropylene film
Electrode: Metallized Vacuum Evaporated Layer
(With complexing jumbo-size Zinc and Aluminum )
Enveloped with Fire-proof Epoxide Resin (UL94 V-0)
Pin: With copper-clad steel leads or PVC Electronic Tread
■ Using area
High Frequency, DC, AC and Impulsion High Current conditions. e.g. Color TV-set, monitor S-Correcting circuit
■ Features:
Small Size with good self-healing effect
Very low loss at high frequency, the low temperature in changing with high impact
This type is specially designed for S- correcting circuit.
■ Specifications
Climate Conditions |
-40--+85℃/110℃ |
||||||
Rated Voltage vdc |
250V、400V、 |
||||||
Capacitance Tolerance |
0.1µF-1.0µF |
||||||
Capacitance Tolerance |
±5% ±10% |
||||||
Voltage Proof |
2.0U （5S） |
||||||
Insulation Resistance and Time Consistence |
≤0.33µF |
≥30000MΩ |
|||||
＞0.33µF |
≥10000S（MΩ. µF） |
||||||
Dissipation Factor |
≤0.0015 10KHz 20℃ |
||||||
Climate |
Temperature：40±2℃ |
||||||
Resistance |
+85℃/110℃，1000h |
||||||
dv/dt（v/µs） |
Pitch |
10 |
15 |
20 |
27.5 |
31.5 |
|
dv/dt |
400 |
200 |
150 |
100 |
100 |
||
■ The exchanging of VAC and VDC
直流电压 |
100VDC |
250VDC |
400VDC |
630VDC |
1000VDC |
交流电压 |
63VAC |
160VAC |
200VAC |
250VAC |
250VAC |
■ Outline Drawing
脚距mm |
10 |
15 |
22.5 |
27.5 |
31 |
引线直径mm |
0.6 |
0.6/0.8 |
0.8 |
0.8 |
0.8 |
■ Structure
- Metallized Polypropylene Film
- Mental Spring Layer
- Copper-clad steel leads Or Electronic Thread
- Yellow Epoxide Resin
- Yellow PET Polyester Tape
- ROHS Compliant
■ 特性曲线图

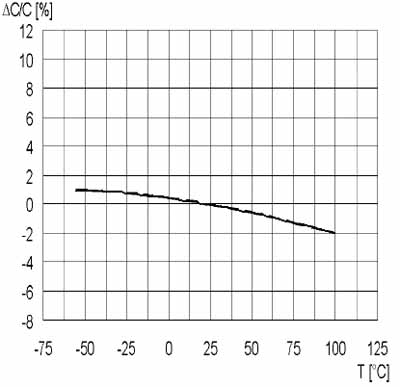

Capacitance and Temperature Graph

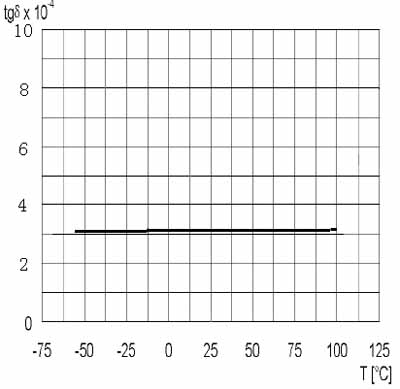

Dissipation Factor and Temperature Graph

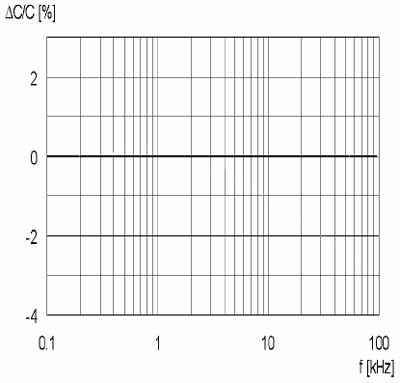

Capacitance and Frequency Graph

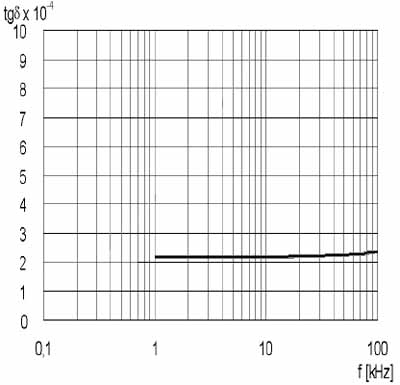

Dissipation Factor and Frequency Graph

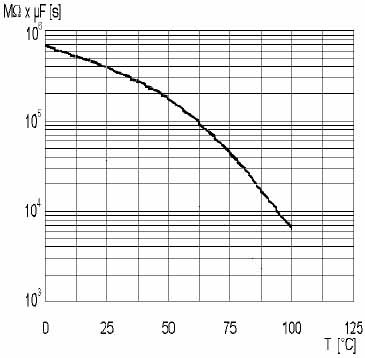

Insulation Resistance and Temperature Graph

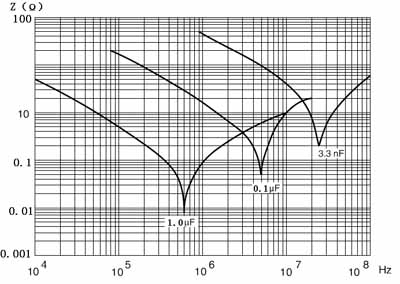

Impedance and Frequency Graph
The Graphic of Electronic Current and Frequency
Under the condition of the following S—correction waveform circuit, with the 85℃ temperature, in various specifically frequency, the capacitor could load the largest current s (lp-p(A)).

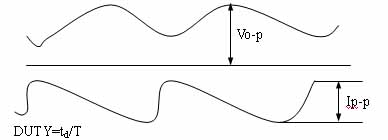

S-correction waveform Graphic
The impulse (or AC) current is the result of capacitance *voltage rising speed, I=C*DV/DT
■Dimension Lists
CBB21A the normal graphic of Electronic Current and Frequency
Capacitance（μF） |
250V/(200Vo-p max) |
400V/(300Vo-p max) |
||||||||||
Electronic Current Form lp-p(A) |
Electronic Current Form p-p(A) |
|||||||||||
Frequency F(kHz) |
Frequency F(kHz) |
|||||||||||
15.75 |
30 |
50 |
65 |
80 |
100 |
15.75 |
30 |
50 |
65 |
80 |
100 |
|
0.10 |
2.7 |
3.1 |
3.6 |
4.0 |
4.4 |
4.9 |
4.6 |
5.0 |
5.5 |
5.9 |
6.3 |
6.8 |
0.11 |
2.9 |
3.3 |
3.8 |
4.2 |
4.6 |
5.1 |
4.8 |
5.2 |
5.7 |
6.1 |
6.5 |
7.0 |
0.12 |
3.1 |
3.5 |
4.0 |
4.4 |
4.8 |
5.3 |
5.1 |
5.5 |
6.0 |
6.4 |
6.8 |
7.3 |
0.13 |
3.3 |
3.7 |
4.2 |
4.6 |
5.0 |
5.5 |
5.3 |
5.7 |
6.2 |
6.6 |
7.0 |
7.5 |
0.15 |
3.6 |
4.0 |
4.5 |
4.9 |
5.3 |
5.8 |
5.6 |
6.0 |
6.45 |
6.9 |
7.3 |
7.8 |
0.16 |
3.7 |
4.1 |
4.6 |
5.0 |
5.4 |
5.9 |
5.8 |
6.2 |
6.7 |
7.1 |
7.5 |
8.0 |
0.18 |
4.0 |
4.4 |
4.9 |
5.3 |
5.7 |
6.2 |
6.1 |
6.5 |
7.0 |
7.4 |
7.8 |
8.3 |
0.20 |
4.2 |
4.6 |
5.1 |
5.5 |
5.9 |
6.4 |
6.4 |
6.8 |
7.3 |
7.7 |
8.1 |
8.6 |
0.22 |
4.4 |
4.8 |
5.3 |
5.7 |
6.1 |
6.6 |
6.7 |
7.1 |
7.6 |
8.0 |
8.4 |
8.9 |
0.24 |
4.6 |
5.0 |
5.5 |
5.9 |
6.3 |
6.8 |
7.0 |
7.4 |
7.9 |
8.3 |
8.7 |
9.2 |
0.27 |
4.9 |
5.3 |
5.8 |
6.2 |
6.6 |
7.1 |
7.3 |
7.7 |
8.2 |
8.6 |
9.0 |
9.5 |
0.30 |
5.1 |
5.5 |
6.0 |
6.4 |
6.8 |
7.3 |
7.6 |
8.0 |
8.5 |
8.9 |
9.3 |
9.8 |
0.33 |
5.3 |
5.7 |
6.2 |
6.6 |
7.0 |
7.5 |
7.9 |
8.3 |
8.8 |
9.2 |
9.6 |
10.1 |
0.36 |
5.5 |
5.9 |
6.4 |
6.8 |
7.2 |
7.7 |
8.2 |
8.6 |
9.1 |
9.5 |
9.9 |
10.4 |
0.39 |
5.7 |
6.1 |
6.6 |
7.0 |
7.4 |
7.9 |
8.4 |
8.8 |
9.3 |
9.7 |
10.1 |
10.6 |
0.43 |
6.0 |
6.4 |
6.9 |
7.3 |
7.7 |
8.2 |
8.8 |
9.2 |
9.7 |
10.1 |
10.5 |
11.0 |
0.47 |
6.2 |
6.6 |
7.1 |
7.5 |
7.9 |
8.4 |
9.2 |
9.6 |
10.1 |
10.5 |
10.9 |
11.4 |
0.51 |
6.5 |
6.9 |
7.4 |
7.8 |
8.2 |
8.7 |
9.6 |
10.0 |
10.5 |
10.9 |
11.3 |
11.8 |
0.56 |
6.7 |
7.1 |
7.6 |
8.0 |
8.4 |
8.9 |
10.0 |
10.4 |
10.9 |
11.3 |
11.7 |
12.2 |
0.62 |
7.0 |
7.4 |
7.9 |
8.3 |
8.7 |
9.2 |
10.5 |
10.9 |
11.4 |
11.8 |
12.2 |
12.7 |
0.68 |
7.3 |
7.7 |
8.2 |
8.6 |
9.0 |
9.5 |
11.0 |
11.4 |
11.9 |
12.3 |
12.7 |
13.2 |
0.75 |
7.6 |
8.0 |
8.5 |
8.9 |
9.3 |
9.8 |
11.4 |
11.8 |
12.3 |
12.7 |
13.1 |
13.6 |
0.82 |
7.8 |
8.2 |
8.7 |
9.1 |
9.5 |
10.0 |
11.8 |
12.2 |
12.7 |
13.1 |
135. |
14.0 |
0.91 |
8.1 |
8.5 |
9.0 |
9.4 |
9.8 |
10.3 |
12.3 |
12.7 |
13.2 |
13.6 |
14.0 |
14.5 |
1.0 |
8.4 |
8.8 |
9.3 |
9.7 |
10.1 |
10.6 |
12.7 |
13.1 |
13.6 |
14.0 |
14.4 |
14.9 |
CBB21A(MPS)
Products Type |
Item’s No. |
Dimensions（mm） |
|||||
Capacitance µF |
Wmax |
T max |
H max |
P ±1.0 |
d ±0.05 |
||
104 |
0.1 |
MPS104K（J）21306120 |
13.0 |
6.5 |
12.0 |
10.0 |
0.6 |
124 |
0.12 |
MPS124K（J）21307130 |
13.0 |
7.5 |
13.0 |
10.0 |
0.6 |
154 |
0.15 |
MPS154K（J）21308140 |
13.0 |
8.0 |
13.5 |
10.0 |
0.6 |
184 |
0.18 |
MPS184K（J）21309140 |
13.0 |
9.0 |
14.5 |
10.0 |
0.6 |
104 |
0.1 |
MPS104K（J）21906130 |
19.0 |
6.5 |
13.0 |
15.0 |
0.8 |
124 |
0.12 |
MPS124K（J）21907130 |
19.0 |
7.0 |
13.0 |
15.0 |
0.8 |
154 |
0.15 |
MPS154K（J）21908150 |
19.0 |
8.0 |
15.0 |
15.0 |
0.8 |
184 |
0.18 |
MPS184K（J）21908150 |
19.0 |
8.5 |
15.5 |
15.0 |
0.8 |
224 |
0.22 |
MPS224K（J）21908150 |
19.0 |
8.5 |
15.5 |
15.0 |
0.8 |
274 |
0.27 |
MPS274K（J）21910160 |
19.0 |
10.0 |
16.5 |
15.0 |
0.8 |
334 |
0.33 |
MPS334K（J）21908150 |
19.0 |
8.5 |
15.5 |
15.0 |
0.8 |
364 |
0.36 |
MPS364K（J）21909160 |
19.0 |
9.0 |
16.0 |
15.0 |
0.8 |
394 |
0.39 |
MPS394K（J）21910160 |
19.0 |
10.0 |
16.5 |
15.0 |
0.8 |
434 |
0.43 |
MPS434K（J）21910170 |
19.0 |
10.5 |
17.0 |
15.0 |
0.8 |
474 |
0.47 |
MPS474K（J）21911170 |
19.0 |
11.0 |
17.5 |
15.0 |
0.8 |
564 |
0.56 |
MPS564K（J）21912180 |
19.0 |
12.0 |
18.5 |
15.0 |
0.8 |
684 |
0.68 |
MPS684K（J）21913200 |
19.0 |
13.0 |
20.0 |
15.0 |
0.8 |
824 |
0.82 |
MPS684K（J）21914210 |
19.0 |
14.0 |
21.0 |
15.0 |
0.8 |
105 |
1.0 |
MPS105K（J）22411200 |
24.0 |
11.5 |
20.0 |
20.0 |
0.8 |
400VDC |
|||||||
104 |
0.1 |
MPS104K（J）21906130 |
19.0 |
6.5 |
13.0 |
15.0 |
0.8 |
124 |
0.12 |
MPS124K（J）21907130 |
19.0 |
7.0 |
13.0 |
15.0 |
0.8 |
154 |
0.15 |
MPS154K（J）21908150 |
19.0 |
8.0 |
15.0 |
15.0 |
0.8 |
184 |
0.18 |
MPS184K（J）21908150 |
19.0 |
8.5 |
15.5 |
15.0 |
0.8 |
224 |
0.22 |
MPS224K（J）21910170 |
19.0 |
10.0 |
17.0 |
15.0 |
0.8 |
274 |
0.27 |
MPS274K（J）21910160 |
19.0 |
10.0 |
16.5 |
15.0 |
0.8 |
334 |
0.33 |
MPS334K（J）21911170 |
19.0 |
11.0 |
17.5 |
15.0 |
0.8 |
364 |
0.36 |
MPS364K（J）21911180 |
19.0 |
11.5 |
18.0 |
15.0 |
0.8 |
394 |
0.39 |
MPS394K（J）21911180 |
19.0 |
11.5 |
18.5 |
15.0 |
0.8 |
434 |
0.43 |
MPS434K（J）21912190 |
19.0 |
12.0 |
19.0 |
15.0 |
0.8 |
474 |
0.47 |
MPS474K（J）21913190 |
19.0 |
13.0 |
19.5 |
15.0 |
0.8 |
564 |
0.56 |
MPS564K（J）22412200 |
24.0 |
12.0 |
20.0 |
15.0 |
0.8 |
684 |
0.68 |
MPS684K（J）22413210 |
24.0 |
13.0 |
21.5 |
20.0 |
0.8 |
824 |
0.82 |
MPS824K（J）22414220 |
24.0 |
14.5 |
22.5 |
20.0 |
0.8 |
105 |
1.0 |
MPS105K（J）22416240 |
24.0 |
16.0 |
24.0 |
20.0 |
0.8 |
P.S.:
All the dimensions above are for your reference, the real ones are according to our specification documents; Please contact with us if you have any other questions such as the Absolute Rating etc.
