■ Reference Standard
GB10190 （IEC384-16）
■ Structures
Material: Polypropylene film
Electrode: Metallized Vacuum Evaporated Layer
(With complexing jumbo-size Zinc and Aluminum )
Enveloped with Fire-proof Epoxide Resin
Pin: With copper-clad steel leads or PVC Electronic Tread
■ Using area
High Frequency, DC, AC and Impulsion High Curre
■ Features:
Small Size with good self-healing effect
Very low loss at high frequency, the low temperature in changing with high impact
Have well voltage proof features under the high frequency AC current.
■ Specifications
Climate Conditions |
-40--+85℃/+110℃ |
|||||||||||||
Rated Voltage Udc |
100V、250V、400V、630V、1000V |
|||||||||||||
Capacitance Tolerance |
0.0033µF-4.7µF |
|||||||||||||
Capacitance Tolerance |
±5% ±10% |
|||||||||||||
DC Testing Voltage |
1.6UR （5S） |
|||||||||||||
Insulation Resistance and Time Consistence |
≤0.33µF |
≥25000MΩ |
||||||||||||
＞0.33µF |
≥7500S（MΩ. µF） |
|||||||||||||
Dissipation Factor |
≤0.001 1kHz 20℃ |
|||||||||||||
Climate |
Temperature：40±2℃ |
|||||||||||||
Resistance |
+85℃/110℃，1000h |
|||||||||||||
dv/dt（v/µs） |
|
|||||||||||||
■ The exchanging of VAC and VDC
Direct Current |
100VDC |
250VDC |
400VDC |
630VDC |
1000VDC |
Alternate Current |
63VAC |
160VAC |
200VAC |
250VAC |
250VAC |
■ The Relationship of AC Voltage Proof and Frequency

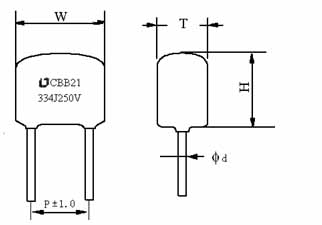

■ Outline Drawing
Pitch mm |
10 |
15 |
22.5 |
27.5 |
31 |
41 |
The Diameter of the Pin mm |
0.6 |
0.6/0.8 |
0.8 |
0.8 |
0.8 |
1.0 |
■ Structure
- Metallized Polypropylene Film
- Mental Spring Layer
- Copper-clad steel leads Or Electronic Thread
- Yellow Epoxide Resin
- Yellow PET Polyester Tape
- ROHS Compliant
■ Characteristic Graph

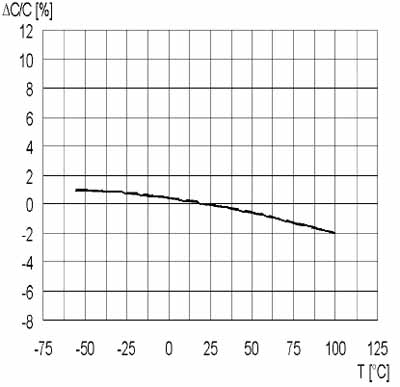

Capacitance and Temperature Graph

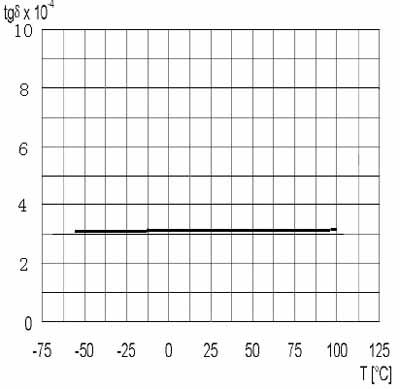

Dissipation Factor and Temperature Graph

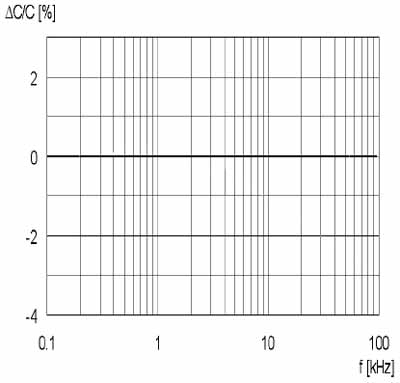

Capacitance and Frequency Graph

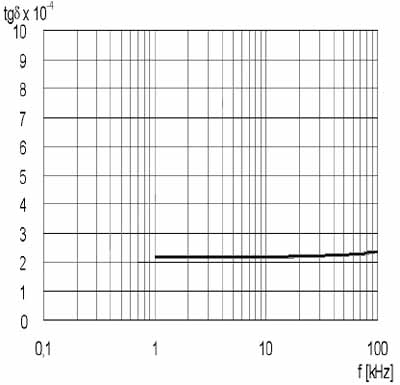

Dissipation Factor and Frequency Graph

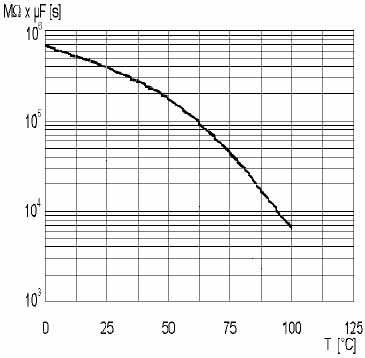

Insulation Resistance and Temperature Graph

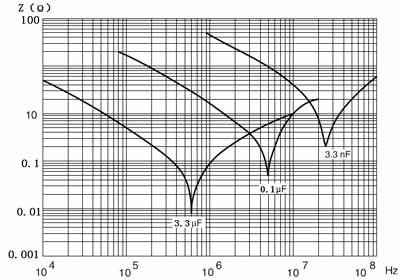

Impedance and Frequency Graph
CBB21（MPP）
Products Type |
Item’s No. |
Dimensions（mm） |
|||||
Capacitance µF |
Wmax |
T max |
H max |
P ±1.0 |
d ±0.05 |
||
250VDC |
|||||||
473 |
0.047 |
MPP473K(J)21304080 |
13.0 |
3.5 |
8.0 |
10.0 |
0.6 |
563 |
0.056 |
MPP563K(J)21304080 |
13.0 |
4.0 |
8.5 |
10.0 |
0.6 |
683 |
0.068 |
MPP683K(J)21305090 |
13.0 |
4.5 |
8.5 |
10.0 |
0.6 |
823 |
0.082 |
MPP823K(J)21305090 |
13.0 |
5.0 |
9.5 |
10.0 |
0.6 |
104 |
0.1 |
MPP104K(J)21305100 |
13.0 |
5.5 |
10.5 |
10.0 |
0.6 |
124 |
0.12 |
MPP124K(J)21306110 |
13.0 |
6.0 |
11.0 |
10.0 |
0.6 |
154 |
0.15 |
MPP154K(J)21307120 |
13.0 |
6.5 |
11.5 |
10.0 |
0.6 |
184 |
0.18 |
MPP184K(J)21307130 |
13.0 |
7.5 |
13.0 |
10.0 |
0.6 |
224 |
0.22 |
MPP224K(J)21308150 |
13.0 |
8.0 |
14.5 |
10.0 |
0.6 |
274 |
0.27 |
MPP274K(J)21308150 |
13.0 |
8.5 |
15.5 |
10.0 |
0.6 |
104 |
0.1 |
MPP104K(J)21904090 |
19.0 |
3.5 |
8.5 |
15.0 |
0.8 |
124 |
0.12 |
MPP124K(J)21904090 |
19.0 |
4.0 |
9.0 |
15.0 |
0.8 |
154 |
0.15 |
MPP154K(J)21905100 |
19.0 |
4.5 |
9.5 |
15.0 |
0.8 |
184 |
0.18 |
MPP184K(J)21905100 |
19.0 |
5.0 |
10.5 |
15.0 |
0.8 |
224 |
0.22 |
MPP224K(J)21906110 |
19.0 |
5.5 |
10.5 |
15.0 |
0.8 |
274 |
0.27 |
MPP274K(J)21906120 |
19.0 |
5.5 |
12.5 |
15.0 |
0.8 |
334 |
0.33 |
MPP334K(J)21906130 |
19.0 |
6.5 |
13.0 |
15.0 |
0.8 |
394 |
0.39 |
MPP394K(J)21907140 |
19.0 |
7.0 |
14.0 |
15.0 |
0.8 |
474 |
0.47 |
MPP474K(J)21908150 |
19.0 |
8.0 |
15.0 |
15.0 |
0.8 |
564 |
0.56 |
MPP564K(J)21909160 |
19.0 |
8.5 |
15.5 |
15.0 |
0.8 |
684 |
0.68 |
MPP684K(J)21910170 |
19.0 |
10.0 |
17.0 |
15.0 |
0.8 |
824 |
0.82 |
MPP824K(J)21911180 |
19.0 |
11.0 |
18.0 |
15.0 |
0.8 |
105 |
1.0 |
MPP105K(J)21912190 |
19.0 |
12.5 |
19.0 |
15.0 |
0.8 |
564 |
0.56 |
MPP564K(J)22407140 |
24.0 |
7.0 |
14.0 |
20.0 |
0.8 |
684 |
0.68 |
MPP684K(J)22408150 |
24.0 |
8.0 |
14.5 |
20.0 |
0.8 |
824 |
0.82 |
MPP824K(J)22409160 |
24.0 |
8.5 |
15.5 |
20.0 |
0.8 |
105 |
1.0 |
MPP105K(J)22410170 |
24.0 |
10.0 |
17.0 |
20.0 |
0.8 |
125 |
1.2 |
MPP125K(J)22410190 |
24.0 |
10.5 |
18.5 |
20.0 |
0.8 |
155 |
1.5 |
MPP155K(J)22412200 |
24.0 |
11.5 |
20.0 |
20.0 |
0.8 |
185 |
1.8 |
MPP185K(J)22413210 |
24.0 |
13.0 |
21.5 |
20.0 |
0.8 |
155 |
1.5 |
MPP155K(J)23110180 |
31.0 |
9.5 |
18.0 |
27.5 |
0.8 |
185 |
1.8 |
MPP185K(J)23111190 |
31.0 |
11.0 |
19.0. |
27.5 |
0.8 |
225 |
2.2 |
MPP225K(J)23112200 |
35.0 |
11.5 |
20.0 |
31.5 |
0.8 |
275 |
2.7 |
MPP275K(J)23113210 |
35.0 |
13.0 |
21.5 |
31.5 |
0.8 |
335 |
3.3 |
MPP335K(J)23115230 |
35.0 |
14.5 |
23.0 |
31.5 |
0.8 |
395 |
3.9 |
MPP395K(J)23116250 |
35.0 |
16 .0 |
24.5 |
31.5 |
0.8 |
475 |
4.7 |
MPP475K(J)23118260 |
35.0 |
17 .0 |
26.0 |
31.5 |
0.8 |
565 |
5.6 |
MPP565K(J)23119290 |
35.0 |
17.5 |
26.0 |
31.5 |
0.8 |
400VDC |
|||||||
333 |
0.033 |
MPP333K(J)41304090 |
13.0 |
4.0 |
8.0 |
10 |
0.6 |
393 |
0.039 |
MPP393K(J)41304090 |
13.0 |
4.0 |
8.5 |
10 |
0.6 |
473 |
0.047 |
MPP473K(J)41304090 |
13.0 |
4.5 |
9.5 |
10 |
0.6 |
563 |
0.056 |
MPP563K(J)41305100 |
13.0 |
5.0 |
10.0 |
10 |
0.6 |
683 |
0.068 |
MPP683K(J)41305100 |
13.0 |
5.5 |
10.5 |
10 |
0.6 |
823 |
0.082 |
MPP823K(J)41306110 |
13.0 |
6.0 |
11.0 |
10 |
0.6 |
104 |
0.1 |
MPP104K(J)41306120 |
13.0 |
6.5 |
12.0 |
10 |
0.6 |
124 |
0.12 |
MPP124K(J)41307130 |
13.0 |
7.5 |
13.0 |
10 |
0.6 |
154 |
0.15 |
MPP154K(J)41906110 |
19.0 |
6.0 |
11.0 |
15 |
0.8 |
184 |
0.18 |
MPP184K(J)41906120 |
19.0 |
6.5 |
11.5 |
15 |
0.8 |
224 |
0.22 |
MPP224K(J)41907130 |
19.0 |
7.0 |
13.5 |
15 |
0.8 |
274 |
0.27 |
MPP274K(J)41908150 |
19.0 |
8.0 |
15.0 |
15 |
0.8 |
334 |
0.33 |
MPP334K(J)41908150 |
19.0 |
8.5 |
15.5 |
15 |
0.8 |
394 |
0.39 |
MPP394K(J)41910160 |
19.0 |
9.5 |
16.5 |
15 |
0.8 |
474 |
0.47 |
MPP474K(J)41911170 |
19.0 |
10.5 |
17.5 |
15 |
0.8 |
564 |
0.56 |
MPP564K(J)419111190 |
19.0 |
11.0 |
19.0 |
15 |
0.8 |
334 |
0.33 |
MPP334K(J)42406130 |
24.0 |
6.5 |
13.0 |
20 |
0.8 |
394 |
0.39 |
MPP394K(J)42407140 |
24.0 |
7.0 |
14.0 |
20 |
0.8 |
474 |
0.47 |
MPP474K(J)42408150 |
24.0 |
8.0 |
15.0 |
20 |
0.8 |
564 |
0.56 |
MPP564K(J)42409150 |
24.0 |
8.5 |
15.5 |
20 |
0.8 |
684 |
0.68 |
MPP684K(J)42410170 |
24.0 |
10.0 |
17.0 |
20 |
0.8 |
824 |
0.82 |
MPP824K(J)42410190 |
24.0 |
10.5 |
18.5 |
20 |
0.8 |
105 |
1.0 |
MPP105K(J)42411200 |
24.0 |
11.5 |
20.0 |
20 |
0.8 |
125 |
1.2 |
MPP125K(J)42413210 |
24.0 |
12.5 |
21.0 |
20 |
0.8 |
155 |
1.5 |
MPP155K(J)42414230 |
24.0 |
14.5 |
22.5 |
20 |
0.8 |
125 |
1.2 |
MPP125K(J)43111190 |
31.0 |
10.5 |
19.0 |
27.5 |
0.8 |
155 |
1.5 |
MPP155K(J)43111210 |
31.0 |
11.5 |
21.0 |
27.5 |
0.8 |
185 |
1.8 |
MPP185K(J)43112220 |
31.0 |
12.5 |
22.5 |
27.5 |
0.8 |
225 |
2.2 |
MPP225K(J)43114240 |
31.0 |
14.0 |
24.0 |
27.5 |
0.8 |
275 |
2.7 |
MPP275K(J)43116260 |
31.0 |
15.5 |
25.5 |
27.5 |
0.8 |
305 |
3.0 |
MPP305K(J)43515240 |
35.0 |
15.5 |
23.5 |
31 |
0.8 |
335 |
3.3 |
MPP335K(J)43516250 |
35.0 |
16.0 |
24.5 |
31 |
0.8 |
405 |
4.0 |
MPP405K(J)43518260 |
35.0 |
18.0 |
26.5 |
31 |
0.8 |
475 |
4.7 |
MPP475K(J)43520280 |
35.0 |
20.0 |
28.0 |
31 |
0.8 |
630VDC |
|||||||
332 |
0.0033 |
MPP332K(J)61305100 |
13.0 |
5.0 |
10.0 |
10.0 |
0.6 |
392 |
0.0039 |
MPP332K(J)61305100 |
13.0 |
5.5 |
10.5 |
10.0 |
0.6 |
472 |
0.0047 |
MPP472K(J)61306110 |
13.0 |
6.0 |
11.0 |
10.0 |
0.6 |
562 |
0.0056 |
MPP562K(J)61305100 |
13.0 |
5.5 |
10.5 |
10.0 |
0.6 |
682 |
0.0068 |
MPP682K(J)61305100 |
13.0 |
5.5 |
10.5 |
10.0 |
0.6 |
822 |
0.0082 |
MPP822K(J)61304080 |
13.0 |
4.0 |
8.0 |
10.0 |
0.6 |
103 |
0.01 |
MPP103K(J)61304090 |
13.0 |
4.5 |
9.0 |
10.0 |
0.6 |
123 |
0.012 |
MPP123K(J)61305100 |
13.0 |
5.0 |
10.0 |
10.0 |
0.6 |
153 |
0.015 |
MPP153K(J)61305100 |
13.0 |
5.5 |
10.5 |
10.0 |
0.6 |
183 |
0.018 |
MPP183K(J)61306110 |
13.0 |
6.0 |
11.0 |
10.0 |
0.6 |
223 |
0.022 |
MPP223K(J)61304090 |
13.0 |
4.5 |
9.0 |
10.0 |
0.6 |
273 |
0.027 |
MPP273K(J)61304090 |
13.0 |
5.0 |
9.5 |
10.0 |
0.6 |
333 |
0.033 |
MPP333K(J)61304090 |
13.0 |
5.0 |
9.5 |
10.0 |
0.6 |
393 |
0.039 |
MPP393K(J)61305090 |
13.0 |
5.0 |
9.5 |
10.0 |
0.6 |
473 |
0.047 |
MPP473K(J)61305100 |
13.0 |
5.5 |
10.5 |
10.0 |
0.6 |
563 |
0.056 |
MPP563K(J)61306110 |
13.0 |
6.0 |
11.0 |
10.0 |
0.6 |
683 |
0.068 |
MPP683K(J)61306110 |
13.0 |
6.5 |
11.5 |
10.0 |
0.6 |
823 |
0.082 |
MPP823K(J)61307130 |
13.0 |
7.5 |
12.5 |
10.0 |
0.6 |
333 |
0.033 |
MPP333K(J)61906110 |
19.0 |
6.0 |
11.0 |
15.0 |
0.6 |
393 |
0.039 |
MPP393K(J)61906110 |
19.0 |
6.5 |
11.5 |
15.0 |
0.6 |
473 |
0.047 |
MPP473K(J)61906130 |
19.0 |
6.5 |
13.0 |
15.0 |
0.6 |
563 |
0.056 |
MPP563K(J)61907140 |
19.0 |
7.0 |
14.0 |
15.0 |
0.8 |
683 |
0.068 |
MPP683K(J)61908150 |
19.0 |
8.0 |
15.0 |
15.0 |
0.8 |
823 |
0.082 |
MPP823K(J)61909160 |
19.0 |
9.0 |
16.0 |
15.0 |
0.8 |
104 |
0.1 |
MPP104K(J)61906130 |
19.0 |
6.0 |
13.0 |
15.0 |
0.8 |
124 |
0.12 |
MPP124K(J)61907130 |
19.0 |
7.0 |
13.5 |
15.0 |
0.8 |
154 |
0.15 |
MPP154K(J)61908150 |
19.0 |
8.0 |
15.0 |
15.0 |
0.8 |
184 |
0.18 |
MPP184K(J)61908150 |
19.0 |
8.5 |
15.5 |
15.0 |
0.8 |
224 |
0.22 |
MPP224K(J)62407140 |
24.0 |
7.0 |
14.0 |
20.0 |
0.8 |
274 |
0.27 |
MPP274K(J)62408150 |
24.0 |
8.0 |
15.0 |
20.0 |
0.8 |
334 |
0.33 |
MPP334K(J)62409160 |
24.0 |
9.0 |
16.0 |
20.0 |
0.8 |
364 |
0.36 |
MPP364K(J)62410170 |
24.0 |
10.0 |
17.0 |
20.0 |
0.8 |
394 |
0.39 |
MPP394K(J)62410170 |
24.0 |
10.5 |
17.5 |
20.0 |
0.8 |
474 |
0.47 |
MPP474K(J)62411190 |
24.0 |
11.0 |
19.0 |
20.0 |
0.8 |
564 |
0.56 |
MPP564K(J)62412200 |
24.0 |
12.0 |
20.0 |
20.0 |
0.8 |
684 |
0.68 |
MPP684K(J)62413210 |
24.0 |
13.5 |
21.5 |
20.0 |
0.8 |
824 |
0.82 |
MPP824K(J)62414220 |
24.0 |
14.5 |
22.5 |
20.0 |
0.8 |
105 |
1.0 |
MPP105K(J)63113220 |
31.0 |
13.5 |
22.5 |
27.5 |
0.8 |
125 |
1.2 |
MPP125K(J)63115230 |
31.0 |
15.0 |
23.0 |
27.5 |
0.8 |
155 |
1.5 |
MPP155K(J)63515230 |
35.0 |
15.0 |
23.0 |
31.5 |
0.8 |
185 |
1.8 |
MPP185K(J)63516240 |
35.0 |
16.5 |
25.0 |
31.5 |
0.8 |
205 |
2.0 |
MPP205K(J)63517250 |
35.0 |
17.5 |
26.0 |
31.5 |
0.8 |
225 |
2.2 |
MPP225K(J)63518260 |
35.0 |
18.5 |
27.0 |
31.5 |
0.8 |
255 |
2.5 |
MPP255K(J)63519280 |
35.0 |
19.0 |
28.0 |
31.5 |
0.8 |
275 |
2.7 |
MPP275K(J)63520280 |
35.0 |
20.5 |
29.0 |
31.5 |
0.8 |
305 |
3.0 |
MPP305K(J)63521290 |
35.0 |
21.5 |
29.0 |
31.5 |
0.8 |
1000VDC |
|||||||
332 |
0.0033 |
MPP332K(J)A1305100 |
13.0 |
5.0 |
10.0 |
10.0 |
0.6 |
392 |
0.0039 |
MPP332K(J)A1305100 |
13.0 |
5.5 |
10.5 |
10.0 |
0.6 |
472 |
0.0047 |
MPP472K(J)A1306110 |
13.0 |
6.0 |
11.0 |
10.0 |
0.6 |
562 |
0.0056 |
MPP562K(J)A1305100 |
13.0 |
5.5 |
10.5 |
10.0 |
0.6 |
682 |
0.0068 |
MPP682K(J)A1305100 |
13.0 |
5.5 |
10.5 |
10.0 |
0.6 |
822 |
0.0082 |
MPP822K(J)A1304080 |
13.0 |
4.0 |
8.0 |
10.0 |
0.6 |
103 |
0.01 |
MPP103K(J)A1304090 |
13.0 |
4.5 |
9.0 |
10.0 |
0.6 |
123 |
0.012 |
MPP123K(J)A1305100 |
13.0 |
5.0 |
10.0 |
10.0 |
0.6 |
153 |
0.015 |
MPP153K(J)A1305100 |
13.0 |
5.5 |
10.5 |
10.0 |
0.6 |
183 |
0.018 |
MPP183K(J)A1306110 |
13.0 |
6.0 |
11.0 |
10.0 |
0.6 |
223 |
0.022 |
MPP223K(J)A1304090 |
13.0 |
4.5 |
9.0 |
10.0 |
0.6 |
273 |
0.027 |
MPP273K(J)A1304090 |
13.0 |
5.0 |
9.5 |
10.0 |
0.6 |
333 |
0.033 |
MPP333K(J)A1304090 |
13.0 |
5.0 |
9.5 |
10.0 |
0.6 |
393 |
0.039 |
MPP393K(J)A1305090 |
13.0 |
5.0 |
9.5 |
10.0 |
0.6 |
473 |
0.047 |
MPP473K(J)A1305100 |
13.0 |
5.5 |
10.5 |
10.0 |
0.6 |
563 |
0.056 |
MPP563K(J)A1306110 |
13.0 |
6.0 |
11.0 |
10.0 |
0.6 |
683 |
0.068 |
MPP683K(J)A1306110 |
13.0 |
6.5 |
11.5 |
10.0 |
0.6 |
823 |
0.082 |
MPP823K(J)A1307130 |
13.0 |
7.5 |
12.5 |
10.0 |
0.6 |
333 |
0.033 |
MPP333K(J)A1906110 |
19.0 |
6.0 |
11.0 |
15.0 |
0.6 |
393 |
0.039 |
MPP393K(J)A1906110 |
19.0 |
6.5 |
11.5 |
15.0 |
0.6 |
473 |
0.047 |
MPP473K(J)A1906130 |
19.0 |
6.5 |
13.0 |
15.0 |
0.6 |
563 |
0.056 |
MPP563K(J)A1907140 |
19.0 |
7.0 |
14.0 |
15.0 |
0.8 |
683 |
0.068 |
MPP683K(J)A1908150 |
19.0 |
8.0 |
15.0 |
15.0 |
0.8 |
823 |
0.082 |
MPP823K(J)A1909160 |
19.0 |
9.0 |
16.0 |
15.0 |
0.8 |
104 |
0.1 |
MPP104K(J)A1910170 |
19.0 |
10.0 |
17.0 |
15.0 |
0.8 |
P.S.:
All the dimensions above are for your reference, the real ones are according to our specification documents; Please contact with us if you have any other questions such as the Absolute Rating etc.
