■ Reference Standard
GB10190（IEC384-16）
■ Structures
Material: Polypropylene film
Electrode: Metallized Vacuum Evaporated Layer
Encapsulation: Wrap up with PET tape and
Encapsulated with Fire-proof Epoxide Resin(UL94V-0)
Shape: Cylinder or Elliptic
Pin: With copper-clad steel leads or PVC Electronic
Tread
■ Using area
In Heavy Current such as Filtering and
Impulse, e.g. Power Amplifiers and
Soldering Machines etc
Could be used in all the CBB21 compliant conditions.
■ Features:
Small Size with good self-healing effect
Very low loss at high frequency, the low temperature in changing with high impact
Have well voltage proof features under the high frequency AC current.
■ Specifications
Climate Conditions |
-40--+85℃/110℃ |
||||||
Rated Voltage VDC |
100V、250V、400V、630V |
||||||
Capacitance Range |
0.0033µF-50µF |
||||||
Capacitance Tolerance |
±5% ±10% |
||||||
Voltage Proof |
1.6UR （5S） |
||||||
Insulation Resistance and Time Consistence |
≤0.33µF |
≥25000MΩ |
|||||
＞0.33µF |
≥7500S（MΩ.µF） |
||||||
Dissipation Factor |
≤0.0010 1KHz 20℃ |
||||||
Climate |
Temperature：40±2℃ |
||||||
Resistance |
+85℃/110℃，1000h |
||||||
dv/dt（v/µs） |
Length |
15 |
20 |
25 |
30 |
35 |
|
dv/dt |
400 |
200 |
150 |
100 |
100 |
||
■ The exchanging of VAC and VDC
Direct Current |
100VDC |
250VDC |
400VDC |
630VDC |
1000VDC |
Alternate Current |
63VAC |
160VAC |
200VAC |
250VAC |
250VAC |
■ The Relationship of AC Voltage Proof and Frequency

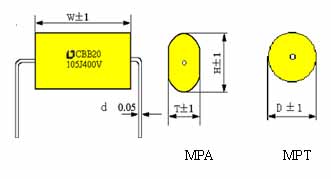

■ Outline Drawing
■ Structure
- Metallized Polypropylene Film
- Mental Spring Layer
- Copper-clad steel leads Or Electronic Thread
- Yellow Epoxide Resin
- Yellow PET Polyester Tape
- ROHS Compliant
■ Characteristic Graph

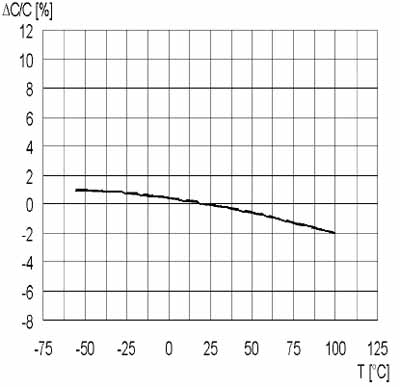

Capacitance and Temperature Graph

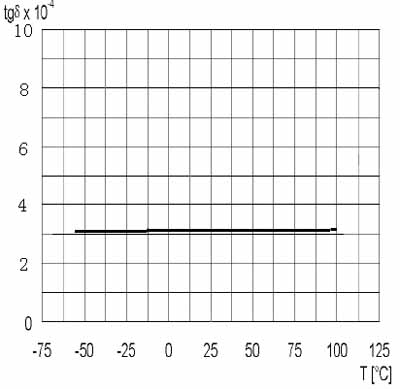

Dissipation Factor and Temperature Graph

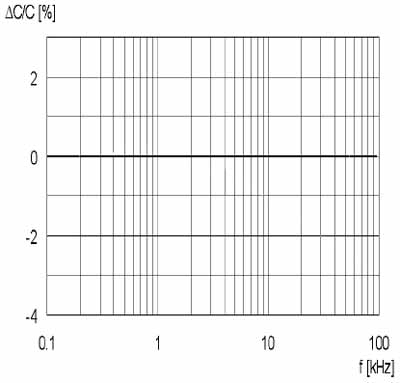

Capacitance and Frequency Graph

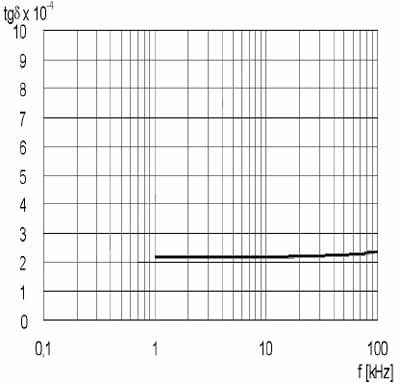

Dissipation Factor and Frequency Graph

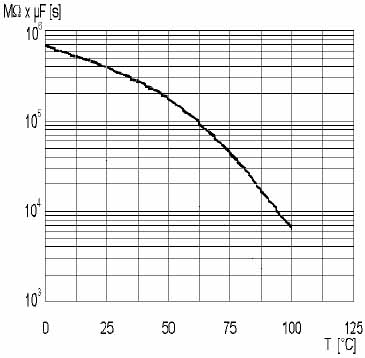

Insulation Resistance and Temperature Graph

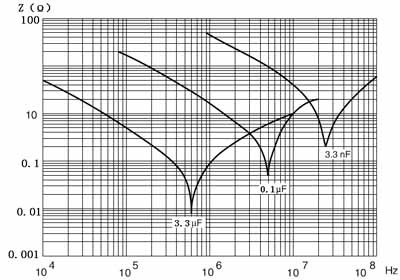

Impedance and Frequency Graph
CBB20（MPA）Elliptic Types
Products Type |
Items’ No, |
Dimensions |
||||
Capacitance µF |
W±1.0 |
T ±1.0 |
H±1.0 |
d ±0.05 |
||
250VDC |
||||||
154 |
0.15 |
MPA154K(J)21506100 |
15.0 |
6.0 |
10.0 |
0.6 |
184 |
0.18 |
MPA184K(J)21506100 |
15.0 |
6.5 |
10.5 |
0.6 |
224 |
0.22 |
MPA224K(J)21507120 |
15.0 |
7.0 |
11.5 |
0.6 |
274 |
0.27 |
MPA274K(J)21508130 |
15.0 |
8.0 |
12.5 |
0.6 |
274 |
0.27 |
MPA274K(J)22005100 |
20.0 |
5.5 |
9.5 |
0.6 |
334 |
0.33 |
MPA334K(J)22006100 |
20.0 |
6.0 |
10.5 |
0.6 |
394 |
0.39 |
MPA394K(J)22007110 |
20.0 |
7.0 |
11.0 |
0.6 |
474 |
0.47 |
MPA474K(J)22008120 |
20.0 |
7.5 |
11.5 |
0.8 |
564 |
0.56 |
MPA564K(J)22008130 |
20.0 |
8.0 |
13.0 |
0.8 |
684 |
0.68 |
MPA684K(J)22008150 |
20.0 |
8.5 |
14.5 |
0.8 |
824 |
0.82 |
MPA824K(J)22009160 |
20.0 |
9.5 |
16.0 |
0.8 |
684 |
0.68 |
MPA684K(J)22506130 |
25.0 |
6.5 |
13.0 |
0.8 |
824 |
0.82 |
MPA824K(J)22507140 |
25.0 |
7.5 |
13.5 |
0.8 |
105 |
1.0 |
MPA105K(J)22508150 |
25.0 |
8.5 |
14.5 |
0.8 |
125 |
1.2 |
MPA125K(J)22509170 |
25.0 |
8.5 |
16.5 |
0.8 |
155 |
1.5 |
MPA155K(J)22510180 |
25.0 |
10.0 |
18.0 |
0.8 |
185 |
1.8 |
MPA185K(J)22511190 |
25.0 |
11.0 |
19.0 |
0.8 |
225 |
2.2 |
MPA225K(J)22513210 |
25.0 |
12.5 |
20.5 |
0.8 |
225 |
2.2 |
MPA225K(J)23210180 |
32.0 |
10.0 |
18.0 |
0.8 |
275 |
2.7 |
MPA275K(J)23211190 |
32.0 |
11.5 |
19.5 |
0.8 |
335 |
3.3 |
MPA335K(J)23213210 |
32.0 |
13.0 |
21.0 |
0.8 |
395 |
3.9 |
MPA395K(J)23214220 |
32.0 |
14.0 |
22.0 |
0.8 |
475 |
4.7 |
MPA475K(J)23216240 |
32.0 |
16.0 |
24.0 |
1.0 |
565 |
5.6 |
MPA565K(J)23516240 |
35.0 |
16.0 |
24.0 |
1.0 |
685 |
6.8 |
MPA685K(J)23518260 |
35.0 |
18.0 |
26.0 |
1.0 |
825 |
8.2 |
MPA825K(J)23520280 |
35.0 |
20.0 |
28.0 |
1.0 |
106 |
10.0 |
MPA106K(J)23522300 |
35.0 |
22.5 |
30.5 |
1.0 |
126 |
12.0 |
MPA126K(J)23524340 |
35.0 |
24.0 |
33.5 |
1.0 |
156 |
15.0 |
MPA156K(J)24523320 |
45.0 |
22.5 |
32.0 |
1.0 |
186 |
18.0 |
MPA186K(J)24525350 |
45.0 |
25.0 |
34.5 |
1.0 |
400VDC |
||||||
104 |
0.1 |
MPA104K(J)41506100 |
15.0 |
5.5 |
9.5 |
0.6 |
124 |
0.12 |
MPA124K(J)42004080 |
20.0 |
4.5 |
8.5 |
0.6 |
154 |
0.15 |
MPA154K(J)42005090 |
20.0 |
5.0 |
9.0 |
0.6 |
184 |
0.18 |
MPA184K(J)42005090 |
20.0 |
5.5 |
9.5 |
0.6 |
224 |
0.22 |
MPA224K(J)42006100 |
20.0 |
6.5 |
10.5 |
0.6 |
274 |
0.27 |
MPA274K(J)42007120 |
20.0 |
7.0 |
11.5 |
0.6 |
334 |
0.33 |
MPA334K(J)42008130 |
20.0 |
8.0 |
12.5 |
0.8 |
394 |
0.39 |
MPA394K(J)42009130 |
20.0 |
8.5 |
13.5 |
0.8 |
474 |
0.47 |
MPA474K(J)42009150 |
20.0 |
9.0 |
15.5 |
0.8 |
564 |
0.56 |
MPA564K(J)42010160 |
20.0 |
10.0 |
16.5 |
0.8 |
684 |
0.68 |
MPA684K(J)42508150 |
25.0 |
8.5 |
15.0 |
0.8 |
105 |
1.0 |
MPA105K(J)42510170 |
25.0 |
10.5 |
16.5 |
0.8 |
125 |
1.2 |
MPA125K(J)42511190 |
25.0 |
11.5 |
19.5 |
0.8 |
155 |
1.55 |
MPA155K(J)42513210 |
25.0 |
13.0 |
21.0 |
0.8 |
185 |
1.8 |
MPA185K(J)43211190 |
32.0 |
11.5 |
19.5 |
0.8 |
225 |
2.2 |
MPA225K(J)43213210 |
32.0 |
13.0 |
21.0 |
0.8 |
275 |
2.75 |
MPA275K(J)43513210 |
35.0 |
13.0 |
21.0 |
0.8 |
335 |
3.3 |
MPA335K(J)43515230 |
35.0 |
15.0 |
22.5 |
0.8 |
395 |
3.9 |
MPA395K(J)43516240 |
35.0 |
16.5 |
24.5 |
1.0 |
475 |
4.7 |
MPA475K(J)43518260 |
35.0 |
18.0 |
26.0 |
1.0 |
565 |
5.6 |
MPA565K(J)43520280 |
35.0 |
20.0 |
28.0 |
1.0 |
685 |
6.8 |
MPA685K(J)43523310 |
35.0 |
22.5 |
30.5 |
1.0 |
825 |
8.2 |
MPA825K(J)43524340 |
35.0 |
24.5 |
34.0 |
1.0 |
106 |
10 |
MPA106K(J)45021300 |
50.0 |
21.0 |
30.5 |
1.0 |
126 |
12 |
MPA126K(J)45023330 |
50.0 |
23.0 |
32.5 |
1.0 |
156 |
15 |
MPA156K(J)45026360 |
50.0 |
26.5 |
36.0 |
1.0 |
186 |
18 |
MPA186K(J)45029390 |
50.0 |
29.5 |
39.0 |
1.0 |
630VDC |
||||||
333 |
0.033 |
MPA333K(J)61506100 |
15.0 |
5.5 |
9.5 |
0.6 |
393 |
0.039 |
MPA393K(J)61506100 |
15.0 |
6.0 |
10.0 |
0.6 |
473 |
0.047 |
MPA473K(J)61507110 |
15.0 |
7.0 |
11.0 |
0.6 |
563 |
0.056 |
MPA563K(J)61508120 |
15.0 |
7.5 |
11.5 |
0.6 |
683 |
0.068 |
MPA683K(J)61506100 |
15.0 |
5.5 |
9.5 |
0.6 |
823 |
0.082 |
MPA823K(J)61506100 |
15.0 |
6.0 |
10.0 |
0.6 |
104 |
0.1 |
MPA104K(J)62006100 |
20.0 |
6.5 |
10.5 |
0.6 |
124 |
0.12 |
MPA124K(J)62006100 |
20.0 |
6.0 |
10.0 |
0.6 |
154 |
0.15 |
MPA154K(J)62007110 |
20.0 |
7.0 |
11.0 |
0.6 |
184 |
0.18 |
MPA184K(J)62008120 |
20.0 |
7.5 |
11.5 |
0.8 |
224 |
0.22 |
MPA224K(J)62009130 |
20.0 |
8.5 |
12.5 |
0.8 |
274 |
0.27 |
MPA274K(J)62010140 |
20.0 |
10.0 |
14.5 |
0.8 |
334 |
0.33 |
MPA334K(J)62011160 |
20.0 |
11.0 |
16.0 |
0.8 |
394 |
0.39 |
MPA394K(J)62509140 |
25.0 |
9.5 |
14.5 |
0.8 |
474 |
0.47 |
MPA474K(J)62511150 |
25.0 |
10.5 |
15.5 |
0.8 |
564 |
0.56 |
MPA564K(J)62512160 |
25.0 |
11.5 |
16.5 |
0.8 |
684 |
0.68 |
MPA684K(J)62513180 |
25.0 |
13.0 |
18.0 |
0.8 |
Products Type |
Item’s No, |
Dimensions（mm） |
||||
Capacitance µF |
W±1.0 |
T ±1.0 |
H±1.0 |
d ±0.05 |
||
824 |
0.82 |
MPA824K(J)62514190 |
25.0 |
14.5 |
19.0 |
0.8 |
105 |
1.0 |
MPA105K(J)63211190 |
32.0 |
11.5 |
19.5 |
0.8 |
125 |
1.2 |
MPA125K(J)63213210 |
32.0 |
13.0 |
20.5 |
0.8 |
155 |
1.5 |
MPA155K(J)63214220 |
32.0 |
14.0 |
22.0 |
0.8 |
185 |
1.8 |
MPA185K(J)63216240 |
32.0 |
16.0 |
24.0 |
1.0 |
225 |
2.2 |
MPA225K(J)63218260 |
32.0 |
18.0 |
26.0 |
1.0 |
275 |
2.7 |
MPA275K(J)63518260 |
35.0 |
18.0 |
26.0 |
1.0 |
475 |
4.7 |
MPA475K(J)65518260 |
55.0 |
18.0 |
26.0 |
1.0 |
685 |
6.8 |
MPA685K(J)65522300 |
55.0 |
22.5 |
30.5 |
1.0 |
825 |
8.2 |
MPA825K(J)65525330 |
55.0 |
25.0 |
33.0 |
1.0 |
106 |
10 |
MPA106K(J)65528360 |
55.0 |
28.0 |
36.0 |
1.0 |
126 |
12 |
MPA126K(J)65531390 |
55.0 |
31.0 |
39.0 |
1.0 |
CBB20（MPT）Cylinder
Products Type |
Item’s No, |
Dimensions（mm） |
|||
Capacitance µF |
W±1.0 |
D±1.0 |
d ±0.05 |
||
250VDC |
|||||
683 |
0.068 |
MPT683K(J)215060 |
15.0 |
6.0 |
0.6 |
823 |
0.082 |
MPT823K(J)215070 |
15.0 |
6.5 |
0.6 |
104 |
0.1 |
MPT104K(J)215070 |
15.0 |
7.0 |
0.6 |
124 |
0.12 |
MPT124K(J)215080 |
15.0 |
7.5 |
0.6 |
154 |
0.15 |
MPT154K(J)215080 |
15.0 |
8.5 |
0.6 |
184 |
0.18 |
MPT184K(J)215090 |
15.0 |
9.0 |
0.6 |
224 |
0.22 |
MPT224K(J)215100 |
15.0 |
10.0 |
0.6 |
274 |
0.27 |
MPT274K(J)215110 |
15.0 |
10.5 |
0.6 |
274 |
0.27 |
MPT274K(J)220080 |
20.0 |
8.0 |
0.6 |
334 |
0.33 |
MPT334K(J)220090 |
20.0 |
9.0 |
0.6 |
394 |
0.39 |
MPT394K(J)220090 |
20.0 |
9.5 |
0.6 |
474 |
0.47 |
MPT474K(J)220100 |
20.0 |
10.5 |
0.8 |
564 |
0.56 |
MPT564K(J)220110 |
20.0 |
11.0 |
0.8 |
684 |
0.68 |
MPT684K(J)220120 |
20.0 |
12.0 |
0.8 |
824 |
0.82 |
MPT824K(J)220130 |
20.0 |
13.0 |
0.8 |
684 |
0.68 |
MPT684K(J)225100 |
25.0 |
10.0 |
0.8 |
824 |
0.82 |
MPT824K(J)225110 |
25.0 |
11.0 |
0.8 |
105 |
1.0 |
MPT105K(J)225120 |
25.0 |
12.0 |
0.8 |
125 |
1.2 |
MPT125K(J)225130 |
25.0 |
13.0 |
0.8 |
155 |
1.5 |
MPT155K(J)225140 |
25.0 |
14.5 |
0.8 |
185 |
1.8 |
MPT185K(J)225160 |
25.0 |
15.5 |
0.8 |
225 |
2.2 |
MPT225K(J)225170 |
25.0 |
17.0 |
0.8 |
225 |
2.2 |
MPT225K(J)232140 |
32.0 |
14.5 |
0.8 |
275 |
2.7 |
MPT275K(J)232160 |
32.0 |
16.0 |
0.8 |
335 |
3.3 |
MPT335K(J)232170 |
32.0 |
17.5 |
0.8 |
395 |
3.9 |
MPT395K(J)232190 |
32.0 |
19.0 |
0.8 |
475 |
4.7 |
MPT475K(J)232210 |
32.0 |
20.5 |
1.0 |
565 |
5.6 |
MPT565K(J)235210 |
35.0 |
20.5 |
1.0 |
685 |
6.8 |
MPT685K(J)235230 |
35.0 |
22.5 |
1.0 |
825 |
8.2 |
MPT825K(J)235250 |
35.0 |
25.0 |
1.0 |
106 |
10 |
MPT106K(J)235270 |
35.0 |
27.0 |
1.0 |
126 |
12 |
MPT126K(J)235300 |
35.0 |
30.0 |
1.0 |
156 |
15 |
MPT156K(J)245280 |
45.0 |
28.5 |
1.0 |
186 |
18 |
MPT186K(J)245310 |
45.0 |
31.0 |
1.0 |
400VDC |
|||||
473 |
0.047 |
MPT473K(J)415060 |
15.0 |
6.0 |
0.6 |
563 |
0.056 |
MPT563K(J)415060 |
15.0 |
6.5 |
0.6 |
683 |
0.068 |
MPT683K(J)415070 |
15.0 |
7.0 |
0.6 |
823 |
0.082 |
MPT823K(J)415080 |
15.0 |
7.5 |
0.6 |
104 |
0.1 |
MPT104K(J)415080 |
15.0 |
8.0 |
0.6 |
124 |
0.12 |
MPT124K(J)420070 |
20.0 |
7.0 |
0.6 |
154 |
0.15 |
MPT154K(J)420080 |
20.0 |
7.5 |
0.6 |
184 |
0.18 |
MPT184K(J)420080 |
20.0 |
8.0 |
0.6 |
224 |
0.22 |
MPT224K(J)420090 |
20.0 |
9.0 |
0.6 |
274 |
0.27 |
MPT274K(J)420100 |
20.0 |
10.0 |
0.6 |
334 |
0.33 |
MPT334K(J)420110 |
20.0 |
10.5 |
0.8 |
394 |
0.39 |
MPT394K(J)420120 |
20.0 |
11.5 |
0.8 |
474 |
0.47 |
MPT474K(J)420130 |
20.0 |
12.5 |
0.8 |
564 |
0.56 |
MPT564K(J)420140 |
20.0 |
13.5 |
0.8 |
684 |
0.68 |
MPT684K(J)425120 |
25.0 |
12.0 |
0.8 |
105 |
1.0 |
MPT105K(J)425140 |
25.0 |
14.0 |
0.8 |
125 |
1.2 |
MPT125K(J)425150 |
25.0 |
15.5 |
0.8 |
155 |
1.5 |
MPT155K(J)425170 |
25.0 |
17.0 |
0.8 |
185 |
1.8 |
MPT185K(J)432160 |
32.0 |
16.0 |
0.8 |
225 |
2.2 |
MPT225K(J)432180 |
32.0 |
17.5 |
0.8 |
275 |
2.7 |
MPT275K(J)435180 |
35.0 |
18.0 |
0.8 |
335 |
3.3 |
MPT335K(J)435190 |
35.0 |
19.0 |
0.8 |
395 |
3.9 |
MPT395K(J)435210 |
35.0 |
20.5 |
1.0 |
475 |
4.7 |
MPT475K(J)435230 |
35.0 |
23.0 |
1.0 |
565 |
5.6 |
MPT565K(J)435250 |
35.0 |
25.0 |
1.0 |
685 |
6.8 |
MPT685K(J)435270 |
35.0 |
27.5 |
1.0 |
825 |
8.2 |
MPT825K(J)435300 |
35.0 |
30.0 |
1.0 |
106 |
10 |
MPT106K(J)450260 |
50.0 |
26.5 |
1.0 |
126 |
12 |
MPT126K(J)450290 |
50.0 |
29.0 |
1.0 |
630VDC |
|||||
183 |
0.018 |
MPT183K(J)615060 |
15.0 |
6.5 |
0.6 |
223 |
0.022 |
MPT223K(J)615070 |
15.0 |
7.0 |
0.6 |
273 |
0.027 |
MPT273K(J)615080 |
15.0 |
7.5 |
0.6 |
333 |
0.033 |
MPT333K(J)615080 |
15.0 |
8.0 |
0.6 |
393 |
0.039 |
MPT393K(J)615070 |
15.0 |
6.5 |
0.6 |
473 |
0.047 |
MPT473K(J)615070 |
15.0 |
7.0 |
0.6 |
563 |
0.056 |
MPT563K(J)615070 |
15.0 |
7.5 |
0.6 |
683 |
0.068 |
MPT683K(J)615080 |
15.0 |
8.0 |
0.6 |
823 |
0.082 |
MPT823K(J)615090 |
15.0 |
8.5 |
0.6 |
104 |
0.1 |
MPT104K(J)620080 |
20.0 |
8.5 |
0.6 |
124 |
0.12 |
MPT124K(J)620090 |
20.0 |
9.0 |
0.6 |
154 |
0.15 |
MPT154K(J)620100 |
20.0 |
10.0 |
0.6 |
184 |
0.18 |
MPT184K(J)620110 |
20.0 |
11.0 |
0.8 |
224 |
0.22 |
MPT224K(J)620120 |
20.0 |
12.0 |
0.8 |
274 |
0.27 |
MPT274K(J)620130 |
20.0 |
13.0 |
0.8 |
334 |
0.33 |
MPT334K(J)620140 |
20.0 |
14.0 |
0.8 |
394 |
0.39 |
MPT394K(J)625120 |
25.0 |
12.0 |
0.8 |
474 |
0.47 |
MPT474K(J)625130 |
25.0 |
13.0 |
0.8 |
564 |
0.56 |
MPT564K(J)625140 |
25.0 |
14.0 |
0.8 |
684 |
0.68 |
MPT684K(J)625150 |
25.0 |
15.5 |
0.8 |
824 |
0.82 |
MPT824K(J)625170 |
25.0 |
17.0 |
0.8 |
105 |
1.0 |
MPT105K(J)632160 |
32.0 |
16.0 |
0.8 |
125 |
1.2 |
MPT125K(J)632170 |
32.0 |
17.5 |
0.8 |
155 |
1.5 |
MPT155K(J)632190 |
32.0 |
19.5 |
0.8 |
185 |
1.8 |
MPT185K(J)632210 |
32.0 |
21.0 |
1.0 |
225 |
2.2 |
MPT225K(J)632230 |
32.0 |
23.0 |
1.0 |
275 |
2.7 |
MPT275K(J)635230 |
35.0 |
23.5 |
1.0 |
335 |
3.3 |
MPT335K(J)635260 |
35.0 |
25.5 |
1.0 |
395 |
3.9 |
MPT395K(J)635280 |
35.0 |
28.0 |
1.0 |
P.S.:
All the dimensions above are for your reference, the real ones are according to our specification documents; Please contact with us if you have any other questions such as the Absolute Rating etc.
