GB10188 (IEC384-13)
■ Structures
Material: Polypropylene film
Electrode: Aluminum Foil
Enveloped with Fire-proof Epoxide Resin (UL94 V-0)
Pin: With copper-clad steel leads or Copper wire.
■ Using area
High Frequency, DC, and Impulsion High Current conditions. e.g. Lamps,
Lanterns and power supplier etc
■ Features:
Small Size ,Very low loss at high frequency, the low temperature in hanging with high impact
■ Specifications
Climate Conditions |
-40--+85℃ |
||||||
Rated Voltage Vdc |
250V、400V、630V、1000V |
||||||
Capacitance Tolerance |
0.001µF-0.47µF |
||||||
Capacitance Tolerance |
±5% ±10% |
||||||
DC Testing Voltage |
2.0UR （5S） |
||||||
Insulation Resistance and Time Consistence |
≤0.33µF |
≥30000MΩ |
|||||
＞0.33µF |
≥10000S（MΩ. µF） |
||||||
Dissipation Factor |
≤0.0008 10kHz 20℃ |
||||||
Climate |
Temperature：40±2℃ |
||||||
Resistance |
+85℃，1000h |
||||||
dv/dt（v/µs） |
Pitch |
10 |
15 |
22.5 |
27.5 |
31 |
|
dv/dt |
1500 |
800 |
500 |
300 |
100 |
||
■ The exchanging of VAC and VDC
Direct Current |
100VDC |
250VDC |
400VDC |
630VDC |
1000VDC |
Alternate Current |
63VAC |
160VAC |
200VAC |
250VAC |
250VAC |
■ The Relationship of AC Voltage Proof and Frequency

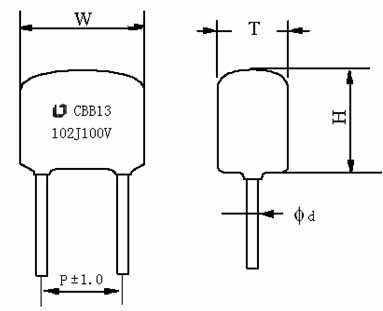

■ Outline Drawing
Pitch mm |
10 |
15 |
22.5 |
27.5 |
31 |
The Diameter of the Pin mm |
0.6 |
0.6/0.8 |
0.8 |
0.8 |
0.8 |
■ Structure
■ Characteristic Graph

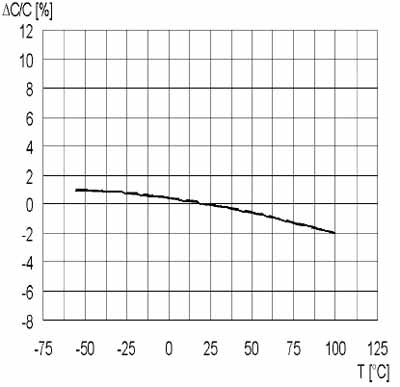

Capacitance and Temperature Graph

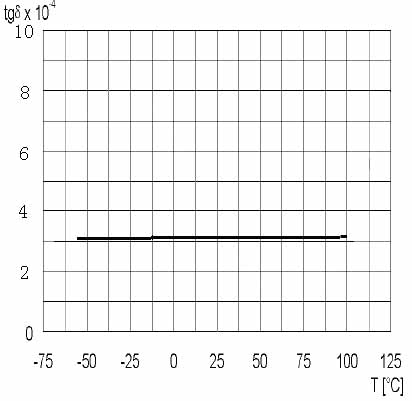

Dissipation Factor and Temperature Graph

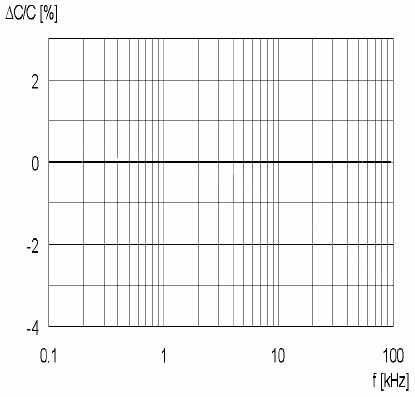

Capacitance and Frequency Graph

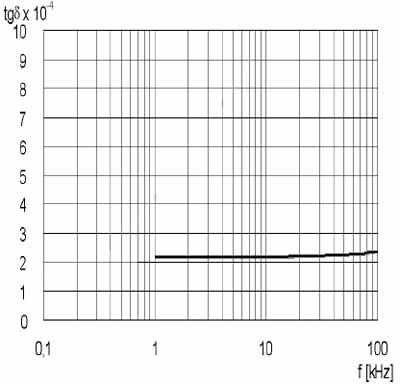

Dissipation Factor and Frequency Graph

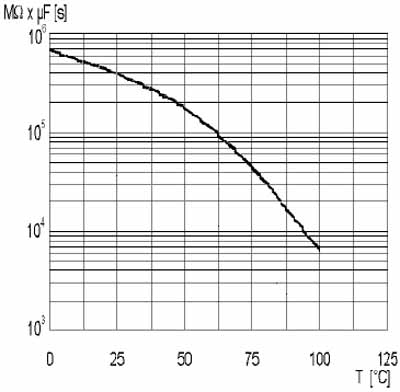

Insulation Resistance and Temperature Graph

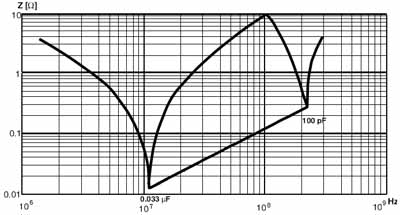

Impedance and Frequency Graph
CBB13（PPN）
Products Type |
Item’s No. |
Dimensions（mm） |
|||
Capacitance µF |
Wmax |
T max |
H max |
P ±1.0 |
|
250VDC |
|||||
102 |
0.0010 |
PPN102J(K)21206100 |
12.0 |
5.5 |
9.5 |
8.5 |
122 |
0.0012 |
PPN122J(K)21206100 |
12.0 |
5.5 |
9.5 |
8.5 |
152 |
0.0015 |
PPN152J(K)21206100 |
12.0 |
5.5 |
9.5 |
8.5 |
182 |
0.0018 |
PPN182J(K)21206100 |
12.0 |
5.5 |
9.5 |
8.5 |
222 |
0.0022 |
PPN222J(K)21206100 |
12.0 |
5.5 |
9.5 |
8.5 |
332 |
0.0033 |
PPN332J(K)21207100 |
12.0 |
6.5 |
10.0 |
8.5 |
392 |
0.0039 |
PPN392J(K)21207100 |
12.0 |
6.5 |
10.0 |
8.5 |
472 |
0.0047 |
PPN472J(K)21207100 |
12.0 |
6.5 |
10.0 |
8.5 |
562 |
0.0056 |
PPN562J(K)21207110 |
12.0 |
7.0 |
11.0 |
8.5 |
682 |
0.0068 |
PPN682J(K)21207110 |
12.0 |
7.0 |
11.0 |
8.5 |
822 |
0.0082 |
PPN822J(K)21407120 |
14.0 |
7.0 |
11.5 |
10.0 |
103 |
0.010 |
PPN103J(K)21407120 |
14.0 |
7.0 |
11.5 |
10.0 |
123 |
0.012 |
PPN123J(K)21806120 |
18.0 |
6.0 |
11.5 |
14.0 |
153 |
0.015 |
PPN153J(K)21806120 |
18.0 |
6.0 |
11.5 |
14.0 |
183 |
0.018 |
PPN183J(K)21806120 |
18.0 |
6.5 |
11.5 |
14.0 |
223 |
0.022 |
PPN223J(K)21807120 |
18.0 |
7.0 |
12.0 |
14.0 |
273 |
0.027 |
PPN273J(K)21807140 |
18.0 |
7.0 |
13.5 |
14.0 |
333 |
0.033 |
PPN333J(K)21808140 |
18.0 |
7.5 |
14.0 |
14.0 |
393 |
0.039 |
PPN393J(K)21808150 |
18.0 |
8.0 |
14.5 |
14.0 |
473 |
0.047 |
PPN473J(K)21809160 |
18.0 |
8.5 |
15.5 |
14.0 |
563 |
0.056 |
PPN563J(K)2308170 |
22.5 |
8.0 |
16.5 |
19.0 |
683 |
0.068 |
PPN683J(K)2309170 |
22.5 |
8.5 |
17.0 |
19.0 |
823 |
0.082 |
PPN823J(K)2309180 |
22.5 |
9.0 |
17.5 |
19.0 |
104 |
0.10 |
PPN104J(K)2310180 |
22.5 |
10.0 |
18.0 |
19.0 |
124 |
0.12 |
PPN124J(K)2511210 |
25.0 |
11.0 |
21.0 |
21.0 |
154 |
0.15 |
PPN154J(K)2511210 |
25.0 |
11.0 |
21.0 |
21.0 |
184 |
0.18 |
PPN184J(K)2911230 |
29.0 |
11.0 |
23.0 |
25.0 |
224 |
0.22 |
PPN224J(K)2911230 |
29.0 |
11.0 |
23.0 |
25.0 |
274 |
0.27 |
PPN274J(K)2913250 |
29.0 |
13.0 |
25.0 |
25.0 |
334 |
0.33 |
PPN334J(K)2915260 |
30.0 |
15.0 |
26.0 |
25.0 |
394 |
0.39 |
PPN394J(K)2917280 |
30.0 |
17.0 |
28.0 |
25.0 |
474 |
0.47 |
PPN474J(K)2918290 |
30.0 |
18.0 |
29.0 |
25.0 |
400VD |
||||||
102 |
0.001 |
PPN102J(K)41406100 |
13.5 |
6.0 |
10.0 |
10.0 |
122 |
0.0012 |
PPN122J(K)41406100 |
13.5 |
6.0 |
10.0 |
10.0 |
152 |
0.0015 |
PPN152J(K)41406100 |
13.5 |
6.0 |
10.0 |
10.0 |
182 |
0.0018 |
PPN182J(K)41406100 |
13.5 |
6.0 |
10.0 |
10.0 |
222 |
0.0022 |
PPN222J(K)41406100 |
13.5 |
6.0 |
10.0 |
10.0 |
272 |
0.0027 |
PPN272J(K)41406100 |
13.5 |
6.0 |
10.0 |
10.0 |
332 |
0.0033 |
PPN332J(K)41406100 |
13.5 |
6.0 |
10.0 |
10.0 |
392 |
0.0039 |
PPN392J(K)41506120 |
15.0 |
6.0 |
11.5 |
11.0 |
472 |
0.0047 |
PPN472J(K)41506120 |
15.0 |
6.0 |
11.5 |
11.0 |
562 |
0.0056 |
PPN562J(K)41507120 |
15.0 |
7.0 |
12.0 |
11.0 |
682 |
0.0068 |
PPN682J(K)41507120 |
15.0 |
7.0 |
12.0 |
11.0 |
822 |
0.0082 |
PPN822J(K)41508130 |
15.0 |
8.0 |
13.0 |
11.0 |
103 |
0.010 |
PPN103J(K)41508130 |
15.0 |
8.0 |
13.0 |
11.0 |
123 |
0.012 |
PPN123J(K)41807130 |
18.0 |
7.0 |
12.5 |
14.0 |
153 |
0.015 |
PPN153J(K)41807130 |
18.0 |
7.0 |
12.5 |
14.0 |
183 |
0.018 |
PPN183J(K)41808130 |
18.0 |
7.5 |
12.5 |
14.0 |
223 |
0.022 |
PPN223J(K)41808140 |
18.0 |
8.0 |
13.5 |
14.0 |
273 |
0.027 |
PPN273J(K)41808150 |
18.0 |
8.0 |
15.0 |
14.0 |
333 |
0.033 |
PPN333J(K)42308150 |
22.5 |
8.0 |
15.0 |
19.0 |
393 |
0.039 |
PPN393J(K)42309160 |
22.5 |
8.5 |
15.5 |
19.0 |
473 |
0.047 |
PPN473J(K)42309160 |
22.5 |
9.0 |
16.0 |
19.0 |
563 |
0.056 |
PPN563J(K)42309170 |
22.5 |
9.0 |
17.0 |
19.0 |
683 |
0.068 |
PPN683J(K)42310190 |
22.5 |
10.0 |
18.5 |
19.0 |
823 |
0.082 |
PPN823J(K)42311190 |
22.5 |
11.0 |
19.0 |
19.0 |
104 |
0.10 |
PPN104J(K)42910180 |
29.0 |
10.0 |
18.0 |
24.0 |
124 |
0.12 |
PPN124J(K)4291310 |
29.0 |
13.0 |
21.0 |
24.0 |
154 |
0.15 |
PPN154J(K)4291310 |
29.0 |
13.0 |
21.0 |
24.0 |
184 |
0.18 |
PPN184J(K)43014250 |
30.0 |
13.5 |
25.0 |
25.0 |
224 |
0.22 |
PPN224J(K)43014250 |
30.0 |
13.5 |
25.0 |
25.0 |
274 |
0.27 |
PPN274J(K)43114260 |
31.0 |
14.0 |
26.0 |
26.0 |
334 |
0.33 |
PPN334J(K)43115270 |
31.0 |
15.0 |
27.0 |
26.0 |
394 |
0.39 |
PPN394J(K)43117290 |
31.0 |
17.0 |
29.0 |
26.0 |
474 |
0.47 |
PPN474J(K)43220300 |
32.0 |
20.0 |
30.0 |
26.0 |
630VDC |
||||||
102 |
0.001 |
PPN102J(K)61506100 |
14.5 |
6.0 |
10.0 |
11.0 |
122 |
0.0012 |
PPN122J(K)61506100 |
14.5 |
6.0 |
10.0 |
11.0 |
152 |
0.0015 |
PPN152J(K)61507110 |
14.5 |
6.5 |
11.0 |
11.0 |
182 |
0.0018 |
PPN182J(K)61507110 |
14.5 |
6.5 |
11.0 |
11.0 |
222 |
0.0022 |
PPN222J(K)61507110 |
14.5 |
6.5 |
11.0 |
11.0 |
272 |
0.0027 |
PPN272J(K)61508120 |
14.5 |
7.5 |
12.0 |
11.0 |
332 |
0.0033 |
PPN332J(K)61508120 |
14.5 |
7.5 |
12.0 |
11.0 |
392 |
0.0039 |
PPN392J(K)61509130 |
14.5 |
8.5 |
13.0 |
11.0 |
472 |
0.0047 |
PPN472J(K)61509130 |
14.5 |
8.5 |
13.0 |
11.0 |
562 |
0.0056 |
PPN562J(K)61807130 |
18.0 |
7.0 |
12.5 |
14.0 |
682 |
0.0068 |
PPN682J(K)61807130 |
18.0 |
7.0 |
12.5 |
14.0 |
822 |
0.0082 |
PPN822J(K)61808150 |
18.0 |
7.5 |
14.5 |
14.0 |
103 |
0.010 |
PPN103J(K)61808150 |
18.0 |
7.5 |
14.5 |
14.0 |
123 |
0.012 |
PPN123J(K)62308150 |
22.5 |
8.0 |
15.0 |
19.0 |
153 |
0.015 |
PPN153J(K)62308150 |
22.5 |
8.0 |
15.0 |
19.0 |
183 |
0.018 |
PPN183J(K)62309160 |
22.5 |
8.5 |
15.5 |
19.0 |
223 |
0.022 |
PPN223J(K)62309160 |
22.5 |
9.0 |
16.0 |
19.0 |
273 |
0.027 |
PPN273J(K)62310180 |
22.5 |
9.5 |
17.5 |
19.0 |
333 |
0.033 |
PPN333J(K)62310190 |
22.5 |
10.0 |
18.5 |
19.0 |
393 |
0.039 |
PPN393J(K)62311190 |
22.5 |
11.0 |
19.0 |
19.0 |
473 |
0.047 |
PPN473J(K)62312200 |
22.5 |
11.5 |
20.0 |
19.0 |
563 |
0.056 |
PPN563J(K)62911190 |
29.0 |
11.0 |
19.0 |
24.0 |
683 |
0.068 |
PPN683J(K)62912200 |
29.0 |
12.0 |
20.0 |
24.0 |
823 |
0.082 |
PPN823J(K)62912220 |
29.0 |
12.0 |
22.0 |
24.0 |
104 |
0.10 |
PPN104J(K)62914230 |
29.0 |
13.5 |
23.0 |
24.0 |
1000VDC |
||||||
102 |
0.001 |
PPN102J(K)A1506100 |
14.5 |
6.0 |
10.0 |
11.0 |
122 |
0.0012 |
PPN122J(K)A1506100 |
14.5 |
6.0 |
10.0 |
11.0 |
152 |
0.0015 |
PPN152J(K)A1506100 |
14.5 |
6.0 |
10.0 |
11.0 |
182 |
0.0018 |
PPN182J(K)A1607120 |
16.0 |
6.5 |
11.5 |
12.5 |
222 |
0.0022 |
PPN222J(K)A1607120 |
16.0 |
6.5 |
11.5 |
12.5 |
272 |
0.0027 |
PPN272J(K)A1608120 |
16.0 |
7.5 |
12.0 |
12.5 |
332 |
0.0033 |
PPN332J(K)A1608120 |
16.0 |
7.5 |
12.0 |
12.5 |
392 |
0.0039 |
PPN392J(K)A1608130 |
18.0 |
7.5 |
13.0 |
14.0 |
472 |
0.0047 |
PPN472J(K)A1808130 |
18.0 |
7.5 |
13.0 |
14.0 |
562 |
0.0056 |
PPN562J(K)A1808150 |
18.0 |
8.0 |
15.0 |
15.0 |
682 |
0.0068 |
PPN682J(K)A1808150 |
18.0 |
8.0 |
15.0 |
15.0 |
822 |
0.0082 |
PPN822J(K)A2309160 |
22.5 |
8.5 |
15.5 |
19.0 |
103 |
0.010 |
PPN103J(K)A2309160 |
22.5 |
8.5 |
15.5 |
19.0 |
123 |
0.012 |
PPN123J(K)A2310170 |
22.5 |
10.0 |
16.5 |
19.0 |
153 |
0.015 |
PPN153J(K)A2310170 |
22.5 |
10.0 |
16.5 |
19.0 |
183 |
0.018 |
PPN183J(K)A2310170 |
22.5 |
10.0 |
18.5 |
19.0 |
223 |
0.022 |
PPN223J(K)A2312190 |
22.5 |
11.5 |
19.0 |
19.0 |
273 |
0.027 |
PPN273J(K)A2312200 |
22.5 |
12.0 |
20.0 |
19.0 |
333 |
0.033 |
PPN333J(K)A2911200 |
29.0 |
11.0 |
19.5 |
24.0 |
393 |
0.039 |
PPN393J(K)A2912200 |
29.0 |
12.0 |
20.0 |
24.0 |
473 |
0.047 |
PPN473J(K)A2913210 |
29.0 |
13.0 |
21.0 |
24.0 |
563 |
0.056 |
PPN563J(K)A2914220 |
29.0 |
14.0 |
22.0 |
24.0 |
683 |
0.068 |
PPN683J(K)A2915240 |
29.0 |
15.0 |
23.5 |
24.0 |
823 |
0.082 |
PPN823J(K)A3414240 |
34.0 |
14.0 |
24.0 |
29.0 |
104 |
0.10 |
PPN104J(K)A3415250 |
34.0 |
15.0 |
25.0 |
29.0 |
P.S.:
All the dimensions above are for your reference, the real ones are according to our specification documents; Please contact with us if you have any other questions such as the Absolute Rating etc.
