GB6349-86(IEC384-11)
■ 结构
介质：聚酯膜。
电极：铝箔。
封装：阻燃环氧树脂（UL94 V-0）。
■ 典型应用
直流及低脉冲场合。
如：低频滤波、隔直流及旁路等。
不推荐使用在交流、滤波、振荡及高频场合。
■ 特点
体积很小，重量轻；
高可靠性。
■ 技术参数
气候条件 |
-40--+85℃ |
|
额定电压vdc |
100V、250V、400V、630V、1000V |
|
容量范围 |
0.001μF-0.47μF |
|
容量偏差 |
±5%? ±10% |
|
耐电压 |
2.0UR （5S） |
|
绝缘电阻 |
≤0.1μF |
≥30000MΩ |
＞0.1μF |
≥10000S （MΩ.μF） |
|
损耗角正切 |
≤0.01? 1kHz???? 20℃ |
|
稳态湿热 |
温度：40±2℃ |
|
耐久性 |
+85℃，1000h |
|
■ 电压代码释义
代码 |
1H |
1J |
2A |
2E |
2G |
2H |
2J |
3A |
电压V |
50 |
63 |
100 |
250 |
400 |
500 |
630 |
1000 |
■ 交流和直流电压的对应关系
直流电压 |
100VDC |
250VDC |
400VDC |
630VDC |
1000V |
交流电压 |
63VAC |
160VAC |
200VAC |
220VAC |
250VAC |
■ 交流耐压与频率的关系曲线
100VDC/63VAC 250VDC/160VAC
400VDC/200VAC 630VDC/220VAC

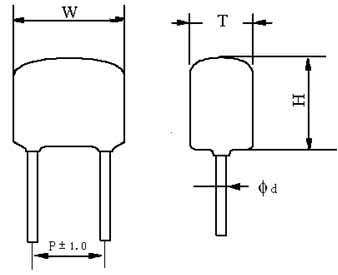

■ 外形尺寸
■ 结构图
■ 特性曲线图
- ?

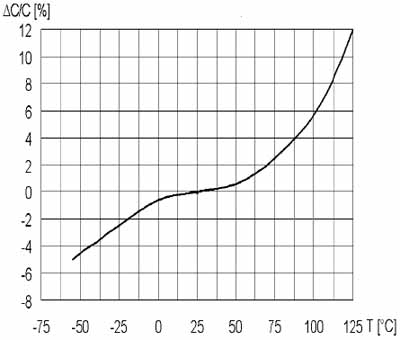

容量与温度特性曲线

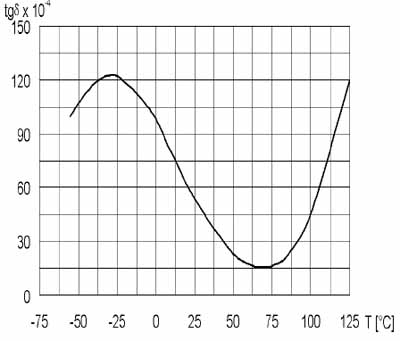

损耗角正切与温度特性曲线

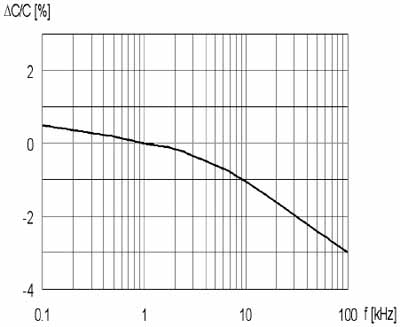

容量与频率特性曲线

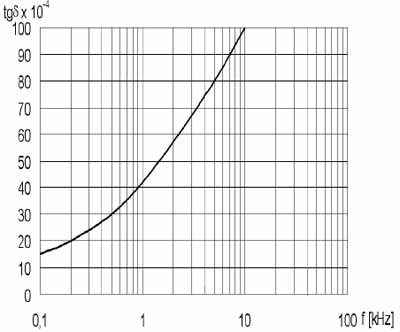

损耗角正切与频率特性曲线

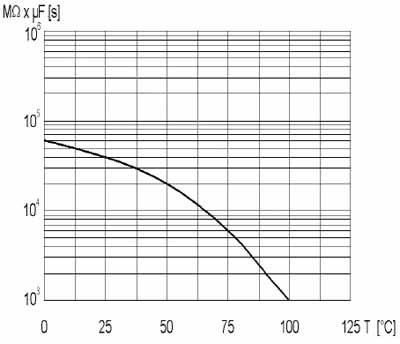

绝缘电阻与温度特性曲线

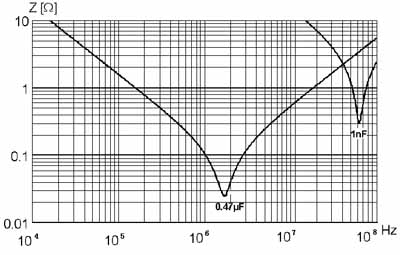

阻抗与频率特性曲线
CL11（PEI）
产品规格 |
产品编码 |
外形尺寸（mm） |
|||
容量 F |
Wmax |
T max |
H max |
P±1.0 |
|
50VDC/100VDC |
||||||
102 |
0.001 |
PEI102J(K)10604110 |
6.0 |
3.5 |
10.5 |
3.5 |
122 |
0.0012 |
PEI122J(K)10604110 |
6.0 |
3.5 |
10.5 |
3.5 |
152 |
0.0015 |
PEI152J(K)10604110 |
6.0 |
3.5 |
10.5 |
3.5 |
182 |
0.0018 |
PEI182J(K)10604110 |
6.0 |
3.5 |
10.5 |
3.5 |
222 |
0.0022 |
PEI222J(K)10604110 |
6.0 |
3.5 |
10.5 |
3.5 |
272 |
0.0027 |
PEI272J(K)10604110 |
6.0 |
3.5 |
10.5 |
3.5 |
332 |
0.0033 |
PEI332J(K)10604110 |
6.0 |
3.5 |
10.5 |
3.5 |
392 |
0.0039 |
PEI392J(K)10604110 |
6.0 |
3.5 |
10.5 |
3.5 |
472 |
0.0047 |
PEI472J(K)10604110 |
6.0 |
3.5 |
10.5 |
3.5 |
562 |
0.0056 |
PEI562J(K)10604110 |
6.0 |
3.5 |
10.5 |
3.5 |
682 |
0.0068 |
PEI682J(K)10604120 |
6.0 |
4.0 |
11.5 |
5.0 |
822 |
0.0082 |
PEI822J(K)10704120 |
6.5 |
4.0 |
11.5 |
5.0 |
103 |
0.01 |
PEI103J(K)10704120 |
6.5 |
4.0 |
11.5 |
5.0 |
123 |
0.012 |
PEI123J(K)10704120 |
6.5 |
4.0 |
11.5 |
5.0 |
153 |
0.015 |
PEI153J(K)10804120 |
7.3 |
4.0 |
12.0 |
5.0 |
183 |
0.018 |
PEI183J(K)10804120 |
7.5 |
4.0 |
12.0 |
5.0 |
223 |
0.022 |
PEI223J(K)10805120 |
8.0 |
4.5 |
12.0 |
5.0 |
273 |
0.027 |
PEI273J(K)10805120 |
8.0 |
5.0 |
12.0 |
5.0 |
333 |
0.033 |
PEI333J(K)11005120 |
9.5 |
5.0 |
12.0 |
5.0 |
393 |
0.039 |
PEI393J(K)11005120 |
9.5 |
5.0 |
12.0 |
5.0 |
473 |
0.047 |
PEI473J(K)11005120 |
9.5 |
5.0 |
12.0 |
5.0 |
563 |
0.056 |
PEI563J(K)11006130 |
10.0 |
5.5 |
12.5 |
7.5 |
683 |
0.068 |
PEI683J(K)11006130 |
10.0 |
5.5 |
12.5 |
7.5 |
823 |
0.082 |
PEI823J(K)11107130 |
11.0 |
6.5 |
12.5 |
7.5 |
104 |
0.1 |
PEI104J(K)11207150 |
11.5 |
6.5 |
14.5 |
7.5 |
124 |
0.12 |
PEI124J(K)11307170 |
12.5 |
7.0 |
16.5 |
8.0 |
154 |
0.15 |
PEI154J(K)11307170 |
12.5 |
7.0 |
16.5 |
8.0 |
184 |
0.18 |
PEI184J(K)11308170 |
13.0 |
7.5 |
16.5 |
8.0 |
224 |
0.22 |
PEI224J(K)11408180 |
14.0 |
8.0 |
17.5 |
9.0 |
334 |
0.33 |
PEI334J(K)11609200 |
16.0 |
8.5 |
19.5 |
10.1 |
394 |
0.39 |
PEI394J(K)11610220 |
16.0 |
10.0 |
21.5 |
10.0 |
474 |
0.47 |
PEI474J(K)11610220 |
16.0 |
10.0 |
21.5 |
10.0 |
250V |
||||||
102 |
0.001 |
PEI102J(K)20704110 |
6.5 |
4.0 |
11.0 |
3.5 |
122 |
0.0012 |
PEI122J(K)20704110 |
6.5 |
4.0 |
11.0 |
3.5 |
152 |
0.0015 |
PEI152J(K)20704110 |
6.5 |
4.0 |
11.0 |
3.5 |
182 |
0.0018 |
PEI182J(K)20704110 |
6.5 |
4.0 |
11.0 |
3.5 |
222 |
0.0022 |
PEI222J(K)20704110 |
6.5 |
4.0 |
11.0 |
3.5 |
272 |
0.0027 |
PEI272J(K)20704110 |
6.5 |
4.0 |
11.0 |
3.5 |
332 |
0.0033 |
PEI332J(K)20704110 |
6.5 |
4.0 |
11.0 |
3.5 |
392 |
0.0039 |
PEI392J(K)20704110 |
6.5 |
4.0 |
11.0 |
3.5 |
472 |
0.0047 |
PEI472J(K)20704110 |
6.5 |
4.0 |
11.0 |
3.5 |
562 |
0.0056 |
PEI562J(K)20704110 |
7.0 |
4.0 |
11.0 |
5.0 |
682 |
0.0068 |
PEI682J(K)20704110 |
7.0 |
4.0 |
11.0 |
5.0 |
822 |
0.0082 |
PEI822J(K)20804130 |
8.0 |
4.0 |
13.0 |
5.0 |
103 |
0.01 |
PEI103J(K)20804130 |
8.0 |
4.0 |
13.0 |
5.0 |
123 |
0.012 |
PEI123J(K)20905140 |
8.5 |
5.0 |
13.5 |
5.0 |
153 |
0.015 |
PEI153J(K)20905140 |
8.5 |
5.0 |
13.5 |
5.0 |
183 |
0.018 |
PEI183J(K)20906140 |
9.0 |
5.7 |
14.0 |
5.0 |
223 |
0.022 |
PEI223J(K)20906140 |
9.0 |
6.0 |
14.0 |
6.5 |
273 |
0.027 |
PEI273J(K)21006150 |
10.0 |
6.0 |
15.0 |
6.5 |
333 |
0.033 |
PEI333J(K)21007150 |
10.0 |
6.5 |
15.0 |
6.5 |
393 |
0.039 |
PEI393J(K)21207160 |
11.5 |
7.0 |
15.5 |
6.5 |
473 |
0.047 |
PEI473J(K)21309180 |
12.5 |
8.5 |
17.5 |
6.5 |
563 |
0.056 |
PEI563J(K)21409210 |
14.0 |
8.5 |
21.0 |
7.5 |
683 |
0.068 |
PEI683J(K)21409210 |
14.0 |
8.5 |
21.0 |
7.5 |
823 |
0.082 |
PEI823J(K)21610220 |
16.0 |
9.5 |
22.0 |
8.5 |
104 |
0.1 |
PEI104J(K)21710220 |
16.5 |
9.5 |
22.0 |
8.5 |
124 |
0.12 |
PEI124J(K)21711220 |
17.0 |
11 |
22 |
9.0 |
154 |
0.15 |
PEI154J(K)21711220 |
17.0 |
11.0 |
22.0 |
10.5 |
400V |
||||||
102 |
0.001 |
PEI102J(K)40704120 |
7.0 |
4.0 |
12.0 |
4.0 |
122 |
0.0012 |
PEI122J(K)40704120 |
7.0 |
4.0 |
12.0 |
4.0 |
152 |
0.0015 |
PEI152J(K)40804130 |
7.5 |
4.0 |
12.5 |
4.0 |
182 |
0.0018 |
PEI182J(K)40805130 |
7.5 |
5.0 |
12.5 |
4.0 |
222 |
0.0022 |
PEI222J(K)40805130 |
7.5 |
5.0 |
12.5 |
4.0 |
272 |
0.0027 |
PEI272J(K)40805140 |
8.0 |
5.0 |
13.5 |
6.0 |
332 |
0.0033 |
PEI332J(K)40805140 |
8.0 |
5.0 |
13.5 |
6.0 |
393 |
0.0039 |
PEI392J(K)40906140 |
9.0 |
6.0 |
14.0 |
6.0 |
472 |
0.0047 |
PEI472J(K)40906140 |
9.0 |
6.0 |
14.0 |
6.0 |
562 |
0.0056 |
PEI562J(K)41006140 |
9.5 |
6.0 |
14.0 |
6.0 |
682 |
0.0068 |
PEI682J(K)41006140 |
9.5 |
6.0 |
14.0 |
6.0 |
822 |
0.0082 |
PEI822J(K)41107150 |
10.5 |
6.5 |
15.0 |
7.0 |
103 |
0.01 |
PEI103J(K)41107150 |
10.5 |
6.5 |
15.0 |
7.0 |
123 |
0.012 |
PEI123J(K)41208160 |
12.0 |
8.0 |
15.5 |
7.0 |
153 |
0.015 |
PEI153J(K)41208160 |
12.0 |
8.0 |
15.5 |
7.0 |
183 |
0.018 |
PEI183J(K)41209190 |
12.0 |
8.5 |
18.5 |
7.0 |
223 |
0.022 |
PEI223J(K)41209190 |
12.0 |
8.5 |
18.5 |
7.0 |
273 |
0.027 |
PEI273J(K)41409210 |
13.5 |
8.5 |
21.0 |
9.0 |
333 |
0.033 |
PEI333J(K)41409210 |
13.5 |
8.5 |
21.0 |
9.0 |
393 |
0.039 |
PEI393J(K)41610220 |
15.5 |
9.5 |
22.0 |
9.0 |
473 |
0.047 |
PEI473J(K)41610220 |
15.5 |
9.5 |
22.0 |
9.0 |
563 |
0.056 |
PEI563J(K)41812240 |
17.5 |
11.5 |
23.5 |
9.0 |
683 |
0.068 |
PEI683J(K)41812240 |
17.5 |
11.5 |
23.5 |
9.0 |
823 |
0.082 |
PEI823J(K)41911250 |
19.0 |
11.0 |
24.5 |
12 |
104 |
0.1 |
PEI104J(K)41911250 |
19.0 |
12.0 |
24.5 |
12 |
630V |
||||||
102 |
0.001 |
PEI102J(K)60805130 |
7.5 |
4.5 |
12.5 |
5.0 |
122 |
0.0012 |
PEI122J(K)60805130 |
7.5 |
4.5 |
12.5 |
5.0 |
152 |
0.0015 |
PEI152J(K)60805130 |
7.5 |
4.5 |
12.5 |
5.0 |
182 |
0.0018 |
PEI182J(K)60805130 |
7.5 |
4.5 |
12.5 |
5.0 |
222 |
0.0022 |
PEI222J(K)60905130 |
8.5 |
5.0 |
13.0 |
5.0 |
272 |
0.0027 |
PEI272J(K)60905140 |
9.0 |
5.0 |
13.5 |
5.0 |
332 |
0.0033 |
PEI332J(K)60905140 |
9.0 |
5.0 |
13.5 |
5.0 |
392 |
0.0039 |
PEI392J(K)60905140 |
9.0 |
5.0 |
13.5 |
5.0 |
472 |
0.0047 |
PEI472J(K)61006140 |
10.0 |
5.5 |
14.0 |
7.0 |
562 |
0.0056 |
PEI562J(K)61006150 |
10.0 |
6.0 |
15.0 |
7.0 |
682 |
0.0068 |
PEI682J(K)61106150 |
11.0 |
6.0 |
15.0 |
7.0 |
822 |
0.0082 |
PEI822J(K)61107150 |
11.0 |
6.5 |
15.0 |
7.0 |
103 |
0.01 |
PEI103J(K)61108160 |
11.0 |
7.5 |
15.5 |
7.0 |
123 |
0.012 |
PEI123J(K)61108160 |
11.0 |
7.5 |
15.5 |
7.0 |
153 |
0.015 |
PEI153J(K)61408180 |
13.5 |
8.0 |
18.0 |
9.0 |
183 |
0.018 |
PEI183J(K)61408180 |
13.5 |
8.0 |
18.0 |
9.0 |
223 |
0.022 |
PEI223J(K)61509190 |
14.5 |
8.5 |
18.5 |
9.0 |
273 |
0.027 |
PEI273J(K)61509190 |
14.5 |
8.5 |
18.5 |
9.0 |
333 |
0.033 |
PEI333J(K)61509190 |
15.0 |
9.0 |
19.0 |
9.5 |
393 |
0.039 |
PEI393J(K)61509190 |
15.0 |
9.0 |
19.0 |
9.5 |
473 |
0.047 |
PEI473J(K)61509190 |
15.0 |
9.0 |
19.0 |
9.5 |
1000V |
||||||
102 |
0.001 |
PEI102J(K)A0604120 |
5.5 |
3.5 |
11.5 |
4.0 |
122 |
0.0012 |
PEI122J(K)A0604120 |
5.5 |
3.5 |
11.5 |
4.0 |
152 |
0.0015 |
PEI152J(K)A0604120 |
5.5 |
3.5 |
11.5 |
4.0 |
182 |
0.0018 |
PEI182J(K)A0604120 |
5.5 |
3.5 |
11.5 |
4.0 |
222 |
0.0022 |
PEI222J(K)A0604120 |
6.0 |
3.5 |
11.5 |
4.0 |
272 |
0.0027 |
PEI272J(K)A0604130 |
7.0 |
4.0 |
12.5 |
5.0 |
332 |
0.0033 |
PEI332J(K)A0704130 |
7.0 |
4.0 |
12.5 |
5.0 |
392 |
0.0039 |
PEI392J(K)A0806140 |
8.0 |
5.5 |
13.5 |
5.5 |
472 |
0.0047 |
PEI472J(K)A0806140 |
8.0 |
5.5 |
13.5 |
5.5 |
562 |
0.0056 |
PEI562J(K)A0806150 |
8.0 |
6.0 |
14.5 |
5.5 |
682 |
0.0068 |
PEI682J(K)A09006150 |
9.0 |
5.5 |
14.5 |
5.5 |
822 |
0.0082 |
PEI822J(K)A0906150 |
9.0 |
5.5 |
15.0 |
5.5 |
103 |
0.01 |
PEI103J(K)A1208190 |
11.5 |
7.5 |
18.5 |
7.5 |
说明：
以上规格仅供参考；具体以承认书为准；使用时涉及到和极限参数有关问题请和塑镕联系。
