GB10188 (IEC384-13)
■结构
介质：聚丙烯膜。
电极：铝箔。
封装：阻燃环氧树脂，符合UL94 V-0。
引脚：铜包钢镀锡线（CP线）或铜线。
■ 典型应用
高频、直流、及脉冲大电流场合。
如：灯具，监视设备、电源等。
■ 特点
体积小，重量轻.
高频损耗小，温升低。高冲击强度。
■ 技术参数
气候条件 |
-40--+85℃ |
||||||
额定电压Vdc |
250V、400V、630V、1000V |
||||||
容量范围 |
0.001μF-0.47μF |
||||||
容量偏差 |
±5%? ±10% |
||||||
直流试验电压 |
2.0UR （5S） |
||||||
绝缘电阻 |
≤0.33μF |
≥30000MΩ |
|||||
＞0.33μF |
≥10000S（MΩ. μF） |
||||||
损耗角正切 |
≤0.0008?? 10kHz?? 20℃ |
||||||
稳态湿热 |
温度：40±2℃ |
||||||
耐久性 |
+85℃，1000h |
||||||
dv/dt（v/μs） |
脚距 |
10 |
15 |
22.5 |
27.5 |
31 |
|
dv/dt |
1500 |
800 |
500 |
300 |
100 |
||
■ 交流和直流电压的对应关系
直流电压 |
100VDC |
250VDC |
400VDC |
630VDC |
1000VDC |
交流电压 |
63VAC |
160VAC |
200VAC |
250VAC |
250VAC |
■ 交流耐压与频率的关系
■外形尺寸
脚距mm |
10 |
15 |
22.5 |
27.5 |
31 |
引线直径mm |
0.6 |
0.6/0.8 |
0.8 |
0.8 |
0.8 |

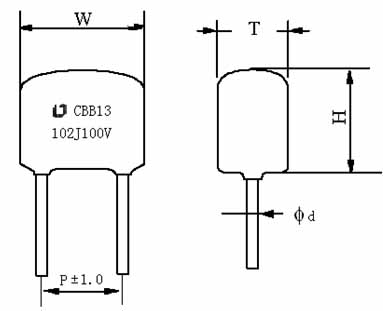

■ 结构图
■ 特性曲线图
- ?

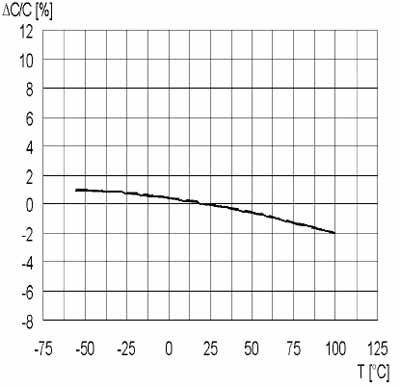

容量与温度特性曲线

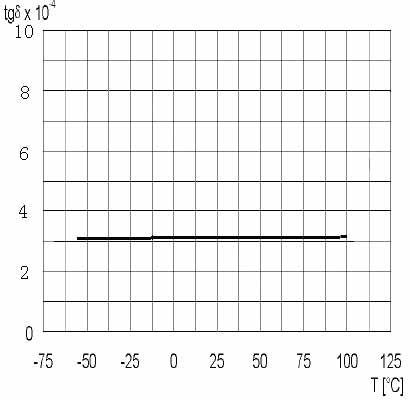

损耗角正切与温度特性曲线

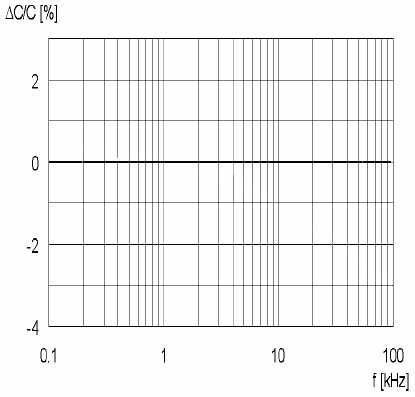

容量与频率特性曲线

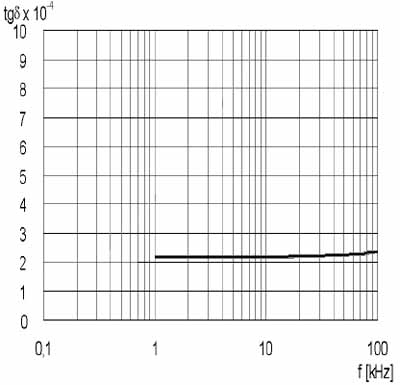

损耗角正切与频率特性曲线

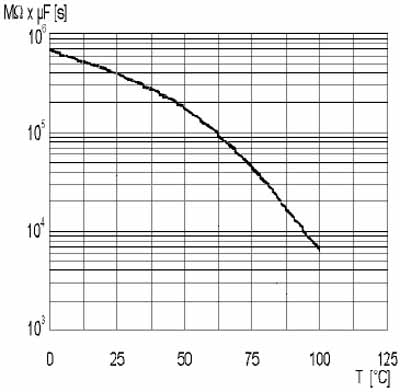

绝缘电阻与温度特性曲线

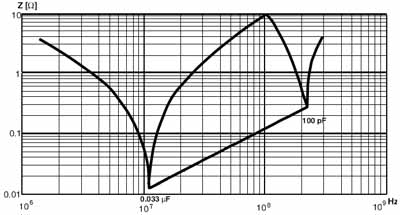

阻抗与频率特性曲线
CBB13（PPN）
产品规格 |
产品编码 |
外形尺寸（mm） |
|||
容量 μF |
Wmax |
T max |
H max |
P±1.0 |
|
250VDC |
||||||
102 |
0.0010 |
PPN102J(K)21206100 |
12.0 |
5.5 |
9.5 |
8.5 |
122 |
0.0012 |
PPN122J(K)21206100 |
12.0 |
5.5 |
9.5 |
8.5 |
152 |
0.0015 |
PPN152J(K)21206100 |
12.0 |
5.5 |
9.5 |
8.5 |
182 |
0.0018 |
PPN182J(K)21206100 |
12.0 |
5.5 |
9.5 |
8.5 |
222 |
0.0022 |
PPN222J(K)21206100 |
12.0 |
5.5 |
9.5 |
8.5 |
332 |
0.0033 |
PPN332J(K)21207100 |
12.0 |
6.5 |
10.0 |
8.5 |
392 |
0.0039 |
PPN392J(K)21207100 |
12.0 |
6.5 |
10.0 |
8.5 |
472 |
0.0047 |
PPN472J(K)21207100 |
12.0 |
6.5 |
10.0 |
8.5 |
562 |
0.0056 |
PPN562J(K)21207110 |
12.0 |
7.0 |
11.0 |
8.5 |
682 |
0.0068 |
PPN682J(K)21207110 |
12.0 |
7.0 |
11.0 |
8.5 |
822 |
0.0082 |
PPN822J(K)21407120 |
14.0 |
7.0 |
11.5 |
10.0 |
103 |
0.010 |
PPN103J(K)21407120 |
14.0 |
7.0 |
11.5 |
10.0 |
123 |
0.012 |
PPN123J(K)21806120 |
18.0 |
6.0 |
11.5 |
14.0 |
153 |
0.015 |
PPN153J(K)21806120 |
18.0 |
6.0 |
11.5 |
14.0 |
183 |
0.018 |
PPN183J(K)21806120 |
18.0 |
6.5 |
11.5 |
14.0 |
223 |
0.022 |
PPN223J(K)21807120 |
18.0 |
7.0 |
12.0 |
14.0 |
273 |
0.027 |
PPN273J(K)21807140 |
18.0 |
7.0 |
13.5 |
14.0 |
333 |
0.033 |
PPN333J(K)21808140 |
18.0 |
7.5 |
14.0 |
14.0 |
393 |
0.039 |
PPN393J(K)21808150 |
18.0 |
8.0 |
14.5 |
14.0 |
473 |
0.047 |
PPN473J(K)21809160 |
18.0 |
8.5 |
15.5 |
14.0 |
563 |
0.056 |
PPN563J(K)2308170 |
22.5 |
8.0 |
16.5 |
19.0 |
683 |
0.068 |
PPN683J(K)2309170 |
22.5 |
8.5 |
17.0 |
19.0 |
823 |
0.082 |
PPN823J(K)2309180 |
22.5 |
9.0 |
17.5 |
19.0 |
104 |
0.10 |
PPN104J(K)2310180 |
22.5 |
10.0 |
18.0 |
19.0 |
124 |
0.12 |
PPN124J(K)2511210 |
25.0 |
11.0 |
21.0 |
21.0 |
154 |
0.15 |
PPN154J(K)2511210 |
25.0 |
11.0 |
21.0 |
21.0 |
184 |
0.18 |
PPN184J(K)2911230 |
29.0 |
11.0 |
23.0 |
25.0 |
224 |
0.22 |
PPN224J(K)2911230 |
29.0 |
11.0 |
23.0 |
25.0 |
274 |
0.27 |
PPN274J(K)2913250 |
29.0 |
13.0 |
25.0 |
25.0 |
334 |
0.33 |
PPN334J(K)2915260 |
30.0 |
15.0 |
26.0 |
25.0 |
394 |
0.39 |
PPN394J(K)2917280 |
30.0 |
17.0 |
28.0 |
25.0 |
474 |
0.47 |
PPN474J(K)2918290 |
30.0 |
18.0 |
29.0 |
25.0 |
400VD |
||||||
102 |
0.001 |
PPN102J(K)41406100 |
13.5 |
6.0 |
10.0 |
10.0 |
122 |
0.0012 |
PPN122J(K)41406100 |
13.5 |
6.0 |
10.0 |
10.0 |
152 |
0.0015 |
PPN152J(K)41406100 |
13.5 |
6.0 |
10.0 |
10.0 |
182 |
0.0018 |
PPN182J(K)41406100 |
13.5 |
6.0 |
10.0 |
10.0 |
222 |
0.0022 |
PPN222J(K)41406100 |
13.5 |
6.0 |
10.0 |
10.0 |
272 |
0.0027 |
PPN272J(K)41406100 |
13.5 |
6.0 |
10.0 |
10.0 |
332 |
0.0033 |
PPN332J(K)41406100 |
13.5 |
6.0 |
10.0 |
10.0 |
392 |
0.0039 |
PPN392J(K)41506120 |
15.0 |
6.0 |
11.5 |
11.0 |
472 |
0.0047 |
PPN472J(K)41506120 |
15.0 |
6.0 |
11.5 |
11.0 |
562 |
0.0056 |
PPN562J(K)41507120 |
15.0 |
7.0 |
12.0 |
11.0 |
682 |
0.0068 |
PPN682J(K)41507120 |
15.0 |
7.0 |
12.0 |
11.0 |
822 |
0.0082 |
PPN822J(K)41508130 |
15.0 |
8.0 |
13.0 |
11.0 |
103 |
0.010 |
PPN103J(K)41508130 |
15.0 |
8.0 |
13.0 |
11.0 |
123 |
0.012 |
PPN123J(K)41807130 |
18.0 |
7.0 |
12.5 |
14.0 |
153 |
0.015 |
PPN153J(K)41807130 |
18.0 |
7.0 |
12.5 |
14.0 |
183 |
0.018 |
PPN183J(K)41808130 |
18.0 |
7.5 |
12.5 |
14.0 |
223 |
0.022 |
PPN223J(K)41808140 |
18.0 |
8.0 |
13.5 |
14.0 |
273 |
0.027 |
PPN273J(K)41808150 |
18.0 |
8.0 |
15.0 |
14.0 |
333 |
0.033 |
PPN333J(K)42308150 |
22.5 |
8.0 |
15.0 |
19.0 |
393 |
0.039 |
PPN393J(K)42309160 |
22.5 |
8.5 |
15.5 |
19.0 |
473 |
0.047 |
PPN473J(K)42309160 |
22.5 |
9.0 |
16.0 |
19.0 |
563 |
0.056 |
PPN563J(K)42309170 |
22.5 |
9.0 |
17.0 |
19.0 |
683 |
0.068 |
PPN683J(K)42310190 |
22.5 |
10.0 |
18.5 |
19.0 |
823 |
0.082 |
PPN823J(K)42311190 |
22.5 |
11.0 |
19.0 |
19.0 |
104 |
0.10 |
PPN104J(K)42910180 |
29.0 |
10.0 |
18.0 |
24.0 |
124 |
0.12 |
PPN124J(K)4291310 |
29.0 |
13.0 |
21.0 |
24.0 |
154 |
0.15 |
PPN154J(K)4291310 |
29.0 |
13.0 |
21.0 |
24.0 |
184 |
0.18 |
PPN184J(K)43014250 |
30.0 |
13.5 |
25.0 |
25.0 |
224 |
0.22 |
PPN224J(K)43014250 |
30.0 |
13.5 |
25.0 |
25.0 |
274 |
0.27 |
PPN274J(K)43114260 |
31.0 |
14.0 |
26.0 |
26.0 |
334 |
0.33 |
PPN334J(K)43115270 |
31.0 |
15.0 |
27.0 |
26.0 |
394 |
0.39 |
PPN394J(K)43117290 |
31.0 |
17.0 |
29.0 |
26.0 |
474 |
0.47 |
PPN474J(K)43220300 |
32.0 |
20.0 |
30.0 |
26.0 |
630VDC |
||||||
102 |
0.001 |
PPN102J(K)61506100 |
14.5 |
6.0 |
10.0 |
11.0 |
122 |
0.0012 |
PPN122J(K)61506100 |
14.5 |
6.0 |
10.0 |
11.0 |
152 |
0.0015 |
PPN152J(K)61507110 |
14.5 |
6.5 |
11.0 |
11.0 |
182 |
0.0018 |
PPN182J(K)61507110 |
14.5 |
6.5 |
11.0 |
11.0 |
222 |
0.0022 |
PPN222J(K)61507110 |
14.5 |
6.5 |
11.0 |
11.0 |
272 |
0.0027 |
PPN272J(K)61508120 |
14.5 |
7.5 |
12.0 |
11.0 |
332 |
0.0033 |
PPN332J(K)61508120 |
14.5 |
7.5 |
12.0 |
11.0 |
392 |
0.0039 |
PPN392J(K)61509130 |
14.5 |
8.5 |
13.0 |
11.0 |
472 |
0.0047 |
PPN472J(K)61509130 |
14.5 |
8.5 |
13.0 |
11.0 |
562 |
0.0056 |
PPN562J(K)61807130 |
18.0 |
7.0 |
12.5 |
14.0 |
682 |
0.0068 |
PPN682J(K)61807130 |
18.0 |
7.0 |
12.5 |
14.0 |
822 |
0.0082 |
PPN822J(K)61808150 |
18.0 |
7.5 |
14.5 |
14.0 |
103 |
0.010 |
PPN103J(K)61808150 |
18.0 |
7.5 |
14.5 |
14.0 |
123 |
0.012 |
PPN123J(K)62308150 |
22.5 |
8.0 |
15.0 |
19.0 |
153 |
0.015 |
PPN153J(K)62308150 |
22.5 |
8.0 |
15.0 |
19.0 |
183 |
0.018 |
PPN183J(K)62309160 |
22.5 |
8.5 |
15.5 |
19.0 |
223 |
0.022 |
PPN223J(K)62309160 |
22.5 |
9.0 |
16.0 |
19.0 |
273 |
0.027 |
PPN273J(K)62310180 |
22.5 |
9.5 |
17.5 |
19.0 |
333 |
0.033 |
PPN333J(K)62310190 |
22.5 |
10.0 |
18.5 |
19.0 |
393 |
0.039 |
PPN393J(K)62311190 |
22.5 |
11.0 |
19.0 |
19.0 |
473 |
0.047 |
PPN473J(K)62312200 |
22.5 |
11.5 |
20.0 |
19.0 |
563 |
0.056 |
PPN563J(K)62911190 |
29.0 |
11.0 |
19.0 |
24.0 |
683 |
0.068 |
PPN683J(K)62912200 |
29.0 |
12.0 |
20.0 |
24.0 |
823 |
0.082 |
PPN823J(K)62912220 |
29.0 |
12.0 |
22.0 |
24.0 |
104 |
0.10 |
PPN104J(K)62914230 |
29.0 |
13.5 |
23.0 |
24.0 |
1000VDC |
||||||
102 |
0.001 |
PPN102J(K)A1506100 |
14.5 |
6.0 |
10.0 |
11.0 |
122 |
0.0012 |
PPN122J(K)A1506100 |
14.5 |
6.0 |
10.0 |
11.0 |
152 |
0.0015 |
PPN152J(K)A1506100 |
14.5 |
6.0 |
10.0 |
11.0 |
182 |
0.0018 |
PPN182J(K)A1607120 |
16.0 |
6.5 |
11.5 |
12.5 |
222 |
0.0022 |
PPN222J(K)A1607120 |
16.0 |
6.5 |
11.5 |
12.5 |
272 |
0.0027 |
PPN272J(K)A1608120 |
16.0 |
7.5 |
12.0 |
12.5 |
332 |
0.0033 |
PPN332J(K)A1608120 |
16.0 |
7.5 |
12.0 |
12.5 |
392 |
0.0039 |
PPN392J(K)A1608130 |
18.0 |
7.5 |
13.0 |
14.0 |
472 |
0.0047 |
PPN472J(K)A1808130 |
18.0 |
7.5 |
13.0 |
14.0 |
562 |
0.0056 |
PPN562J(K)A1808150 |
18.0 |
8.0 |
15.0 |
15.0 |
682 |
0.0068 |
PPN682J(K)A1808150 |
18.0 |
8.0 |
15.0 |
15.0 |
822 |
0.0082 |
PPN822J(K)A2309160 |
22.5 |
8.5 |
15.5 |
19.0 |
103 |
0.010 |
PPN103J(K)A2309160 |
22.5 |
8.5 |
15.5 |
19.0 |
123 |
0.012 |
PPN123J(K)A2310170 |
22.5 |
10.0 |
16.5 |
19.0 |
153 |
0.015 |
PPN153J(K)A2310170 |
22.5 |
10.0 |
16.5 |
19.0 |
183 |
0.018 |
PPN183J(K)A2310170 |
22.5 |
10.0 |
18.5 |
19.0 |
223 |
0.022 |
PPN223J(K)A2312190 |
22.5 |
11.5 |
19.0 |
19.0 |
273 |
0.027 |
PPN273J(K)A2312200 |
22.5 |
12.0 |
20.0 |
19.0 |
333 |
0.033 |
PPN333J(K)A2911200 |
29.0 |
11.0 |
19.5 |
24.0 |
393 |
0.039 |
PPN393J(K)A2912200 |
29.0 |
12.0 |
20.0 |
24.0 |
473 |
0.047 |
PPN473J(K)A2913210 |
29.0 |
13.0 |
21.0 |
24.0 |
563 |
0.056 |
PPN563J(K)A2914220 |
29.0 |
14.0 |
22.0 |
24.0 |
683 |
0.068 |
PPN683J(K)A2915240 |
29.0 |
15.0 |
23.5 |
24.0 |
823 |
0.082 |
PPN823J(K)A3414240 |
34.0 |
14.0 |
24.0 |
29.0 |
104 |
0.10 |
PPN104J(K)A3415250 |
34.0 |
15.0 |
25.0 |
29.0 |
说明：以上规格仅供参考；具体以承认书为准；使用时涉及到和极限参数有关问题请和塑镕联系。
